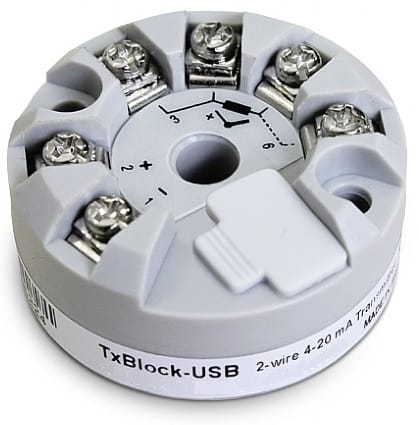

The Novus TxBlock USB is a head-mounted temperature transmitter known for its versatility and simple configuration. Its universal input accepts a wide range of temperature sensors, including various RTDs (PT100, PT1000, NTC) and thermocouples (Type J, K, T, E, N, R, S, B), as well as mV signals. The standout feature is the built-in micro-USB port, which allows for direct connection to a PC or smartphone for quick and easy programming without the need for a proprietary interface. This reduces commissioning time and simplifies maintenance, while its robust design ensures reliable 4-20mA output.
The TxBlock-USB is a compact and highly versatile head mounted temperature transmitter that stands out for its unique, user-friendly configuration method. It’s a loop-powered, 2-wire device designed for signal conversion from a wide range of industrial sensors into a standard 4-20mA output. Its core strengths lie in its universal input capabilities and the simplicity of its setup, which make it an excellent choice for a variety of applications and for simplifying spare parts inventory.
| Sensor Input | Sensor Type | Measurement Range | |
| Thermocouple K | -150 to 1,370°C (-238 to 2498F) | ||
| Thermocouple J | -100 to 760°C (-148 to 1400F) | ||
| Thermocouple R | -50 to 1,760°C (-58 to 3200F) | ||
| Thermocouple S | -50 to 1,760°C (-58 to 3200F) | ||
| Thermocouple T | -160 to 400°C (-256 to 752F) | ||
| Thermocouple N | -270 to 1,300°C (-454 to 2375F) | ||
| Thermocouple E | -90 to 720°C (-130 to 1328F) | ||
| Thermocouple B | 500 to 1,820°C (932 to 3308F) | ||
| PT100 (2, 3, 4-wire and 4-wire) | -200 to 650°C (-328 to 1202F) | ||
| PT1000 (3-wire) | -200 to 650°C (-328 to 1202F) | ||
| NTC (2-wire) | -30 to 120°C (-22 to 248F) | ||
| MilliVolt | 0 to 50mV | ||
| Temperature Unit | °C or °F, software selectable | ||
| Accuracy | Sensor Type | Typical | Minimum |
| PT100/PT1000 (-150 to 400°C) or (-238 to 752F) | 0.10% | 0.12% | |
| PT100/PT1000 (Full Range) | 0.13% | 0.19% | |
| Thermocouple Type K, J, T, E, N, R, S, B | 0.1% ±1°C (±1.8°F) | 0.15% ±1°C (±1°F) | |
| MV | 0.1% | 0.15% | |
| NTC | 0.3% | 0.7% | |
| Measurement Compensation | Thermocouple: Cold junction compensation Pt1000: Cable compensation for 2-wire, 3-wire and 4-wire Pt100: Cable compensation for 2-wire and 3-wire |
||
| Output | Output Signal: Linearised 4-20 or 20-4mA current, 2 wire Resolution: 2µA |
||
| Temperature Effect | ±0.16% / 25°C (77 °F) | ||
| Response Time | Typical 1.6 sec | ||
| Power Supply | 10 to 35vDC | ||
| Operating Conditions | Temperature: -40 to 85°C (-40 to 185F) Humidity: 0 to 90% RH |
||
| Approvals / Standards | CE NAMUR NE43 compliant RoHS compliant EN 61326-1:2006 conformity |
||
| Protection | Internal protection against reverse polarity | ||
| Isolation | No electrical isolation between input and output | ||
| Dimensions | 43.5mm (diameter) x 20.5mm (height) | 1.71 in (diameter) x 0.80 in (height) | ||
| Wire Cross Section | 0.14 to 1.5mm² (26 AWG to 15 AWG) | ||
| Housing Material | ABS UL94-HB (standard impact strength, flaming resistance and antistatic) | ||
| Mounting | DIN form B sensor head | ||
| Interface Communication | USB micro-B type, with silicon cover protection | ||
| Configuration | SigNow for Windows SigNow for Android |
||
8806000410
£38.42
