Description

The TV-4076 Tinyview 2 is a temperature data logger with a display. The TV-4076 features and integral stainless steel stab probe that can be used for taking product core temperatures. This logger is ideal for monitoring products in chilled storage, or products during production. Helping ensure products do not exceed safe temperature ranges.

Features

• Temperature data logger with display
• LCD display of current readings
• 30,000 reading capacity
• High Accuracy
• High Reading Resolution
• Fast Data Offload
• 2 user-programmable alarms
• Low battery monitor
• User-replaceable battery

Popular Applications

• Product Production and Storage
• Product Core Temperatures

Logger Specifications		Sensor Specifications
Total Reading Capacity:	30,000 Readings	Sensor Type:	Integral 10K NTC Thermistor Stab Probe
Memory Type:	Non-Volatile	Measuring Range:	-30 to 50°C (-30 to +122°F)
Display:	4 digits + indicators	Logger Resolution:	0.02°C or better
Display Modes:	°C or °F	Display Resolution:	0.1°C

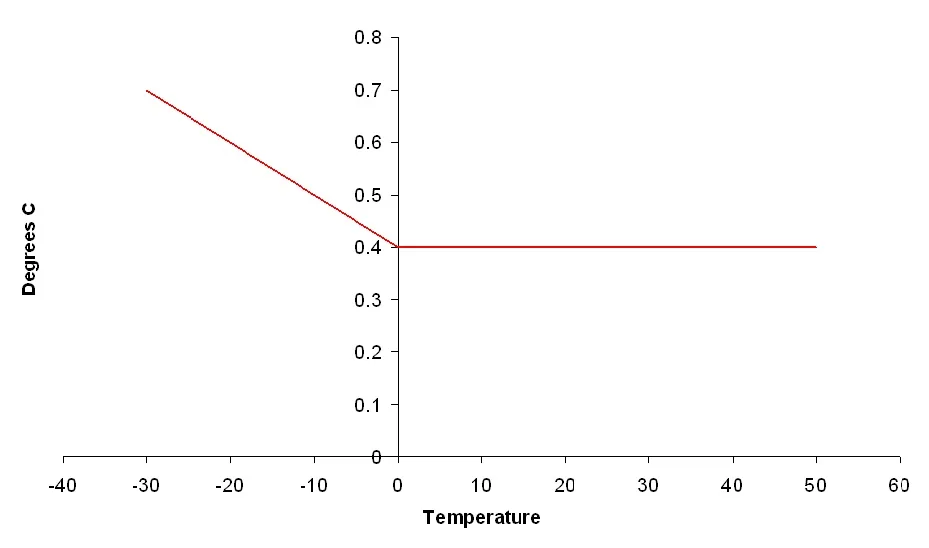

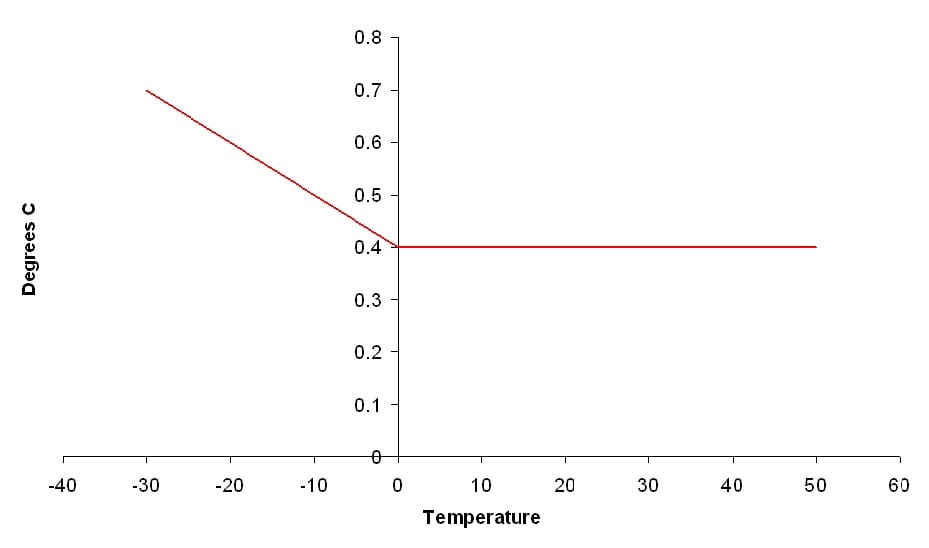

Display Refresh Rate:	Every 2 seconds	Logger Accuracy:
Trigger Start:	Magnetic Switch
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-30 to +70°C
IP Rating:	IP65 (Splashproof)
Case Dimension (LxWxD):	150 x 77 x 35mm, 60mm diameter
Weight:	95g

The TV-4076 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
