Description

The TV-4050 Tinyview 2 is a reliable temperature data logger with integral temperature sensor and display. Ideal for monitoring room temperatures in offices, cold rooms, museum exhibits, or any other area that needs a simple temperature logger with display.

Features

• Temperature data logger with display
• LCD display of current readings
• 30,000 reading capacity
• High Accuracy
• High Reading Resolution
• Fast Data Offload
• Splash-proof case
• Low battery monitor
• User-replaceable battery

Popular Applications

• Chill cabinets and fridges
• Building condition monitoring
• Environmental monitoring
• Pharmaceutical storage

Physical Specifications		Sensor Specifications
Total Reading Capacity:	30,000 Readings	Sensor Type:	Internal 10K NTC Thermistor Probe
Memory Type:	Non-Volatile	Measuring Range:	-30 to 50°C (-22 to +122°F)
Display:	4 digits + indicators	Logger Resolution:	0.02°C or better
Display Modes:	°C or °F	Display Resolution:	0.1°C

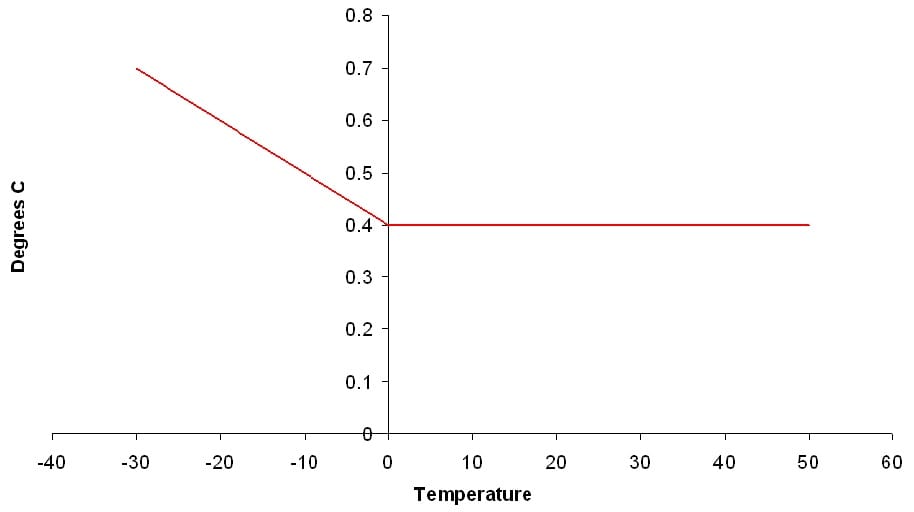

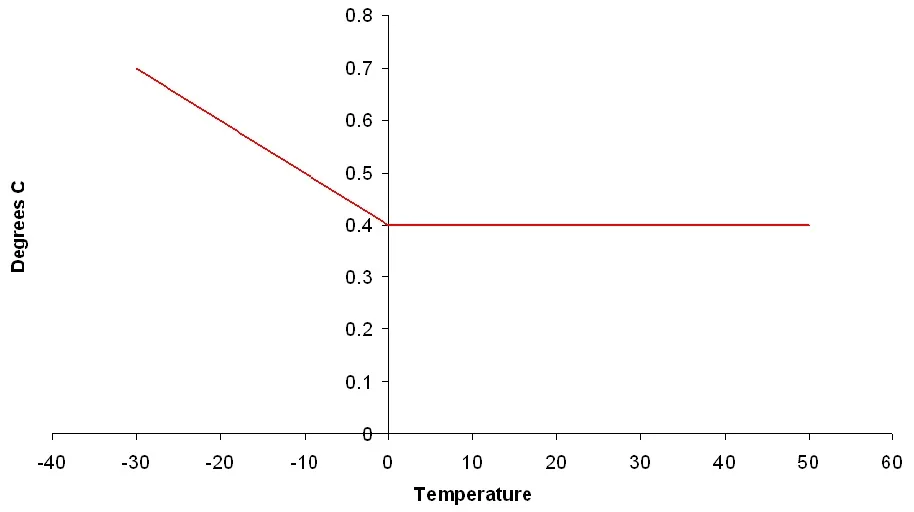

Display Refresh Rate:	Every 2 seconds	Logger Accuracy:
Trigger Start:	Magnetic Switch
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Reading Types:	Actual, Min, Max
Logging Interval:	1 sec to 10 days
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-30 to +70°C
IP Rating:	IP65 (Splashproof)
Case Dimension (LxWxD):	90 x 65 x 35mm, 60mm diameter.
Weight:	85g

The TV-4050 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
