Description
Features
- PT100 sensing element

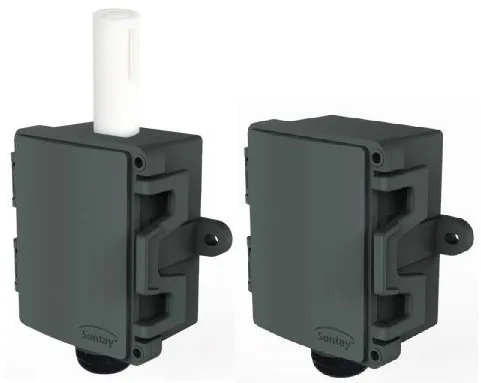

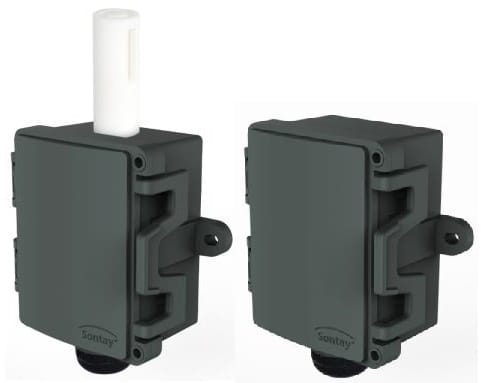

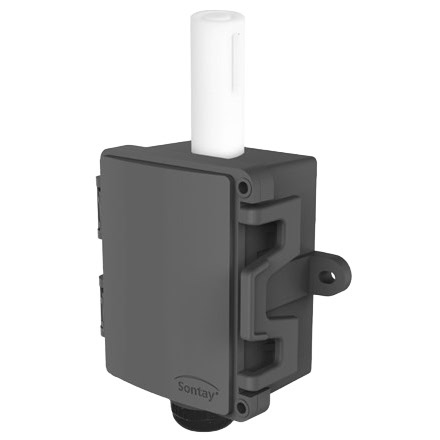

- TT-OR version includes a PTFE radiation shield to minimise the effects of direct sunlight
- Pre-set temperature ranges -10 to +40, -10 to +110°C, plus option for Custom range.
- Jumper selectable 4-20mA or 0-10Voutputs
- 24vDC power supply.
- Weatherproof housing, IP65
Specifications
| Output types: | Current: 4-20mA Voltage: 0-10vDC |
| Housing material: | PC/GF (Halogen Free, Flame Retardant & UV Stabilized |
| Dimensions: | 80 x 79 x 44mm |
| PTFE Shield: | 40 x 16mm diameter |
| Ambient range: | -30 to +70°C |
| Protection: | IP65 |
| Weight: | 160g |

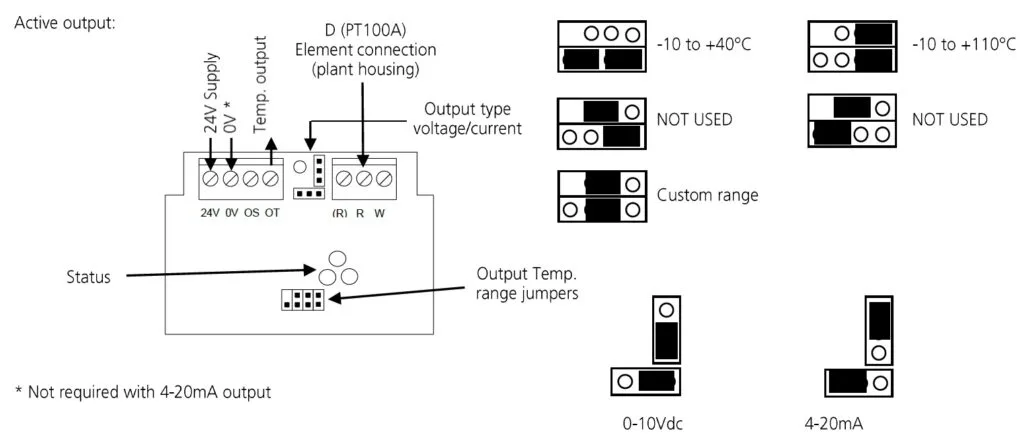

Connection Diagram:

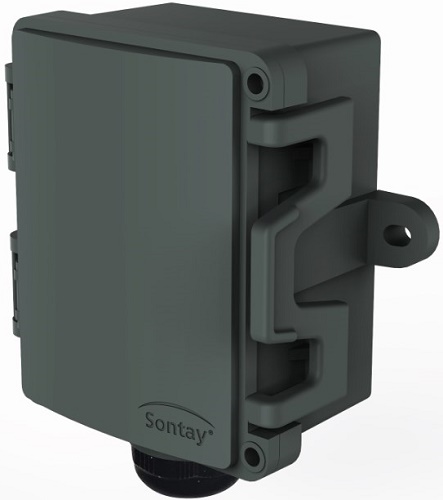

Note: The TT-OR sensor has a radiation shield that will minimise error gains from direct sunlight. However, the TT-O sensor should be mounted on a North facing wall, ensuring the sensor is away from direct sunlight to prevent incorrect readings.
