Description

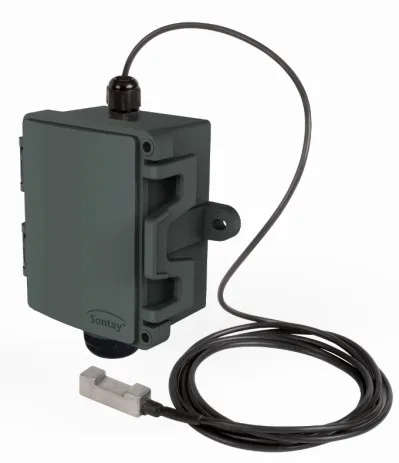

TT-C-D-5M Clamp-on Temperature Sensors are designed for pipe systems to measure liquid temperature when an immersion sensor isn’t feasible. The sensing element is enclosed in a specially shaped, die-cast zinc probe for optimal surface contact with the pipe. Each unit includes 5 meters of PTFE cable to connect the probe to its housing and contains a passive PT100 sensing element.
Features
- PT100 sensing element types
- Shaped die-cast Zinc probe
- Enables temperature sensing in pipe work systems where immersion sensors are not practical
- Weatherproof IP65 housing with hinged lid
Specifications
| Sensing Element: | PT100A | |
| Housing material: | PC/GF (Halogen free, flame retardant & UV stablised housing | |
| Dimensions: | 80 x 79 x 44mm | |
| Cable length: | 5 metre (standard) | |
| Ambient range: | –30 to +70°C | |
| Protection: | IP65 | |
| Weight: | 200g | |
If you need a different sensing element, please contact us directly for pricing.
