TT-C-CVO Strap-on Temperature Sensor

The TT-C range of temperature sensors are used on pipe work system to detect liquid temperature where fitting an immersion sensor is not practical. Units are available with a PT100 temperature sensor housed in a die-cast Zinc probe with two metres of PTFE cable as standard connecting the probe to an IP65 housing for termination. The unit uses a nominal 24vDC power supply to provide an active 0-10V or 4-20mA output option with 2 pre-set temperature ranges (selectable via jumpers). A customised third pre-set temperature range is available on the TT-C-CVO-C unit. This unit replaces the previous generation TT-351-CVO.

Need help finding the right product?

Downloads

Description

Description

Features

PT100 sensing element
Shaped die-cast Zinc probe
2 Pre-set temperature ranges, plus custom 3 available
Jumper selectable 0-10V or 4-20mA outputs
Optional potted version for chilled water applications
24vDC power supply.
Weatherproof housing, IP65

Specifications

Output types:	Current: 4-20mA Voltage: 0-10vDC
Housing material:	PC/GF (Halogen free, flame retardant & UV stablised housing
Dimensions:	80 x 79 x 44mm
Cable length:	2 metre (standard)
Ambient range:	–30 to +70°C
Protection:	IP65
Weight:	200g

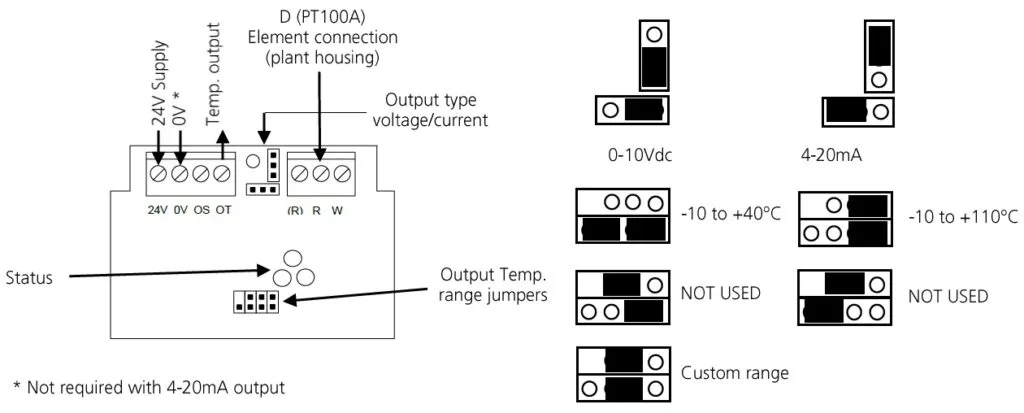

Connection Diagram:

Product

Ref

Price

Product Description

TT-C-CVO

£72.79

TT-C-CVO Clamp-on Temperature sensor with IP65 housing. PT100A Sensing element fitted into a shaped die-cast Zinc probe with 2m PTFE cable back to housing. Housing is a grey PC/GF (Halogen free, flame retardant & UV stablised) housing. Dimensions: 80 x 79 x 44mm. CVO – Selectable 4-20mA or 0-10vDC output options with 2 pre-set selectable temperature ranges (-10 to +40°C or -10 to +110°C). Power supply 24vDC (Nominal). Replaces the TT-351-CVO with White housing.

TT-C-CVO-C

£87.76

TT-C-CVO-C Clamp-on Temperature sensor with IP65 housing. PT100A Sensing element fitted into a shaped die-cast Zinc probe with 2m PTFE cable back to housing. Housing is a grey PC/GF (Halogen free, flame retardant & UV stablised) housing. Dimensions: 80 x 79 x 44mm. CVO – Selectable 4-20mA or 0-10vDC output options with 2 pre-set selectable temperature ranges (-10 to +40°C or -10 to +110°C). Power supply 24vDC (Nominal). C – 3 pre-set selectable temperature ranges (-10 to +40°C, -10 to +110°C or a custom range from -40 to +400°C). Replaces the TT-351-CVO-C with White housing.
