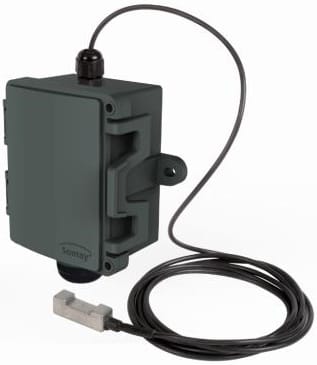

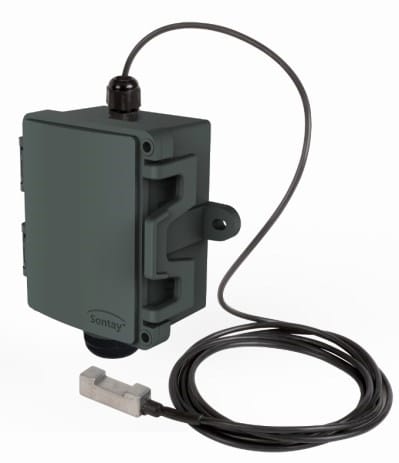

The TT-C range of temperature sensors are used on pipe work system to detect liquid temperature where fitting an immersion sensor is not practical. Units are available with a various different temperature sensor in a die-cast Zinc probe with two metres of PTFE cable as standard connecting the probe to an IP65 housing for termination. Sensor options include various thermistors and RTDs, including PT100 and PT1000’s. Unit are also available with an active output. TT-C-CVO units require a nominal 24vDC power supply and will provide an active 0-10V or 4-20mA output option with 2 pre-set temperature ranges (selectable via jumpers). A customised third pre-set temperature range is available on the TT-C-CVO-C unit. This unit replaces the previous generation TT-351-CVO.
| Sensing Element: | 10K3A1 Thermistor, PT100A, PT1000A, NI1000, etc. | |
| TT-C-CVO Outputs: | Current: 4-20mA Voltage: 0-10vDC |
|
| Housing material: | PC/GF (Halogen free, flame retardant & UV stablised housing | |
| Dimensions: | 80 x 79 x 44mm | |
| Cable length: | 2 metre (standard) | |
| Ambient range: | –30 to +70°C | |
| Protection: | IP65 | |
| Weight: | 200g | |
Connection Diagram (for TT-C-CVO Version):
TT-C-CVO
£72.79
TT-C-D
£21.03
TT-C-D-5M
£23.77
TT-C-CVO-C
£87.76
