TSV300

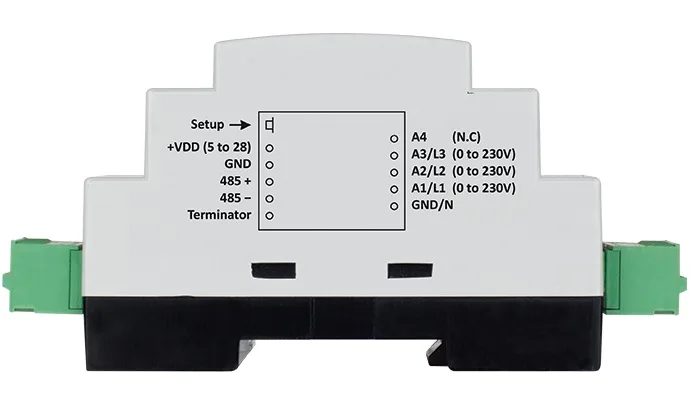

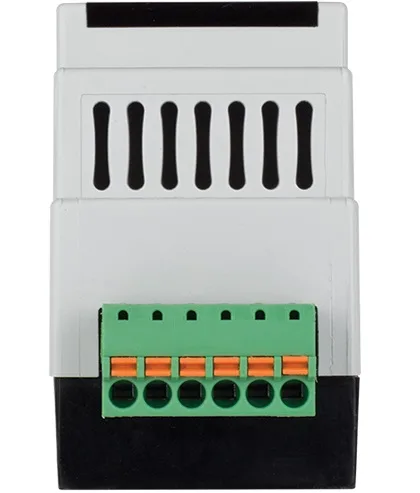

The TSV300 is a Modbus RTU Voltage Transducer Module, suitable for AC or DC voltages. Up to 63 nodes can be connected back to a Modbus Master device. It features screwless terminal blocks for both the monitoring side and Modbus Network for easy daisy-chaining on an RS485 Modbus RTU network, making it a robust solution for voltage monitoring.

£105.69

Need help finding the right product?

Downloads

TSV300 AC/DC Voltage Transducer

Description

The TSV300 AC/DC Voltage Transducer is engineered for precise true RMS measurements, offering high versatility by seamlessly accommodating both 50Hz and 60Hz AC networks. Notably, it can also be effectively utilised for DC voltage measurement and monitoring, expanding its application scope. Ensuring reliable and accurate data acquisition, the TSV300 boasts a 24-bit resolution and an accuracy surpassing 0.5%. Safety is a core feature, evident in its robust 1500Vrms working isolation voltage, which guarantees secure operation across diverse environments. Its high input resistance exceeding 2.4Mohm minimizes interference, further enhancing measurement accuracy, while DIN rail mounting simplifies integration into existing setups. The wide supply voltage range (5 to 28vDC) adds flexibility, and screwless terminals streamline the assembly process.

Adding to its adaptability, the TSV300 supports Modbus RTU communication, providing data in both 16-bit integer and 32-bit floating-point formats. This communication capability significantly enhances its compatibility with various systems and data acquisition setups. Designed to cater to a wide input AC voltage range, it covers standard voltages encountered globally. In essence, the TSV300 is a comprehensive solution for precise and adaptable AC or DC voltage measurements. Its cutting-edge technology, combined with user-friendly features like easy integration and robust safety measures, makes it an ideal choice for diverse applications where accuracy, safety, and ease of use are paramount, ensuring reliable voltage measurements for your specific needs.

Features

  • 24-bit resolution
  • 1500Vrms working isolation between inputs and interface
  • Low power consumption
  • Wide supply voltage range – 5 то 28vDC
  • RS485 interface carrying up to 63 nods
  • Built-in 120ohms termination resistor
  • DIN rail mounting
  • Firmware update via the interface

Applications

  • Industrial Automation: The module can play a vital role in industrial automation systems, providing accurate voltage measurements for equipment monitoring and control
  • Data Centers: TSV300 can contribute to the reliability of power distribution within data centres by providing accurate voltage measurements for critical equipment
  • HVAC (Heating, Ventilation, and Air Conditioning) Systems: It can be employed in HVAC systems to measure and control AC voltages, ensuring efficient and safe operation
  • Smart Grids: TSV300 can be integrated into smart grid systems to monitor and manage AC voltage levels, contributing to the stability and reliability of the grid

Specifications

Input Voltage Range: 0-264vAC or 0  to ±370vDC
Accuracy (Max): ±0.5%
Measurement Cyle: 400 ±80ms
Supply Voltage: 5 to 28vDC
Max Supply Current: 15mA
Dimensions: 35 x 86 x 59mm
Operating Conditions: -20 to +60°C @ 10 to 90%RH (Non-Condensing)
IP Rating: IP40 (Connections IP20)
Modbus Connection: Screwless Terminal Block
Modbus Protocol: RTU with up to 63 Nodes
