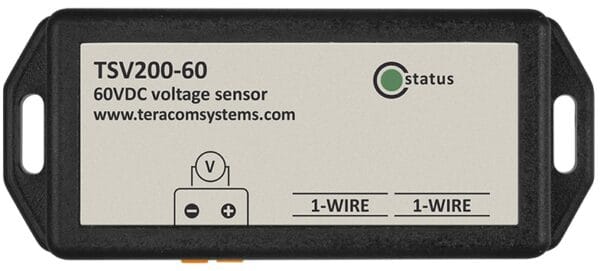

TSV200-60i 1-Wire Single Channel 60V Input Module. Operating range 0-60V with 0.1V Resolution. Powered via 1-Wire Bus @ 68mA. Isolation voltage 1000vDC. Operating conditions: 0 to +40°C @ 0-85%RH (non-condensing). Dimensions: 85 x 35.1 x 23.5mm. Supports multiple sensors on a single bus via its unique 64-bit serial code and screw less terminals.
£54.34
The TSV200-60i is a cost-effective 1-Wire voltage sensor designed for DC voltage monitoring, featuring a digital output and a galvanically isolated input. Its embedded digital signal processing, handled by a multiprocessor system, provides a calibrated digital output with 10-bit resolution. This sensor is well-suited for various power measurement applications, including telco systems (e.g., -48VDC standard), solar systems, battery monitoring and control, and industrial automation.

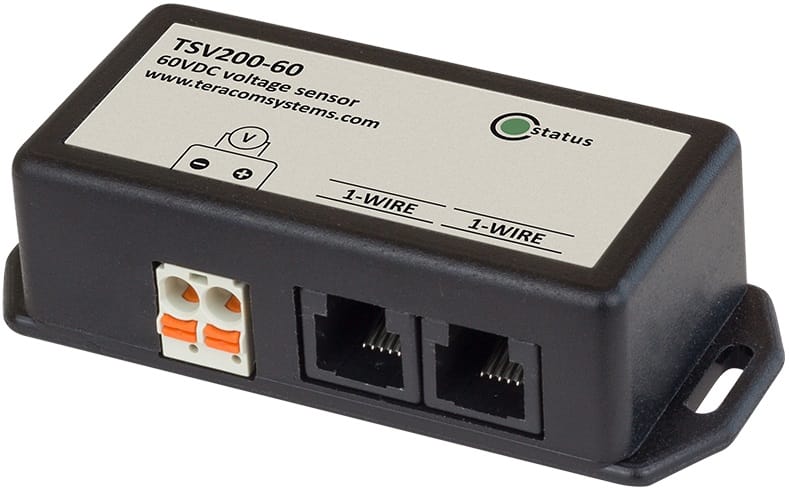

The TSV200-60i communicates via a 1-Wire bus, and each sensor is equipped with a unique 64-bit serial number, allowing multiple units to be connected on the same bus. For easy daisy-chaining in multi-sensor systems, it features two RJ11 connectors. The voltage to be measured is conveniently applied to screwless terminal blocks, simplifying installation.
| Parameter | Value |
| Supply Voltage Range (1-Wire Bus): | 4.5 to 5.5V |
| Maximum Supply Current (1-Wire Bus): | 68mA |
| Input Voltage Range: | 0 to 60V |
| Accuracy: | ±2% |
| Resolution: | 0.1V |
| Isolation Voltage: | 1000vDC |
| Ingress Protection: | IP30 |
| Operating Range: | 0 to +40°C (0-85%RH Non-Condensing) |
| Dimensions: | 85 x 35.1 x 23.5mm |
| Weight: | 65g |
| Connectors: | Two RJ-11 in parallel |
 |
Pin | Description | UTP Wire Colour |  |
| 1 | 1-Wire Ground | White/Brown | ||
| 2 | 1-Wire Ground | White/Green | ||
| 3 | 1-Wire Data | Green | ||
| 4 | 1-Wire Ground | White/Orange | ||
| 5 | 1-Wire +VDD | Orange | ||
| 6 | 1-Wire +VDD | Brown |
CabU_1m_RJ11
£6.23
CabU_3m_RJ11
£7.60
CabU_30m_RJ11
£24.68
SPL2_RJ11
£15.08
