Description

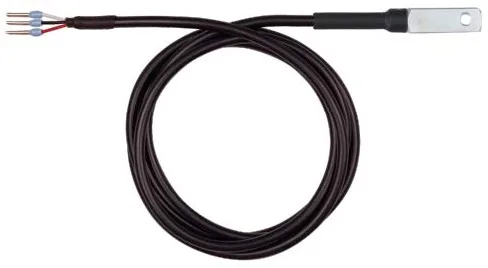

The TST100 is a 1-Wire temperature sensors designed for indoor or outdoor temperature monitoring, with an IP65 rating. Each sensor integrates a band-gap temperature sensing element with signal processing, providing a fully calibrated digital output with an accuracy as low as ±0.5°C. Leveraging a unique 64-bit serial code, multiple sensors can operate on a single 1-Wire bus. Temperatures ranging from -40 to +85°C (-40 to 185°F) and sensors come with one meter cable with soldered wires for direct connection to controller screw terminals. The TST100 has a flat aluminum head, specifically designed for affixing to an object, which ensures low thermal resistance and a fast system response.
Features
- ±0.5°C accuracy from -10 to +85°C, (±2° down to -40°C)
- 12 bits resolutions
- Aluminum head for low thermal resistance
- IP65 ingress protection
- Very low current consumption
Applications
- Server room and data centers temperature monitoring and logging
- Temperature monitoring inside buildings or machinery
- Heating, ventilation and air conditioning (HVAC) systems
- Process monitoring and control systems
Specifications
|
TST100 Sensor |
| Operating Range |
-40 to +85°C |
| Accuracy (Max) |
±0.5°C (-10 to 85°C), ±2.0°C (-40 to 85°C) |
| Resolution |
0.0625°C (12-bit set up) |
| Supply Voltage |
3 to 5.5vDC |
| Ingress Protection |
IP65 |
| Sensor Head Dimensions |
8 x 8 x 23mm |
| Cable |
1m Long Silicone cable with crimped wires |
Pinout
| Signal |
Cable Colour |
| VDD (+3 to +5.5V) |
Red or Yellow |
| Data |
White or Green |
| Ground |
Black or Brown |
