Description

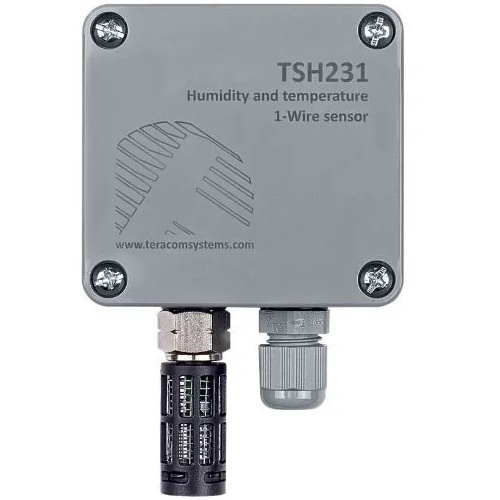

The TSH231 is the new version of the TSH230 Splashproof sensor designed for measuring both temperature and humidity, utilising a 1-Wire interface. It employs a specialised capacitive element for accurate relative humidity readings and a band gap element for temperature measurements. These sensing components are integrated with a precise 12-bit analogue to digital converter, ensuring high-quality and reliable environmental data. When used in conjunction with suitable Ethernet or cellular controllers, the TSH231 becomes an excellent solution for humidity monitoring in environments demanding IP54 level protection against splashing water.

Communication with the TSH231 is via a 1-Wire bus, and each sensor is uniquely identified with a 64-bit serial code, enabling the use of multiple sensors on the same bus. The digital sensor is housed in a durable IP65-rated enclosure, providing significant protection against dust ingress and water sprays from any direction. Installation is simplified by a cable gland with a locknut and a screwless terminal block, ensuring secure and straightforward wiring.

Features

• 3.0% relative humidity accuracy
• 1-Wire interface
• Excellent long-term stability
• Firmware update via the interface
• Unique 64-Bit serial number for multi-sensors support

Applications

• Fleet management systems
• Environmental quality monitoring and assessment
• Humidity and temperature monitoring for vineyards, greenhouses, etc
• Humidity and temperature logging for telco facilities
• Server room and data centers humidity and temperature monitoring
• Humidity and temperature monitoring in building management systems (BMS)

Specifications

* Recommended operating range is -10 to 60°C @ 20-80%RH. Prolonged operation beyond these ranges may result in a shift of sensor reading and slow recovery time.

Pinout of Connectors

	Pin	Description	UTP Wire Colour
	GND	Data Ground	Green/White tracer
	1-W	1-Wire Data	Green
	GND	Power Ground	Orange/White tracer
	+4.5÷26V	Positive Supply	Orange
