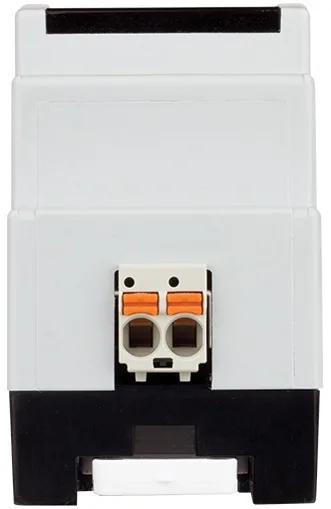

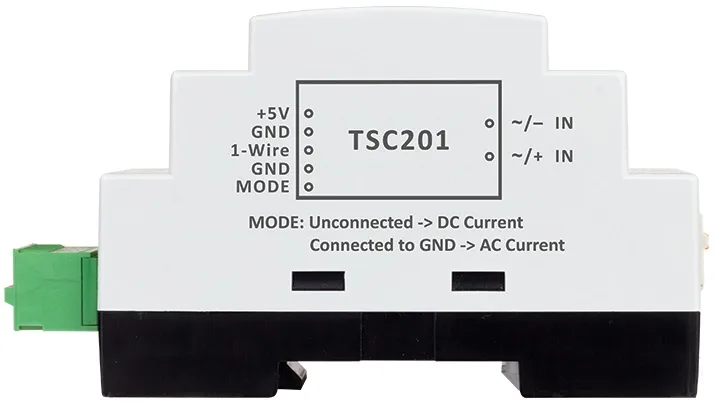

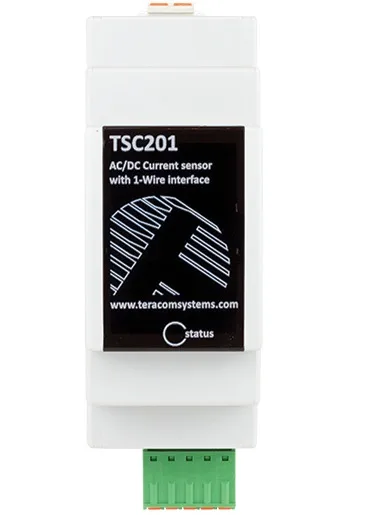

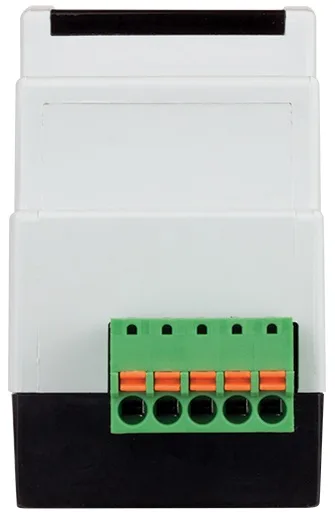

The TSC201 is a 1-Wire 10A Current Sensor, suitable for AC or DC currents. Powered via 1-Wire Bus @ 30mA. Dimensions: 36 x 107 x 59mm. It features screwless terminal blocks for both the monitoring side and 1-Wire Network for easy daisy-chaining, making it a robust solution for current monitoring.
£64.43
The TSC201 is a compact 1-Wire current sensor that monitors both AC and DC currents, supporting an input range up to 10 A. This versatility allows it to directly measure low currents or, when paired with current transformers (CTs) that have a 10 A secondary output, accurately monitor much higher currents. Equipped with a 16-bit ADC, it delivers high-resolution readings, making it perfect for detailed load monitoring and energy diagnostics. A critical feature for safety and reliability is its galvanic isolation between the input and communication interface, which effectively protects against electrical noise and voltage transients. The TSC201 comes factory calibrated, meaning it requires no user adjustment, ensuring quick installation and preventing setup errors. Its compact design fits easily into control panels or cabinets, making it a precise, electrically safe, and user-friendly solution for new or existing systems that need dependable current measurement in challenging environments.
For power and data, the TSC201 is designed for simplicity. It operates on a supply voltage of 4 to 5.5 VDC, and when connected to a Teracom controller, it receives both power and data directly through the single 1-Wire interface. This eliminates the need for separate power wiring, greatly simplifying installation. Data updates typically occur every second with Teracom controllers, providing consistent, near real-time monitoring within the protocol’s practical limits. Housed in a 2-DIN rail-mountable enclosure, the TSC201 is built to be robust, ensuring durability and stable performance in demanding industrial settings like electrical panels and control cabinets. This sensor is ideal for applications requiring energy tracking, robust automation, and precise current diagnostics in commercial and industrial settings, seamlessly integrating into monitoring systems where performance and reliable current measurement are paramount.
| Parameter | Value |
| Supply Voltage Range (1-Wire Bus) | 4.0 to 5.5V |
| Maximum Supply Current (1-Wire Bus) | 30mA |
| Input AC Current Range | 0.1 to 10A |
| Input DC Current Range | ±(0.1 to 10)A |
| Accuracy | ±1% |
| Resolution | 0.01A |
| Maximum Working Voltage for Basic Isolation | 277vAC |
| AC Frequency | 48 to 65Hz |
| Operating Range | -20 to +60°C (10-90%RH Non-Condensing) |
| Dimensions: | 107 x 36 x 59mm |
| Connectors: | 2 x Screwless Terminal |

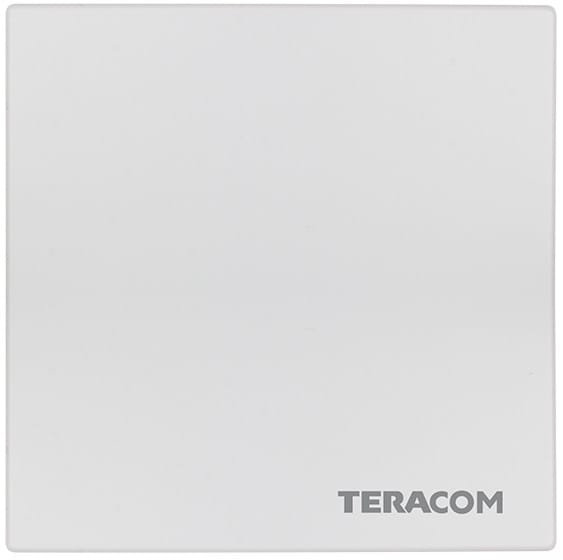

TSM400-1-TH
