Description
This mains charger is only for use with Tracer 24V Lithium Iron Phosphate (LiFePO4) Battery Packs. Do not use this charger for any other purpose. It has been designed to be used with LiFePO4 batteries only.
Features
- Overcharge protection
- Short-circuit protection
- Reverse-polarity protection
- Fixed EU lead with plug adapters
- AC INPUT: 190-264V AC 47-63Hz
- OUTPUT: 29.4V 5A
Recharging the battery
- Connect the charger to the mains and switch on – LED 1 will glow yellow
- Connect the charger to the Tracer LiFePO4 battery
- LED 1 will glow orange to indicate Boost Charge
- LED 1 will flash yellow to indicate Top-up Charge
- LED 1 will glow green when the battery is fully charged / Standby mode
- Once fully charged, disconnect the charger from the mains and then from the battery

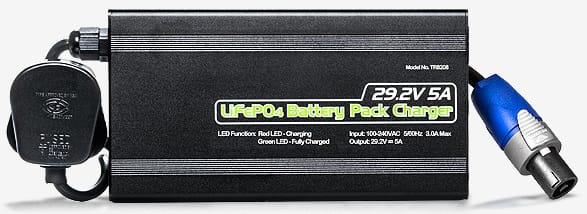

Mains charger for the Tracer 24v LiFePO4 Battery Packs with Neutrix socket.
Supplied with UK, Euro, US or Asian power adapters (Please highlight at time of order.
Input: 100-240V ~ 50/60Hz 3.0A Max
Output: 29.2V 5A
| Battery Capacity | Charge Time | Suitable For |
| 8 Ah | 2-3 Hrs | 24V Tracer Module/Carry Case Kits |
| 20 Ah | 5-7 Hrs | 24V Tracer Battery/Power Packs |
