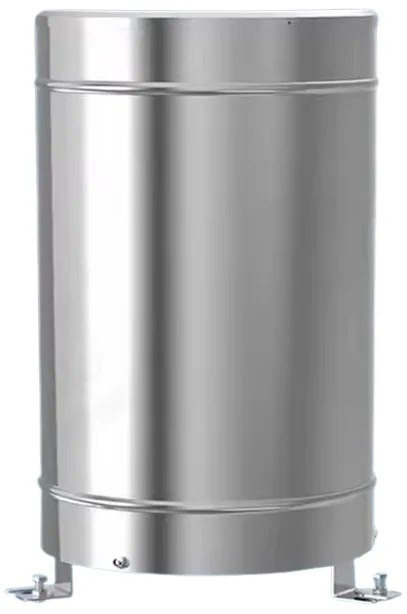

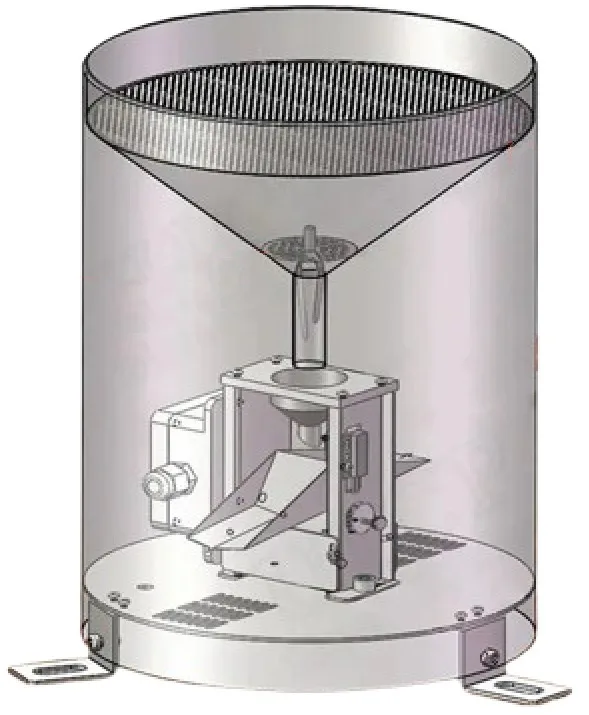

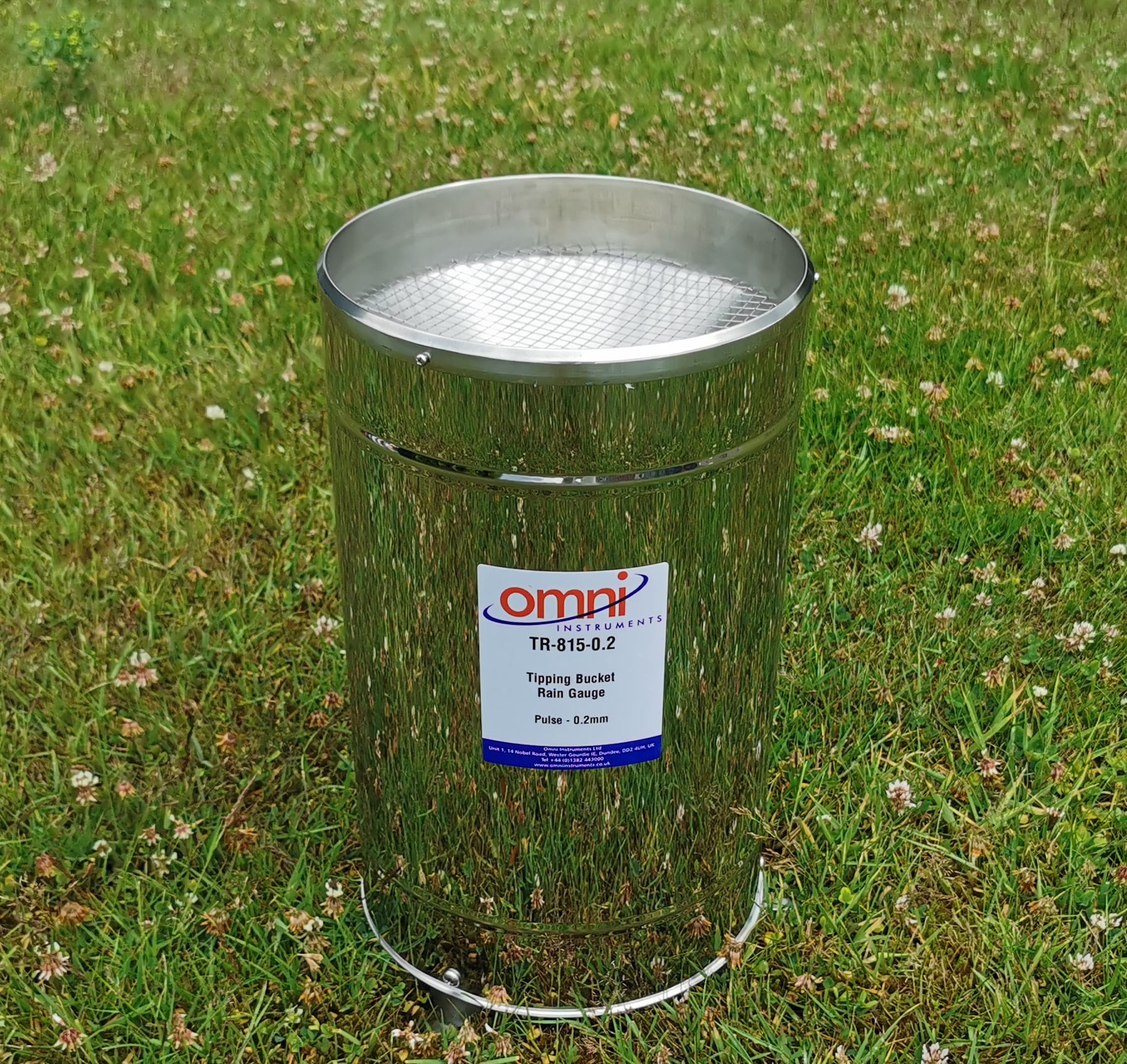

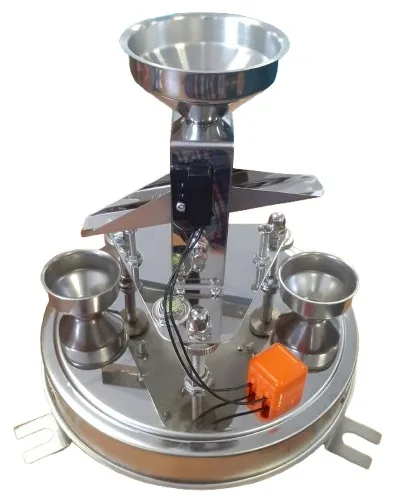

The TR-815 rain gauge is a freestanding tipping rain bucket made from 304 Stainless Steel through out. Provides a 0.2mm pulse output for rain fall totals. The 8″ collector features a 40-45° sharp edge to ensure correct rain collection and prevent splashing.Complies with the specifications, which requires a minimum diameter of 8″ collector.
Introducing our brand-new Tipping Rain Gauge, engineered for unparalleled accuracy and long-term reliability. Crafted entirely from 304 Stainless Steel, this robust instrument is designed to withstand the harshest weather conditions, providing consistent and precise rainfall data for years to come.
LogBox-DA is a small standard alone battery powered data logger with two inputs. The digital input
can be used to totalise the pulses generated by the TR-815 rain bucket and provide a detailed recording of the rain fall totals in a specified time frame. The internal memory can retain up to 64,000 readings, which can provide over one years logging with a 10 minute logging period. Readings will need to be collected from site using the IRLink and suitable PC or laptop. The LogBox can be fitted inside the TR-815 to provide a single, easy to install rainfall logging system. The analogue input can also allow for a second input, which could be used for monitoring 4-20mA, 0-10V or 0-50mV, ideal for a pyranometer.
TR-815-0.2
£337.52
8813001001
£115.27
