Description
Features
- 8″ Collection area
- Sharp-edge collector optimises rainfall catch
- Double filtration to prevent clogging
- 304 Stainless Steel Construction, including tipping mechanism
- Integral Bubble Level
- Protected internal connection
- Interfaces to virtually all data acquisition systems
- Complies with WMO Standard for Tipping Rain Gauge
Field Data Logger Options

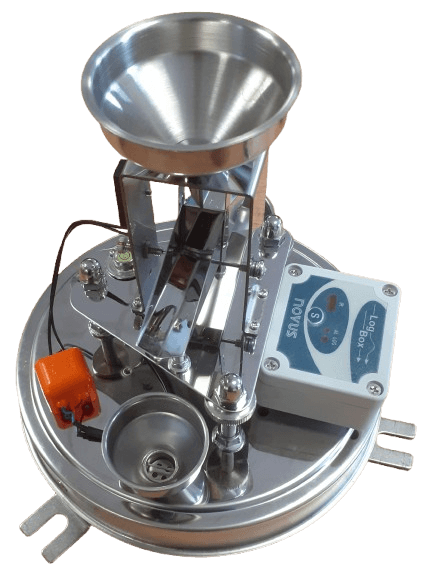

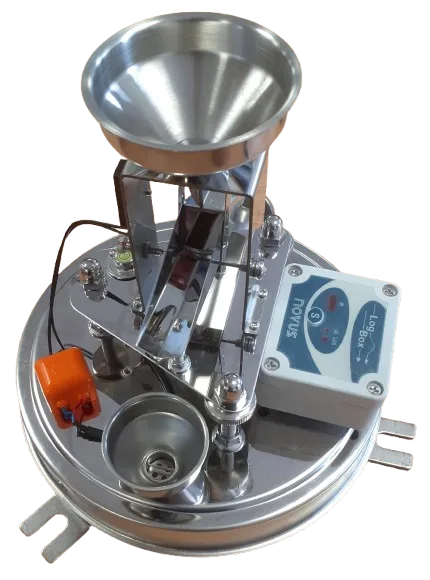

LogBox-DA is a small standard alone battery powered data logger with two inputs. The digital input can be used to totalise the pulses generated by the TR-815 rain bucket and provide a detailed recording of the rain fall totals in a specified time frame. The internal memory can retain up to 64,000 readings, which can provide over one years logging with a 10 minute logging period. Readings will need to be collected from site using the IRLink and suitable PC or laptop. The LogBox can be fitted inside the TR-815 to provide a single, easy to install rainfall logging system. The analogue input can also allow for a second input, which could be used for monitoring 4-20mA, 0-10V or 0-50mV.
