Description

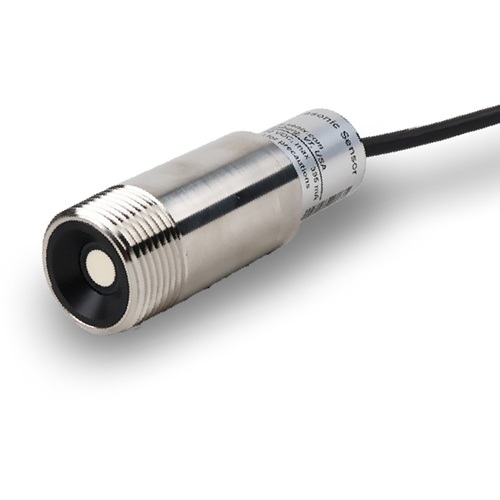

The ToughSonic TS-100 sensors use ultrasonic sound waves to measure distances through air. This technology has distinct advantages over mechanical, optical and radar technologies. Ultrasonic sound waves are unaffected by ambient light, target colour, transparency or reflectivity and the target area can be much wider than optical sensor allowing small and large objects to be easily detected. The ultrasound waves are non-contact, which last longer and require less maintenance than contact sensors that are more prone to corrosion, scaling and coating.
 |
 |
|
| Optimal Range | 2 Feet (610mm) | |
| Max Range | 3 Feet (910mm) | |

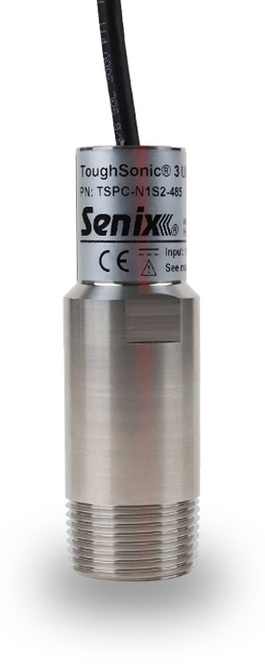

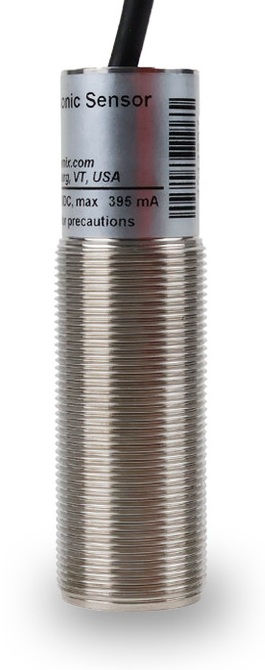

| Mounting | 30mm Threaded housing | 1″ NPT threaded on sensor end, smooth middle for clamping |
| Outputs | 2 SenixView selected outputs per model plus serial data | |
| Push Button “Teach” | Yes | |
| Electrical Connection | 2m 9-core cable | |
| Power Supply | 10-30vDC, typical 24vDC. Sensitivity reduced below 15vDC & Min 15vDC for 0-10V output. | |
| Housing | Marine grade 316 Stainless Steel, epoxy potted and sealed | |
| Operating Environment | -40 to +70°C, 0-100% RH. | |
| Protection | IP68, NEMA-4x, NEMA-6P | |
The ToughSonic sensors are very versatile and the SenixView software allows the units to be easily rescaled, configured, cloned, addressed and synchronised with other sensors. Simultaneous outputs are available in programmable 4-20mA or 0-10V analogue outputs and PNP or NPN switches (configurable as sinking or sourcing). The RS485 serial output can link to an addressable network using the Modbus protocol. If requested, this can be done prior to shipping for easier installation, order TSPC-PROG and we will program to your specific requirements.
