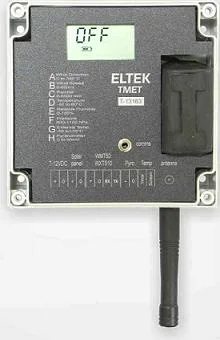

GEN II radio transmitter with wired connections for Vaisala Weather (WXT520) or Wind speed (WMT52) sensors, one thermistor and one mV input suitable for a CMP pyranometer. Thermistor Range -50 to +150 C, Resolution 0.05 C and Accuracy 0.1 C (-5 to +75 C). mV Range 0-50mV, Resolution 0.025% and Accuracy 0.1%. TMET interfaces with the digital output from the WXT520 to derive: Wind Speed (0-60m/s); Wind Direction (0-360 ); Precipitation; Barometric Pressure (600-1100hPa); Air Temperature (-52 to +60 C); and Relative Humidity (0-100%RH). Transmitter requires a 12vDC power supply, internal backup battery will provide up to 5 days operation. MP12U or SP-TMET2 Solar panels can be used to provide 12vDC power supply. Supplied with custom 7.2V (2.3Ah) NiMh battery with built in temperature sensor, compressed spring antenna and integrated LCD display.
£575.00
GENII transmitter for WXT weather sensor, with digital lCD display, 120 x 120 x 60mm approx. It has connectors for:Antenna (attached or remoted) on an sma connector, Screw terminals block for :, RS232 (from WXT510)
Power (To WXT510), Power from external
