Description

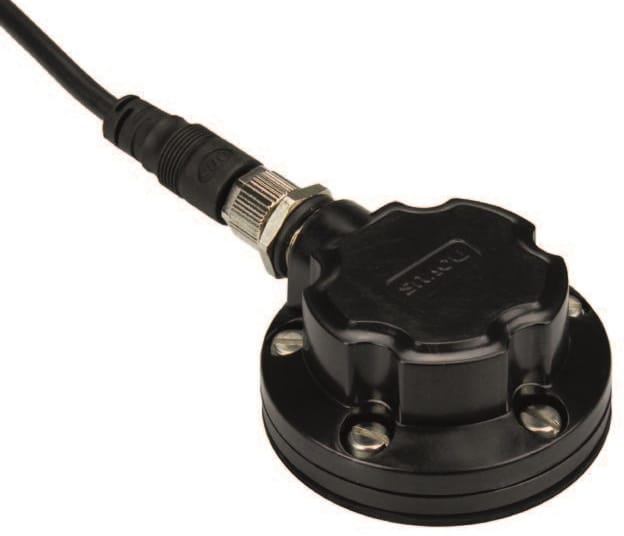

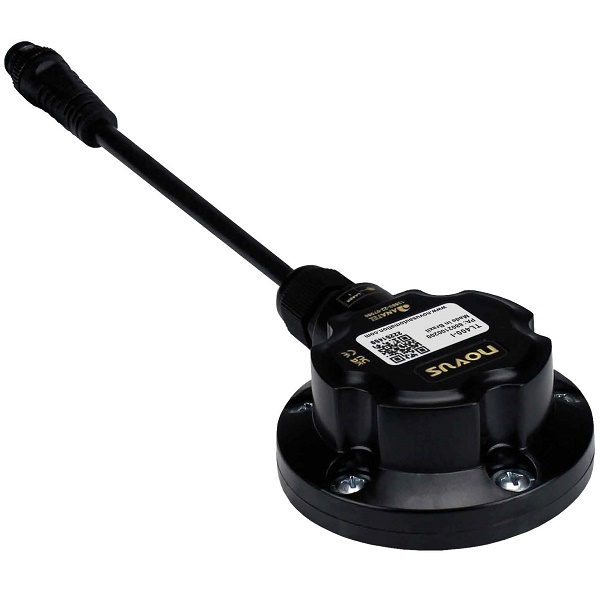

The TL400 non-intrusive laser level sensor can be used for monitoring the level and volume of liquids, grains, fluids and bulk solids in static and moving storage vessels. It may be used for level measuring of tanks, reservoirs, wells, perforations, rivers and other compartments. It uses a low powered, harmless pulsed laser beam. Performing multiple measurements per second while an advanced algorithm calculates not only the exact level but also converts it to volume in liters or other desired units. Specific calibration for a determined irregular tank can be easily achieved after installation in loco or at factory level (when desired) by the user by means of a versatile App on mobile devices through the Bluetooth communication.
Features
- Easy non-intrusive installation
- Configuration via Bluetooth with App
- Digital filters based on Machine Learning
- Allows linearisation for any irregular tank geometry
- Converts level into volume (liters, mĀ³, gallons, etc.)
Specifications
| TL400-V | TL400-I | |
| Range | Up To 4 Meters | |
| Accuracy | Up to 2mm | |
| Output Signal | 0.5-4.5V | 4-20mA |
| Connector Type | 3-pin SuperSeal Connector and 150mm cable | 4-pin M12 Connector with 150mm cable |
| Tank Geometry | In addition to standard formats, it allows up to 20 linearisation points | |
| Operating Temperature | -20 to 80Ā°C | |
| Communications Interface | Bluetooth | |
| Configuration Software | SigNow for Android, iOS and Windows | |
| Power Supply | 8-33vDC @ 15mA | |
| Electrical Protection | Reverse Polarity Protection and Current Limitation | |
| Housing | Polycarbonate with NBR Gasket | |
| Dimensions | 66mm Diameter, 31mm Height | |
| Mounting Pattern | SAE 5 Bolt Hole | |
| Protection Level | IP68 | |
| Certification | CE. UKCA and Laser Class 1 | |
| Warranty | 3 Years | |
