Tinytag Talk 2 Voltage Logger - TK-4703

Description

The TK-4703-PK Tinytag Talk 2 data logger is a compact data logger that is suitable for monitoring DC voltages up to 2.5vDC. The TK-4703 has been specifically designed as a low cost data logger for monitoring small DC voltage from various sensors including current clamps, pyranometers or other low voltage sensors. The 50µV resolution of the DC input range provides a much higher accuracy for low voltage output sensor and the compact size makes the logger ideal for space restrictive applications. This logger is very popular building condition monitoring and academia. The lightweight 35mm film canister case is only IP30, so will require additional protection if used in a harsher environment.

Features

  • Input Range: 0 to 2.5vDC with 50µV resolution
  • Internal memory for up to 16,000 readings
  • Logging rates from 1 sec up to 10 days.
  • Opaque 35mm film canister case
  • 2 user programmable alarms
  • Delayed start option (up to 45 days)
  • User replaceable battery

Popular Applications

  • Battery level monitoring
  • Customised data logging with suitable external sensor
  • Building condition monitoring



Physical Specifications Sensor Specifications
Case Dimension: 34mm Diameter x 54mm High Reading Range: 0-2.5vDC
IP Rating: IP30 Maximum Input: 3V
Operational Temperature Rating: -40 to +85°C (-40 to +185°F) Input Impedance: 470K­Ω
Weight: 30g Resolution: 50µV or better
Cable Length (CAB-3233):
 1.5m Accuracy: ±0.2% of reading ±5mV
Battery: ½AA 3.6V Lithium Temperature Stability: 1mV/°C change from ambient (25°C)
Battery Life: Annual Replacement Alarms: 2 fully programmable; latchable
Logger Specifications
Total Reading Capacity: 16,000 Readings Memory Type: Non-Volatile
Reading Types: Actual, Min, Max Logging Interval: 1 sec to 10 days
Delayed Start: Relative
Absolute (up to 45 days)		 Stop Options: When full
After n Readings
Never (overwrite oldest data)

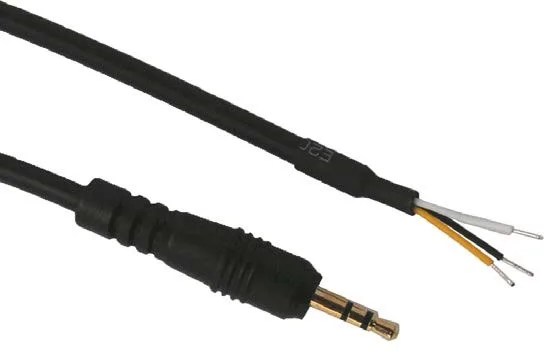

The Tinytag Talk 2 voltage and current loggers are supplied with a CAB-3233 Talk Voltage/Current Input Lead. The connection details for the cable, and a 2.5mm jack plug, are as follows:

CAB-3233 2.5mm Jack Plug Function
White Tip Sense Line
Yellow Ring Signal Input
Black Shank Common/0V



The TK-4703 can be downloaded using the USB cable, Ref CAB-0005-USB. Downloading is done using the same Jack connection as the input lead.
