Description

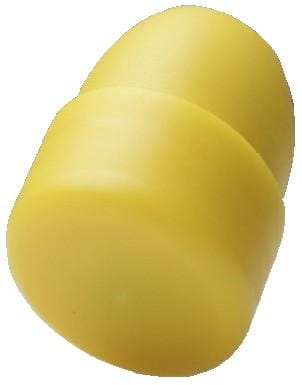

The TK-4014-V1 Tinytag Talk 2 data logger is a compact data logger that provide accurate temperature monitoring. The TK-4014-V1 has been specifically designed as a low cost temperature loggers for monitoring temperatures in incubators. The same TK-4014 logger is housed in a yellow, robust, Nylon casing that is IP68 rated.
Features
- Temperature Range: -40 to +85°C
- Internal memory for up to 16,000 readings
- Logging rates from 1 sec up to 10 days.
- Yellow Nylon case
- 2 user programmable alarms
- Delayed start option (up to 45 days)
- IP54 splashproof casing
- User replaceable battery
Popular Applications
- Incubator Temperature Monitoring
- Hatchery Monitoring
- Egg Storage Monitoring
- Environmental Sex Determination (ESD) of Reptile Eggs
- Temperature-dependent Sex Determination (TSD)
| Physical Specifications | Sensor Specifications | ||
| Total Reading Capacity: | 16,000 Readings | Sensor Type: | Internal 10K NTC Thermistor Sensor |
| Memory Type: | Non-Volatile | Measuring Range: | -40 to +85°C (-40 to +185°F) |
| Reading Types: | Actual, Min, Max | Reading Resolution: | 0.05°C or better |
| Logging Interval: | 1 sec to 10 days | Response Time: | 25 mins to 90% FSD in moving air |
| Trigger Start: | Magnetic Switch | Sensor Accuracy: |
|
| Delayed Start: | Relative/Absolute (up to 45 days) | ||
| Stop Options: | When full After n Readings Never (overwrite oldest data) |
||
| Alarms: | 2 fully programmable; latchable | ||
| Operational Temperature Rating: | -40 to +85°C (-40 to +185°F) | ||
| IP Rating: | IP54 (Splashproof) | ||
| Case Dimension: | 34mm Diameter x 54mm High | ||
| Weight: | 30g | ||
The TK-4014-V1 can be downloaded using the USB cable, Ref CAB-0005-USB. The download cable connects to the logger inside the yellow case and allows for configuration and downloading data.
