Description

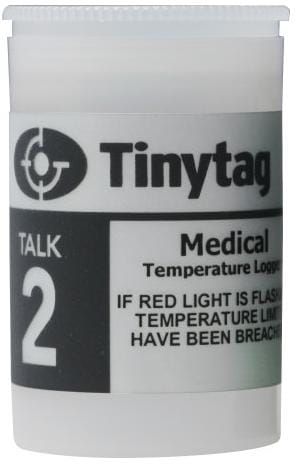

The Tinytag Talk 2 Medical, TK-4014-MED, is a simple, cost effective way of monitoring the temperature of pharmaceuticals in fridges, freezers and other cool (ambient) storage areas. These loggers are used widely by hospital pharmacies, surgeries and health centres for monitoring the temperature and providing a clear visual alarm for any temperature breaches. The logger automatically records and stores a complete temperature history that can be downloaded to a PC to provide a detailed record of storage temperatures.

The Tinytag Talk 2 Medical has two alarms that can be user set at high and low levels specific to the products being monitored. Breaching these set-points will trip a flashing red light, enabling spot assessment of ongoing temperature levels and prevent the use of any products that may not have been maintained at the correct temperature. The TK-4014-MED includes a magnetic trigger start that isn’t included with the standard TK-4014. This allows units to be pre-programmed ready for use and then the logging started whenever required. The units also include a delayed start function, which can be used to automatically start a logger at a given pre-set time. The other difference to the standard TK-4014 logger is the improved 0.02°C resolution of the TK-4014-MED

This compact, battery powered unit is reliable and highly accurate. Designed with a temperature response similar to many vaccine formats, it accurately profiles the temperature changes experienced by the pharmaceuticals being monitored. The recording interval is user defined and with a memory capacity of 16,000 readings this would provide six months of data with a reading every half hour. The temperature history is transferred easily to PC, where Tinytag Explorer will automatically produce a graph and table of the data, creating a permanent record.

Features

• Temperature Range: -40 to +85°C
• Internal memory for up to 16,000 readings
• Logging rates from 1 sec up to 10 days
• Opaque 35mm film canister case
• 2 fully user programmable alarms, latchable
• Red LED for any temperature breaches
• Delayed and magnetic trigger start options
• IP54 splashproof casing
• User replaceable battery
• Cable and inductive pad connectivity
• EN 12830 compliant

Popular Applications

• Pharmaceutical storage
• Cold store monitoring
• Medical fridge & freezer temperature monitoring and profiling
• Mobile vaccination programs
• Culture room monitoring.

Physical Specifications		Sensor Specifications
Total Reading Capacity:	16,000 Readings	Sensor Type:	Internal 10K NTC Thermistor Sensor
Memory Type:	Non-Volatile	Measuring Range:	-40 to +85°C (-40 to +185°F)
Reading Types:	Actual, Min, Max	Reading Resolution:	0.05°C or better
Logging Interval:	1 sec to 10 days	Response Time:	25 mins to 90% FSD in moving air

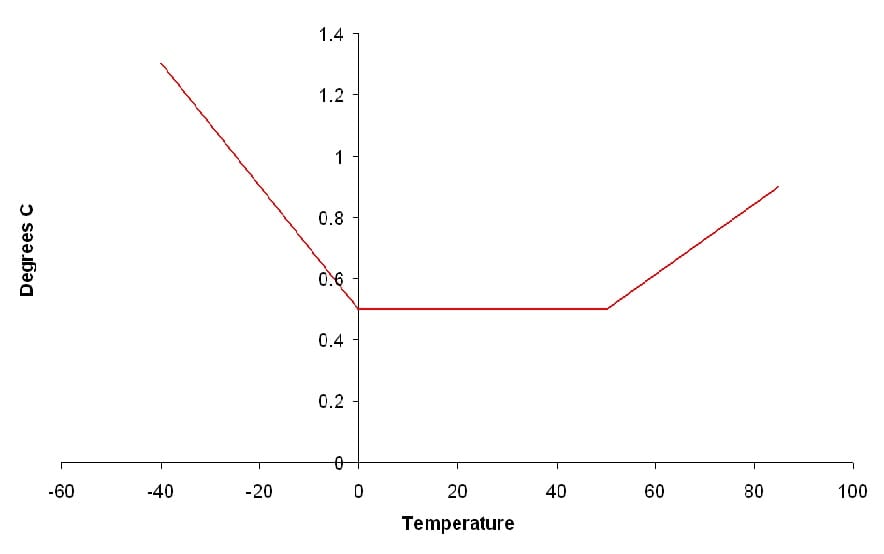

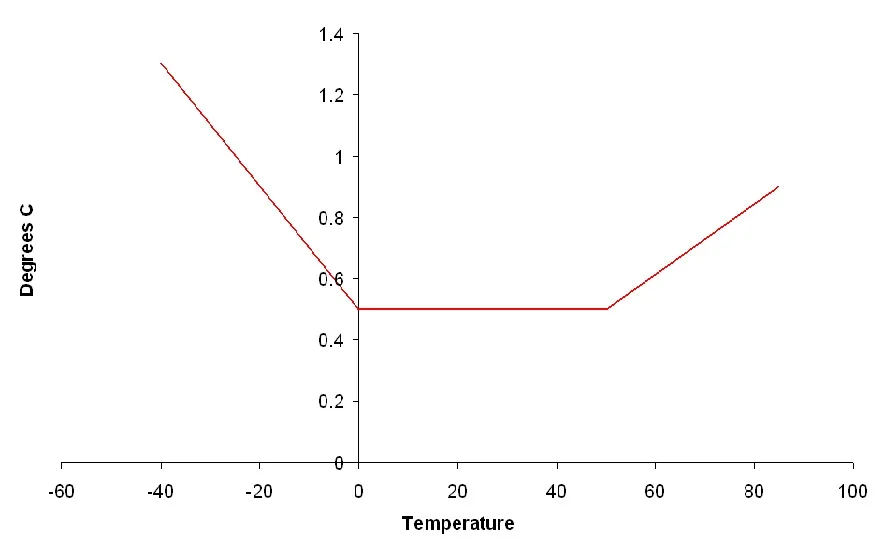

Trigger Start:	Magnetic Switch	Sensor Accuracy:
Delayed Start:	Relative/Absolute (up to 45 days)
Stop Options:	When full After n Readings Never (overwrite oldest data)
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-40 to +85°C (-40 to +185°F)
IP Rating:	IP54 (Splashproof)
Case Dimension:	34mm Diameter x 54mm High
Weight:	30g

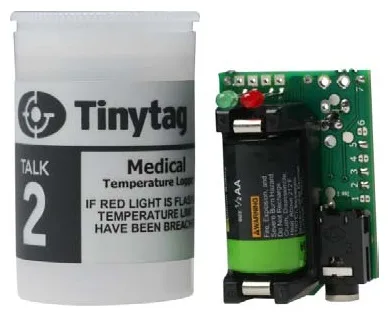

The TK-4014-MED can be downloaded using the USB cable, Ref CAB-0005-USB. The download cable connects to the logger inside the canister and allows for configuration and downloading data.
