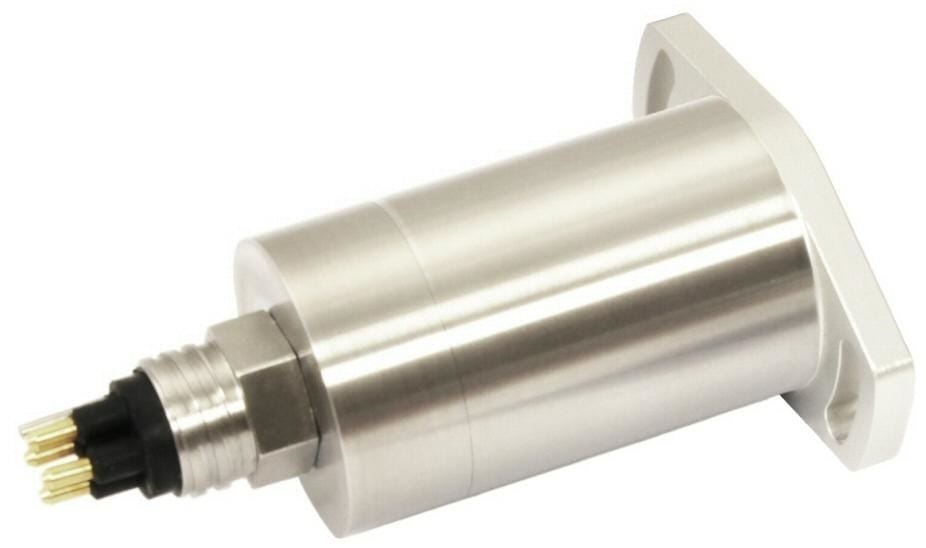

The S623 TIPS® (Tilt Inductive Position Sensor) is an affordable, durable, high-accuracy tilt sensor designed for arduous underwater applications such as ROVs. The S623 will provide a linear output proportional to the angle of the sensor. Each unit is supplied with the output calibrated to the angle required by the customer, any angle from 0-15° to 0-160° and with full EMC protection built in. The sensor is very rugged, being made of 316 stainless steel body and mounting flange, with two 5.5mm holes on a 54mm pitch to simplify mounting. Environmental sealing is to IP68 350 Bar.
| Independent Linearity: | ≤ ± 0.25° – up to 100° |
| Temperature Coefficients: | < ± 0.01%/°C Gain & < ± 0.01%FS/°C Offset |
| Response Time: | 250mS @ 20°C typical |
| Resolution: | Infinite |
| Damping Ratio: | 0.2:1 (0.6 nom. @ 25°C |
| Noise: | < 0.02% FSO |
| Body Diameter: | 40mm, Flange 69mm |
| Body Length (to seal face): | 81mm |
For full mechanical details see drawing S623-11
| Operating: | -4°C to +50°C |
| Storage: | -4°C to +50°C |
| Sealing: | IP68 Sealed to 350 Bar |
| EMC Performance: | EN 61000-6-2 EN 61000-6-3 |
| Vibration: | IEC 68-2-6: 10 g |
| Shock: | IEC 68-2-29: 40 g |
| MTBF: | 350,000 hrs 40°C Gf |
