Tinytag View 2 Instrumentation Data Loggers for mA & Voltage with LCD

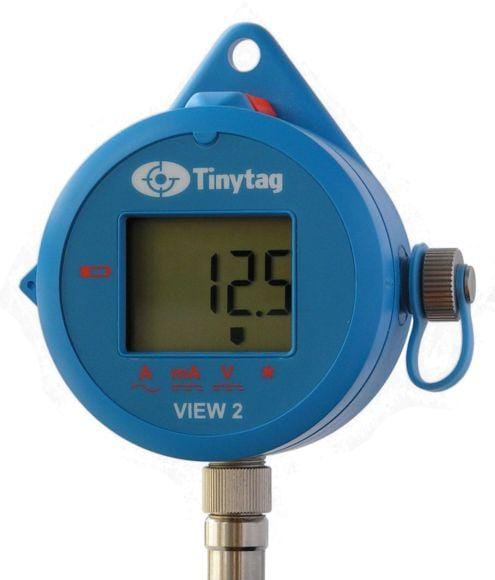

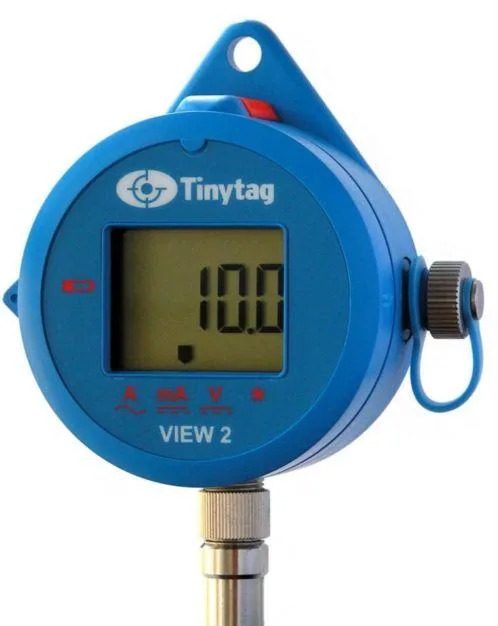

These Tinytag View loggers are designed to monitor standard mA or vDC inputs in the ranges of 0-25mA, 0-2.5 and 0-25vDC. The TV-4703 cover a voltage range of 0-2.5vDC and the TV-4704 0-25vDC. The TV-4804 covers a current range of 0-25mA. As well as recording data the unit has a display that shows what the unit is currently reading. The unit has an IP65 case and features high reading resolution and accuracy, a large memory, a fast offload speed and a low battery monitor. These units are supplied with a 1m long input lead with flying leads for easy connection.

Need help finding the right product?

Description

The Tinytag View 2 Instrumentation range of data loggers allow for low DC voltage or 4-20mA current inputs. Logger have an internal memory for up to 30,000 readings, low battery monitor, high accuracy and improved reading resolution. The Tinytag Instrumentation loggers replace the existing Tinytag Re-Ed range, and these loggers can be used to record outputs from third party sensors, enabling users to measure a wide range of properties such as solar irradiance, heat flux, pressure, flow rate, etc.

Features

  • LCD display for real-time readings
  • Waterproof housing
  • 32,000 reading capacity
  • High Accuracy
  • High Reading Resolution
  • Fast Data Offload
  • 2 user-programmable alarms
  • Low battery monitor
  • User-replaceable battery

Specifications

 Part Number: TV-4703 TV-4704 TV-4804
 Input Range 0-2.5vDC 0-25vDC 0-25mA
 Reading Resolution: 0.1mV 1mV 1µA
 Display Resolution: 0.1V 0.1V 0.1mA
 Accuracy: 0.2% of reading ±10mV 0.2% of reading ±20mV 0.2% of reading ±20µA
 Display: 4 Digits plus  Indicators
 Internal Memory: 30,000 Readings
 Start Options: Magnetic Switch, Relative/Actual (up to 45 days)
 Stop Options: When Full, After No. of Readings, Never (wrap around)
 Reading Types: Actual, Minimum, Maximum
 Logging Interval: 1 second to 10 days
 Offload: While stopped or when logging in minute multiples
 Alarms: Two, fully programmable
 Functional Range: -30°C to +70°C
 Dimensions: Diameter 60mm, 85mm (Height) x 59mm (Width) x 34mm (Depth)
 Weight: 85g

Each logger is supplied with a 1m input cable, CAB-3239.

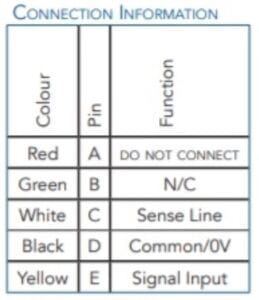

CAB-3239  Tinytag Voltage/Current Input Lead
Cable Length: 1m
Cable Material: PVC
Temp Rating: -10 to +85°C
IP Rating: IP68 (Connector)
Weight: 60g







A 5-pin plug, ACS-9703, is available separately.

ACS-9703
5-Pin Plug
Shell Material: Brass and Zinc Alloy (Nickel plated)
Contact Material: Cooper Alloy (Gold plated)
Temp Rating: -40 to +85°C
IP Rating: IP68 (-25 to 85°C)
Weight: 15g



The standard configuration will record the values in voltage or milliamps at each user-defined logging interval. Loggers can be factory configured for use with a third-party sensor, with specific values, for applications such as pressure, wind speed or scaled values. To confirm that this logger can be configured to work with a specific sensor, please contact us or fill in the attached Configuration Form. Without Custom Configuration, the logger will only show the voltage or current at each logging interval.

Product

Ref

Price

Product Description

TV-4703

£130.00

Tinyview 2 Voltage data logger with 4 digit LCD display. range 0-2.5vDC. Memory for 30,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 1 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239

TV-4703-ED

£180.00

Tinyview 2 Voltage data logger with 4 digit LCD display. range 0-2.5vDC. Memory for 30,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 1 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.

TV-4704

£130.00

Tinyview 2 Voltage data logger with 4 digit LCD display. range 0-25V DC. Memory for 30,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 3 years. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239

TV-4704-ED

£180.00

Tinyview 2 Voltage data logger with 4 digit LCD display. range 0-25V DC. Memory for 30,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 3 years. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.

TV-4804

£130.00

Tinyview 2 Current data logger with 4 digit LCD display. range 0-25mA. Memory for 30,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 3 years. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239
