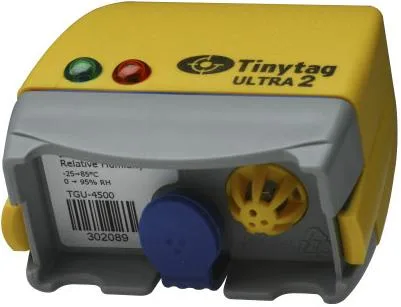

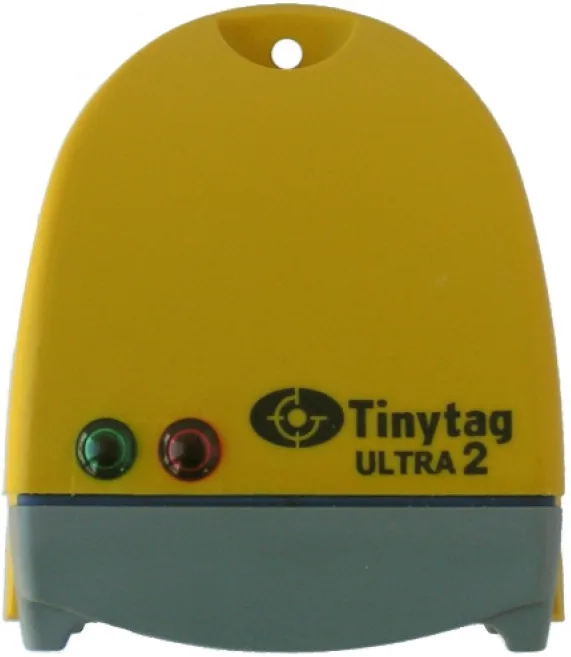

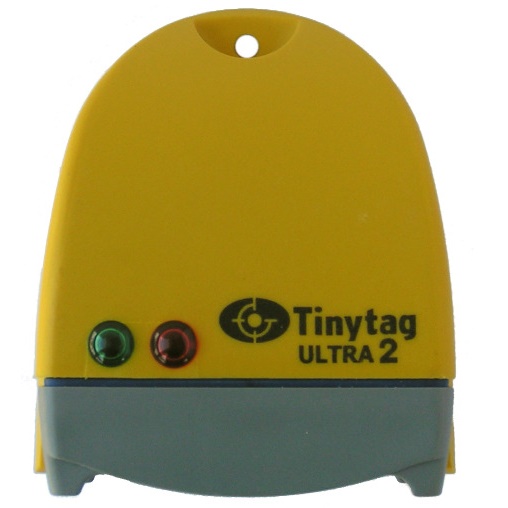

The Tinytag Ultra 2 data loggers is designed for the monitoring of temperature and relative humidity in indoor environments, eg museums, art galleries, office spaces, etc. The Ultra2 loggers are available with internal temperature and/or humidity sensors, plus options for external temperature sensors, including K, J, T or N type thermocouples. The loggers have an internal memory for up to 32,000 readings with 2 programmable alarms. Logging rates of 1 sec up to 10 days are available with min, max and actual readings. Units have a magnet trigger or time delayed start function.
| Specification | |
| Memory Size | 32K (Non-volatile) |
| Readings | 32000 (approx) |
| Resolution | 12 bit |
| Delayed Start | Relative / Actual (up to 45 days) |
| Stop Options | When full, After No. of Readings, Never (wrap around) |
| Reading Types | Actual, Minimum, Maximum |
| Logging Interval | 1 second to 10 days |
| Offload | While stopped or when logging in minute multiples |
| Alarms | Two, fully programmable |
| Functional Range | -40°C to +85°C |
| IP Rating | IP54 splash proof |
| Battery Life | Up to 12 months |
| Dimensions | 72mm x 60mm 33mm |
| Weight | 55g |
The Tinytag Ultra is a range of economical, high resolution data loggers designed for the monitoring of temperature and humidity levels across a wide range. Supplied in rugged, IP54 casing, protects the data logger from harsh conditions. Ideal for indoor environments and commonly used in HVAC applications.
Large memory allows 32,000 readings to be stored before data download is required. LED indicators located on the front of all of the units give a visual indication when high or low alarm levels have been reached. High resolution (0.01°C) provides even better accuracy compared to similar data loggers from alternative vendors. Easy top use software (not supplied) for data download, graphing and logger configuration.
Models are available with internal temperature sensor, external thermistor probe and internal humidity sensor.
You will also require Tinytag Explorer software and a CAB-0007 data download cable to use these loggers. These are available separately or as a pack ( SWPK-7-USB-ENG ).

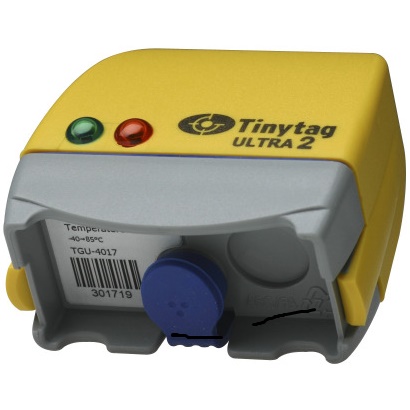

TGU-4017
£85.00

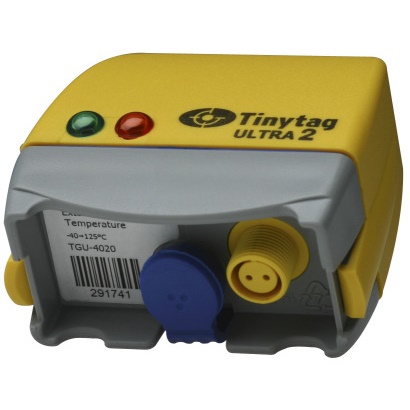

TGU-4020
£85.00

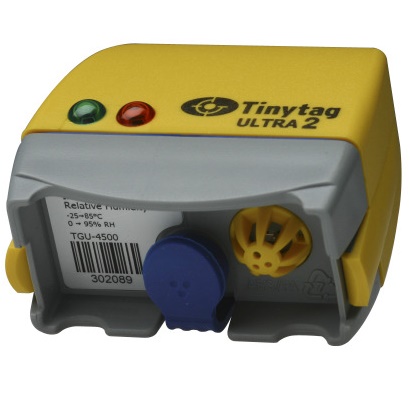

TGU-4500
£115.00

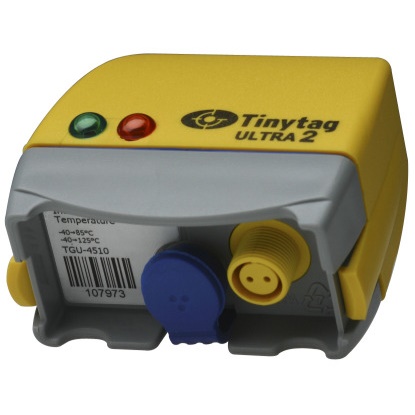

TGU-4510
£115.00
TGU-4550
£120.00
