Tinytag Plus Radio Data Logging System

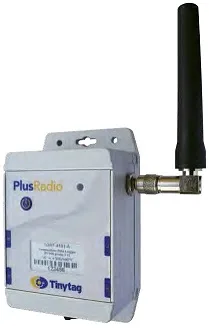

The Tinytag Plus Radio Data Loggers are rugged, weatherproof units designed for use in outdoor, industrial and warehousing applications with a number of monitoring points where manually downloading individual loggers may be impractical. Units are available with thermistor,, PT100 or PT1000 temperature probes or input leads for digital inputs, voltage and current inputs. Each logger is self contained, battery powered unit that can receive, log, store and transmit data to other radio loggers, as well as the central receiver forming a MESH network. Loggers will operate for up to 1 year with up to 2 weeks data held at the default settings.

Need help finding the right product?

Description

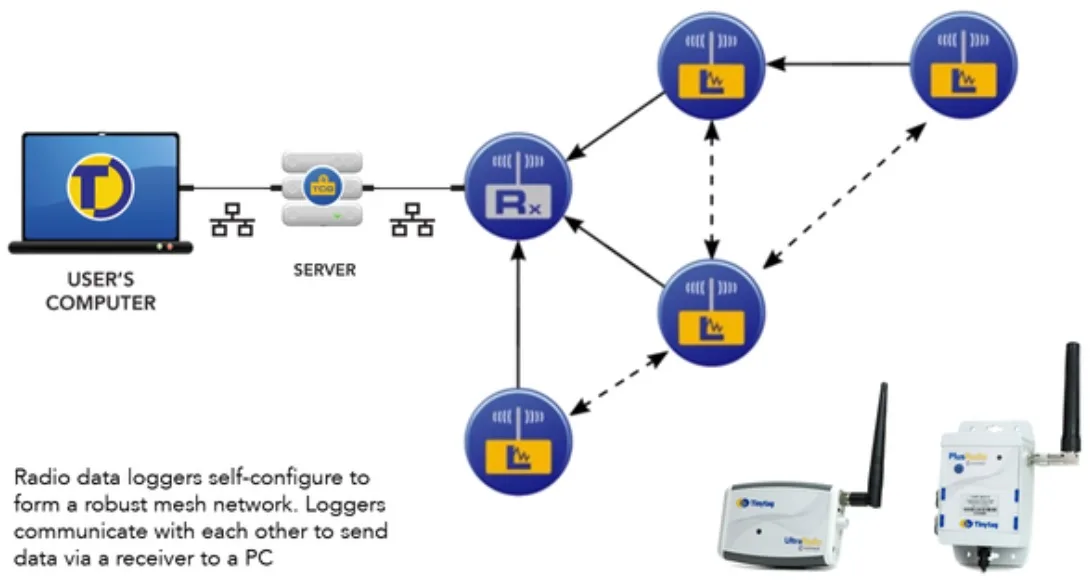

This Tinytag wireless data logging system consists of a receiver which is connected to a PC, via USB or LAN, and a number of remote radio loggers. Each radio logger is a self-contained, battery powered unit that can receive, log, store and transmit data to any other radio unit in the MESH network and will find the best route around obstruction until is is received by the central receiver.

Each radio logger (or wireless data logger) has a line of sight range of up to 200 metres, but there is no limit to the number of loggers you can have, or to how far away you have them. Data will always find its way back to the PC because it can be relayed from one logger to another logger in range, until it finds its way back to the receiver. The loggers will dynamically adjust to deal with obstructions. If a logger is unable to find a path back to the receiver, its data is stored locally until such time as a path becomes available.

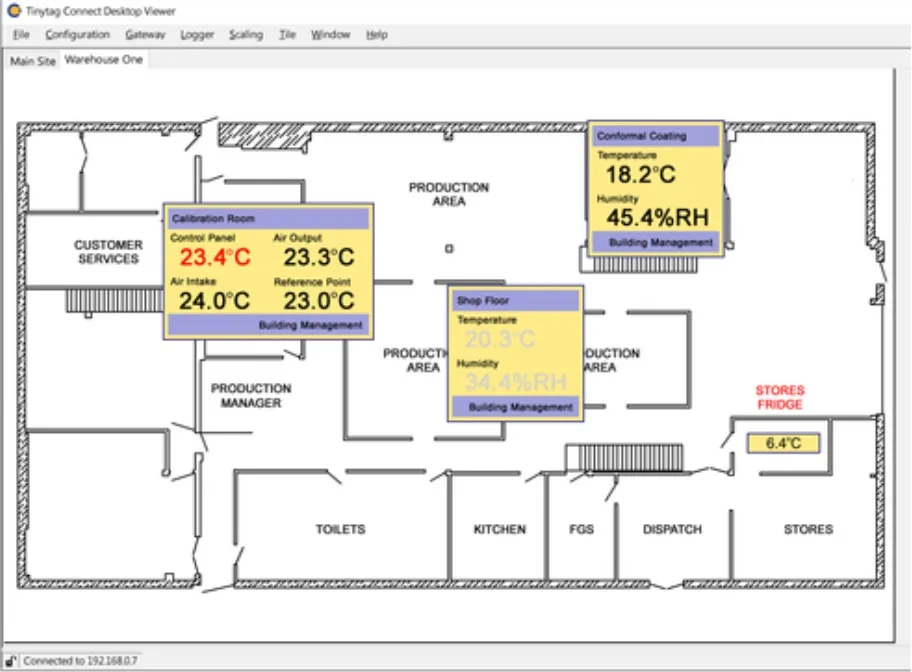

This combination of features delivers a very robust radio network which ensures that data is never lost during transmission. The radio software provides mechanisms for third party integration using Modbus or http accessible CSV files. This software is also fully compatible with ‘wired’ Tinytag products and existing users will find the interface familiar. Data from the receiver can be accessed over a network. Tinytag Plus Radio units also use the same 5 pin connector for inputs as the wired loggers.

Features

  • Radio licence-free and frequency, 869.8 MHz (EU Version), 917.8MHz (AUS Version
  • Self-configuring and easy to set up
  • Self-contained and battery powered
  • Local cache can store 2 weeks of readings @ 10 minute logging.
  • Low battery warning, LED on units and via software
  • User-replaceable batteries
  • Local recording
  • Fast access to information
  • Remote alarm signalling via e-mail
  • SMS messaging available using third party messaging services



Standard units are supplied with Alkaline ‘C’ Type batteries which are readily available and inexpensive to replace. Units supplied with a mains powered (via ACS-0044 Power Supply) or a 3.6V Lithium Battery option is available on request.

Product

Ref

Price

Product Description

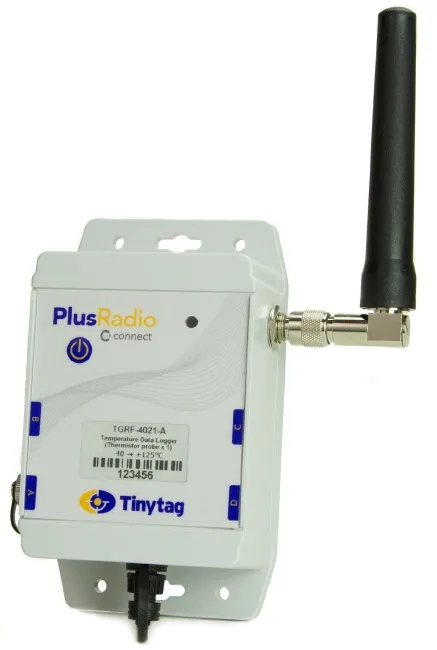

TGRF-4021-A

£285.00

Tinytag Plus Radio Temperature Data Logger for One External Thermistor Probe. Measurement Range: -40 to +125°C, Resolution 0.02°C. or better. Logging Interval: 2 mins to 10 day with 2 Fully Programmable, Latching Alarms, with 1 sec to 10 days Alarm Delay. Red LED and Tinytag Explorer Connect Warnings with Email and SMS options. Reading are transmitter immediately, but Off-line Memory 2 Weeks @ 10 min logging. EU Radio frequency 869.88Mhz, power <5mW. Range up to 200m line of sight. IP67 Enclosure. Operating Temperature -20 to +55°C. Units are supplied with 2 x 1.5V Duracell Industrial ID1400 C Type Alkaline Batteries suitable 12 months operation.

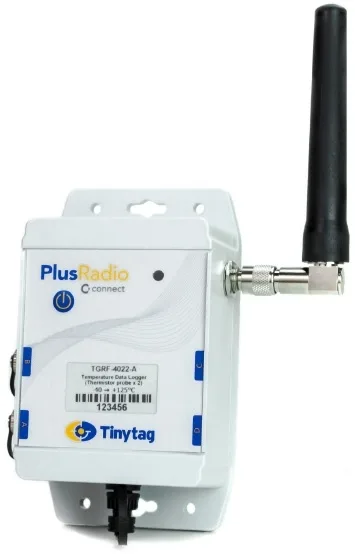

TGRF-4022-A

£320.00

Tinytag Plus Radio Temperature Data Logger for Two External Thermistor Probe. Measurement Range: -40 to +125°C, Resolution 0.02°C. or better. Logging Interval: 2 mins to 10 day with 2 Fully Programmable, Latching Alarms, per Channel with 1 sec to 10 days Alarm Delay. Red LED and Tinytag Explorer Connect Warnings with Email and SMS options. Reading are transmitter immediately, but Off-line Memory 2 Weeks @ 10 min logging. EU Radio frequency 869.88Mhz, power <5mW. Range up to 200m line of sight. IP67 Enclosure. Operating Temperature -20 to +55°C. Units are supplied with 2 x 1.5V Duracell Industrial ID1400 C Type Alkaline Batteries suitable 12 months operation.

TGRF-4024-A

£345.00

Tinytag Plus Radio Temperature Data Logger for Four External Thermistor Probe. Measurement Range: -40 to +125°C, Resolution 0.02°C. or better. Logging Interval: 2 mins to 10 day with 2 Fully Programmable, Latching Alarms, per Channel with 1 sec to 10 days Alarm Delay. Red LED and Tinytag Explorer Connect Warnings with Email and SMS options. Reading are transmitter immediately, but Off-line Memory 2 Weeks @ 10 min logging. EU Radio frequency 869.88Mhz, power <5mW. Range up to 200m line of sight. IP67 Enclosure. Operating Temperature -20 to +55°C. Units are supplied with 2 x 1.5V Duracell Industrial ID1400 C Type Alkaline Batteries suitable 12 months operation.

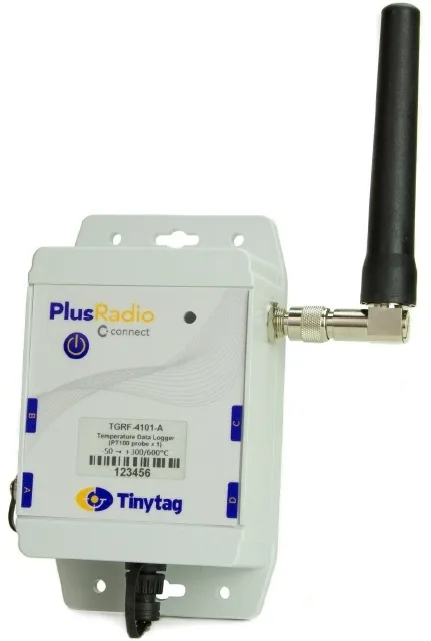

TGRF-4101-A

£290.00

Tinytag Plus Radio Temperature Data Logger for One External PT100 Temperature Probe. Measurement Range: -50 to +600°C, Resolution 0.02°C. or better. Logging Interval: 2 mins to 10 day with 2 Fully Programmable, Latching Alarms, per Channel with 1 sec to 10 days Alarm Delay. Red LED and Tinytag Explorer Connect Warnings with Email and SMS options. Reading are transmitter immediately, but Off-line Memory 2 Weeks @ 10 min logging. EU Radio frequency 869.88Mhz, power <5mW. Range up to 200m line of sight. IP67 Enclosure. Operating Temperature -20 to +55°C. Units are supplied with 2 x 1.5V Duracell Industrial ID1400 C Type Alkaline Batteries suitable 12 months operation.

TGRF-4102-A

£325.00

Tinytag Plus Radio Temperature Data Logger for One External PT100 Temperature Probe. Measurement Range: -50 to +600°C, Resolution 0.02°C. or better. Logging Interval: 2 mins to 10 day with 2 Fully Programmable, Latching Alarms, per Channel with 1 sec to 10 days Alarm Delay. Red LED and Tinytag Explorer Connect Warnings with Email and SMS options. Reading are transmitter immediately, but Off-line Memory 2 Weeks @ 10 min logging. EU Radio frequency 869.88Mhz, power <5mW. Range up to 200m line of sight. IP67 Enclosure. Operating Temperature -20 to +55°C. Units are supplied with 2 x 1.5V Duracell Industrial ID1400 C Type Alkaline Batteries suitable 12 months operation.
