Tinytag Cryogenic PT1000 Probe is a designed with a flat, flexible cable that can pass through a fridge or freezer door seal without leaving a gap. The probe is an IP67 waterproof probe using a high specification resin, with unique manufacturing techniques that allow both the sheath and the cables to be exposed to their full temperature range.

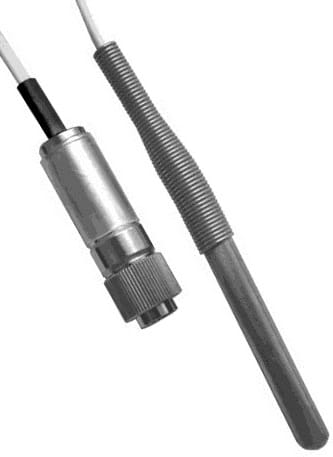

The PB-7005 is a specialist stainless steel probe with a 1.5m or 3m flat cable which can monitor very low temperatures from -200 to +150°C. It is typically used in laboratories for cryogenic applications. The flat, flexible cable is designed to pass through a fridge or freezer door seal without leaving a gap that a larger cable might leave. This waterproof (IP67) probe uses a high specification resin and a unique manufacturing technique that allows both the sheath and the cables to be exposed to their full temperature range
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP67 (Waterproof) | Sensor Type: | PT1000 (Class B) |
| Weight: | 53g (1.5m Cable Version) | Measuring Range: | -200 to 150°C (–328 to +302°F) |

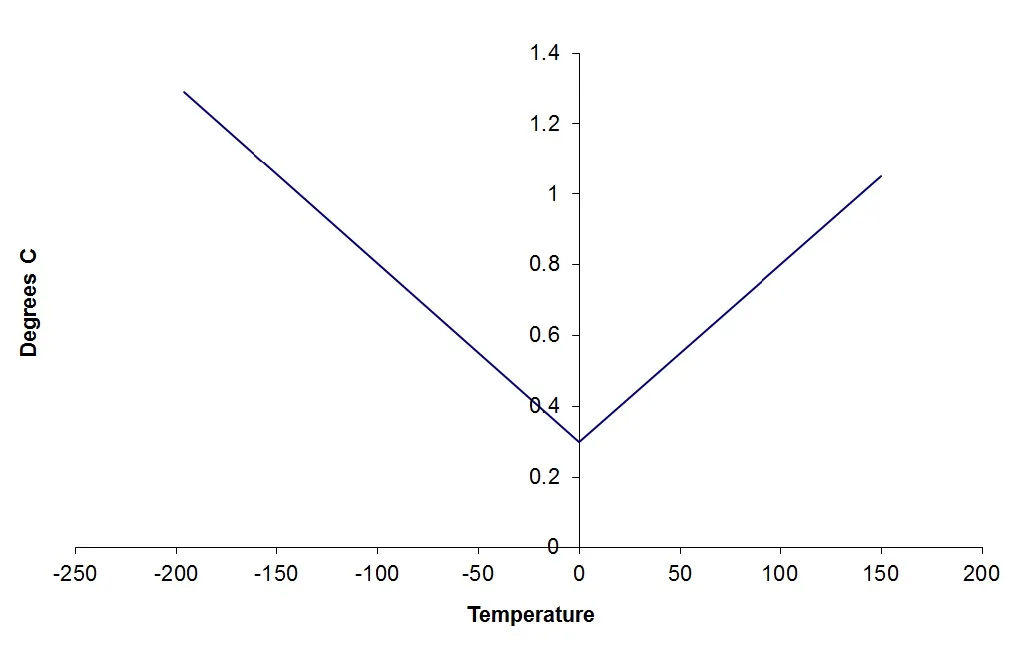

| Response Time Moving Air: | Better than 5 mins (to 90% FSD) | Sensor Accuracy: | |
| Probe Material: | 316 Stainless steel |  |
|
| Probe Temperature Rating: | -200 to +150°C (-328 to +302°F) | ||
| Cable Material: | Hyflon MFA. Do not flex below -70°C | ||
| Cable Temperature Rating: | -200 to +150°C (-328 to +302°F) | ||
| Ferrite Bead Temperature Rating: | 3 W 800 | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Bead/Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
| Tinytag Plus 2 model number: | TGP-4205 |
| Tinytag View 2 model number: | TV-4204 |
| Tinytag Ultra Radio model numbers: | TR-3201 |
| Tinytag Plus Radio model numbers: | TGRF-4201, TGRF-4202 |
| Tinytag Plus LAN model numbers: | TE-4201, TE-4202 |
PB-7005-1M5
£160.00
PB-7005-3M
£185.00
