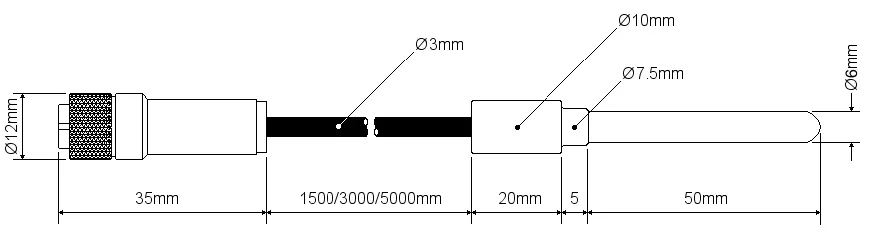

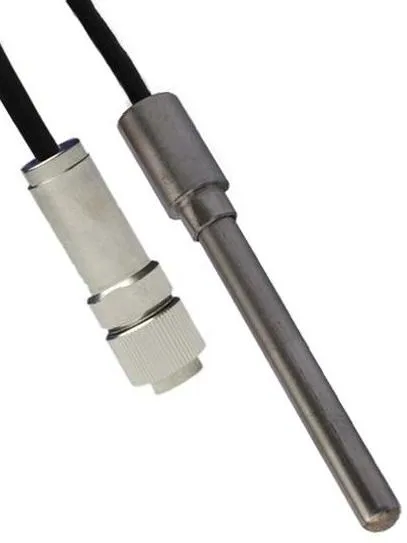

Tinytag Freezer PT1000 Probe with stainless steel probe with Silicone outer sheath and SPT Insulated cable, it is ideally suited to low temperature monitoring applications. The stainless steel probe is 50mm long and 6mm in diameter with 1.5m, 3m or 5m lengths. Temperature range -80 to 100°C with a 20 second response time in water. The Tinytag PB-7003 PT1000 probe will work with the TGP-4205 or TV-4204 data loggers.
The PB-7003 is a low temperature PT1000 probe available with 1.5m, 3m or 5m silicon outer with SPT core insulated cable. The probe is suitable for monitoring temperature ranges from -80 to +100°C and for a variety of low temperature applications, from frozen products going into freezers, or being taken out and thawed.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP66 (Splash-proof) | Sensor Type: | PT1000 (Class B) |
| Weight: | 65g | Measuring Range: | -80 to 100°C (-112 to +212°F) |

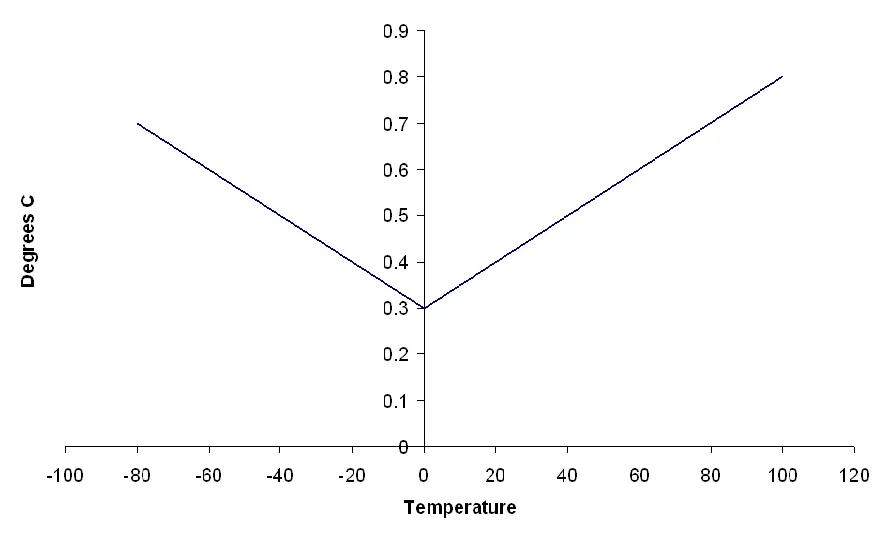

| Response Time Water: | 20 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Moving Air: | Better than 3 mins (to 90% FSD) |  |
|
| Probe Material: | 316 Stainless steel | ||
| Probe Temperature Rating: | -80 to +100°C (-112 to +212°F) | ||
| Cable Material: | Silicon Cable Outer Sheath with SPT Core Insulation | ||
| Cable Temperature Rating: | -80 to +100°C (-112 to +212°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
| Tinytag Plus 2 model number: | TGP-4205 |
| Tinytag View 2 model number: | TV-4204 |
| Tinytag Ultra Radio model numbers: | TR-3201 |
| Tinytag Plus Radio model numbers: | TGRF-4201, TGRF-4202 |
| Tinytag Plus LAN model numbers: | TE-4201, TE-4202 |
PB-7003-1M5
£95.00
PB-7003-3M
£105.00
PB-7003-5M
£115.00
