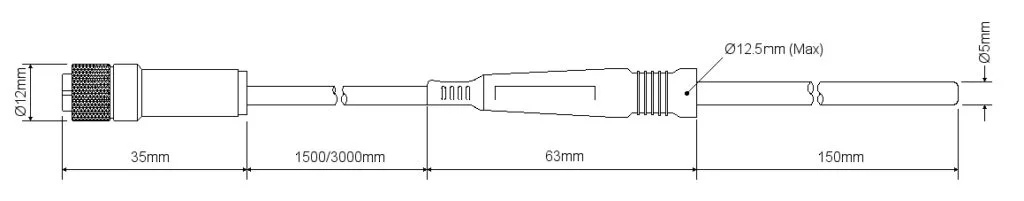

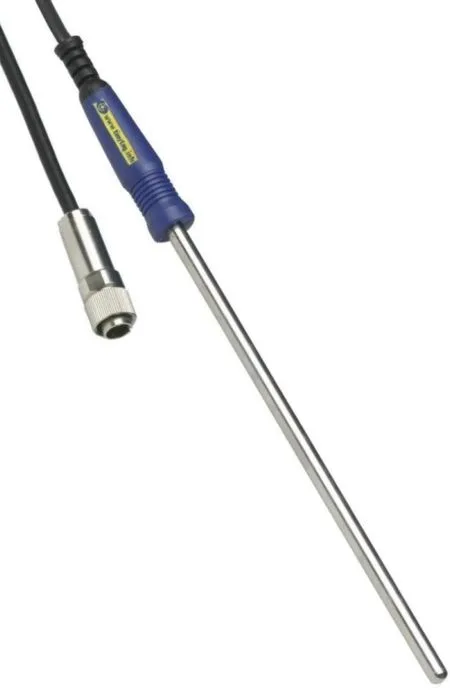

Tinytag Cyrogenic PT1000 Temperature Probe with moulded handle and connector (IP68 rated) for use with the TGP-4205 and TV-4204 data logger. The stainless steel probe is 150mm long and 5mm in diameter with a 1.5m or 3.0m cable. Temperature range -200 to +100°C with a 15 second response time in water.
The Tinytag PB-7002 is a Cryogenic temperature probe available with 1.5m or 3m cable. The probe is suitable for monitoring temperature ranges from -200 to +100°C and for a variety of low temperature applications, from monitoring the temperature of cryogenic products as they warm from being in a freezer. Its moulded plastic handle and connector may become brittle below -20°C.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (waterproof) | Sensor Type: | PT1000 (Class A) |
| Weight: | 70g (1.5m cable version) | Measuring Range: | -200 to +100°C (-328 to +212°F) |

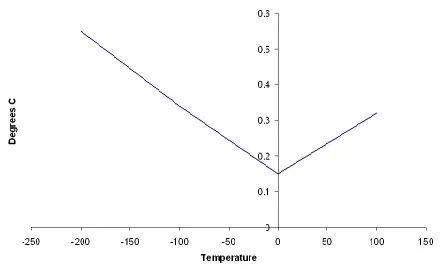

| Response Time Water: | 15 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Probe Material: | 316 Stainless steel |  |
|
| Probe Temperature Rating: | -200 to +100°C (-3288 to +212°F) | ||
| Handle Material: | Evoprene G 978 & PP7064L1 | ||
| Handle Temperature Rating: | †-40 to +130°C (-40 to +266°F) | ||
| Cable Material: | Silicone rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
†Handle may become brittle below -20°C (-4°F).
| Tinytag Plus 2 model number: | TGP-4205 |
| Tinytag View 2 model number: | TV-4204 |
| Tinytag Ultra Radio model numbers: | TR-3201 |
| Tinytag Plus Radio model numbers: | TGRF-4201, TGRF-4202 |
| Tinytag Plus LAN model numbers: | TE-4201, TE-4202 |
PB-7002-1M5
£45.00
PB-7002-3M
£75.00
