The PB-6006 is a high temperature stainless steel available with 1.5m or 3m heavy duty glass fibre overbraided cable. The probe is suitable for monitoring temperature ranges from -50 to +600°C and for a variety of high temperature applications, from monitoring of oven temperatures to temperature of hot food products.
| Physical Specifications | Sensor Specifications | ||
| Weight: | 80g | Sensor Type: | PT100 (Class A) |
| Response Time Water: | 30 Seconds (to 90% FSD) | Measuring Range: | -50 to 600°C (-58 to +1112°F) |
| Probe Material: | 316 Stainless steel | Sensor Accuracy: | |
| Probe Temperature Rating: | -50 to +600°C (-58 to +1112°F) |  |
|
| Sheath/Cable Join Material: | 316 Stainless steel | ||
| Handle Temperature Rating: | -50 to +600°C (-58 to +1112°F) | ||
| Cable Material: | Heavy duty glass fibre with stainless steel over-braid |
||
| Cable Temperature Rating: | -50 to +600°C (-58 to +1112°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||

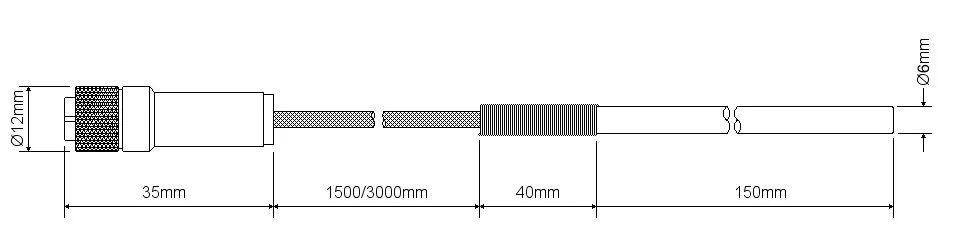

PB-6006 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Plus 2 model number: | TGP-4104 |
| Tinytag View 2 model number: | TV-4104 |
| Tinytag Ultra Radio model numbers: | TR-3101 |
| Tinytag Plus Radio model numbers: | TGRF-4101, TGRF-4102 |
| Tinytag Plus LAN model numbers: | TE-4101, TE-4102 |
