Description
The PB-6005 is a general purpose stainless steel temperature probe available with 1.5m or 3m cable. The probe is suitable for monitoring temperature ranges from -50 to +300°C and for a variety of general purpose temperature applications, from monitoring the temperature of food products as they cool from baking or chill in a fridge or freezer. Its moulded plastic handle and connector ensure it is robust and waterproof.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP68 (waterproof) | Sensor Type: | PT100 (Class A) |
| Weight: | 70g (1.5m cable version) | Measuring Range: | -50 to 300°C (-58 to +572°F) |

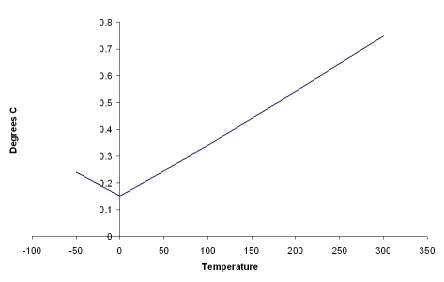

| Response Time Water: | 25 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Probe Material: | 316 Stainless steel |  |
|
| Probe Temperature Rating: | -50 to +300°C (-58 to +572°F) | ||
| Handle Material: | Evoprene G 978 & PP7064L1 | ||
| Handle Temperature Rating: | †-40 to +130°C (-40 to +266°F) | ||
| Cable Material: | Silicone rubber | ||
| Cable Temperature Rating: | -60 to +200°C (-76 to +392°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
†Handle may become brittle below -20°C (-4°F).

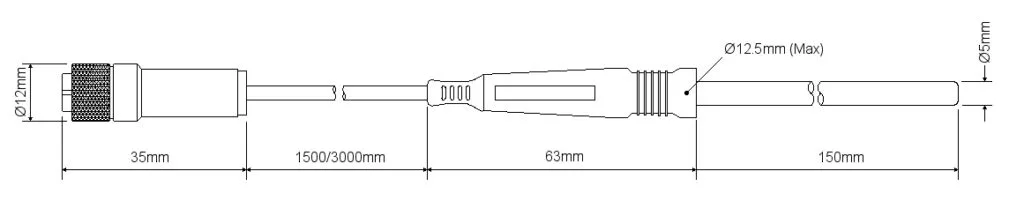

PB-6005 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Plus 2 model number: | TGP-4104 |
| Tinytag View 2 model number: | TV-4104 |
| Tinytag Ultra Radio model numbers: | TR-3101 |
| Tinytag Plus Radio model numbers: | TGRF-4101, TGRF-4102 |
| Tinytag Plus LAN model numbers: | TE-4101, TE-4102 |
