Tinytag Energy Logger

Description

The Tinytag energy logger can be used to monitor individual pieces of equipment through to complete buildings and installations. The logger can be used to measure a building’s incoming power supply or individual pieces of equipment. Suitable for monitoring single or three phase power supplies, it can be used as a hand-held unit for spot checks or as a data logger for longer term assessment. The recorded data can be used to build up energy usage profiles, to determine when pieces of equipment are being used, to troubleshoot power supply problems or highlight inefficient equipment that should be replaced.

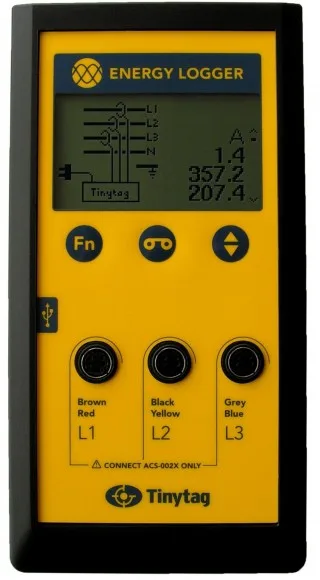

Tinytag Energy Logger Display

Features

  • Easy to use
  • High Accuracy
  • Small, Portable and Lightweight
  • Single and three phase monitoring
  • Records Voltage, Current, Power and Power Factor
  • Non-invasive Voltage and Current Connections
  • Record for Six Weeks (5 Minute Logging Interval)
  • Can be Started Without a Computer
  • Magnet For Hanging on Metal Panels



Specifications

Logging Interval: 30 seconds to 10 days
Reading Capacity: Six weeks at the default 5 minute logging interval

Current Range: 2,000A AC RMS (Momentary peak surge current: 2x rated range), resolution 0.1A
Voltage Range: 200-253V AC nominal, resolution 0.1V.
Frequency: Nominal 50/60Hz

Operational Range: 0 to +50°C, 95%RH (non-condensing). For indoor use only!
Case Dimensions: Length 195mm Width 102mm Depth 50mm
Weight: 600g (Including batteries)
PC Connection: USB

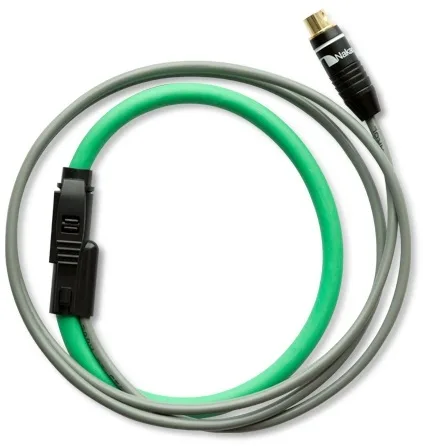

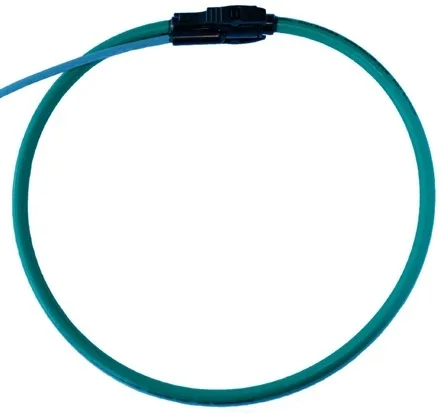

Rogowski Coils: Coil Thickness (Diameter) 8mm Internal Loop Diameter, 38mm. 85mm or 175mm, Cable Length 1m

Mains Power: UK or EU Mains plugs, 200-253vAC
Battery Type: 4 x 1.5V AA Alkaline Batteries
Battery Life: 60 days, typical, based on a battery capacity of 2500mAH*
Logger Current: 1.5mA (10mA when display Consumption backlight is on)

When fitting batteries, observe the correct polarity. *When a mains lead is plugged in, the logger will be mains powered. If the mains should fail, the batteries in the logger will typically keep it recording for 60 days.

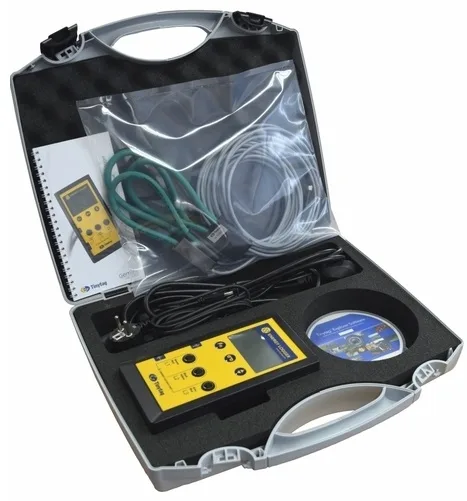

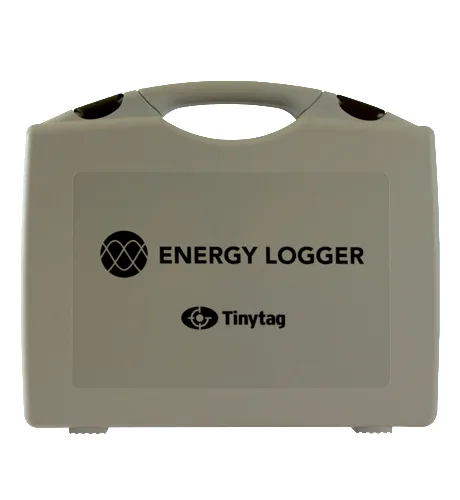

The Tinytag Energy logger is supplied in a carry case with three current coils, UK and EU mains leads, a USB cable, a copy of the Tinytag Explorer software and a user manual.

Please note: the Tinytag Energy Logger is only for sale in the EU and Australia.
