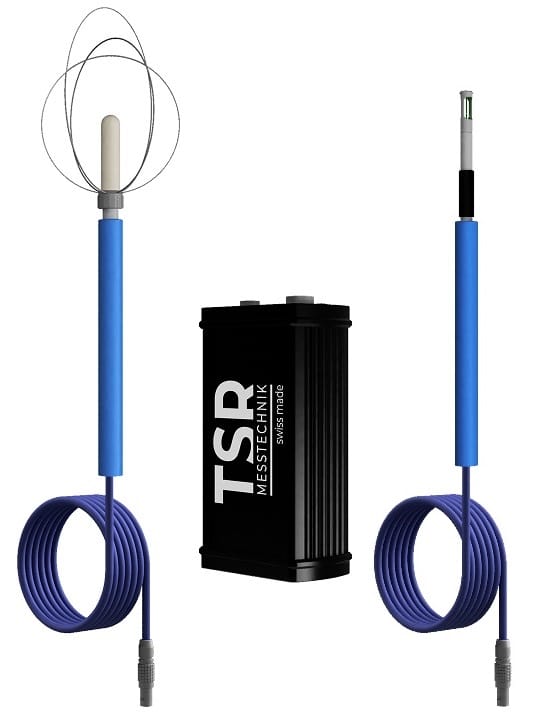

ThermoAir 6 & 64 Hot Wire Anemometer with 0-1V or 4-20mA Output

ThermoAir 6 & 64 Hot Wire Anemometer with 0-1V or 4-20mA Output

The ThermoAir 6 and 64 anemometers are ideal for low air flow measurement with high resolution (0.01-5m/s) where an analogue output is required to interface with external systems such as PLC’s data loggers or BMS systems. Features include automatic zero point calibration and temperature compensation from 0-40°C.

View Options

Need help finding the right product?

CONTACT US

Description

The ThermoAir6 and ThermoAir64 are specialist instrument for measuring very small air flow rates and determining degree of turbulence. Typical applications for the ThermoAir probes are very small flow rate measurements in laboratories, cleanrooms, air conditioning, drying and refrigeration installations, plus workplace comfort and well-being measurements with analogue inputs suitable for connection to control or monitoring systems in these locations.

Specifications



Probes ThermoAir 6
 ThermoAir 64
Power Supply
 15-26vDC
Current Consumption Approx. 35mA Approx. 40-60mA
Output Signal
 0 to 1V 4-20mA
IP Rating
 IP40 (Aluminium case)
Operating Temperature
 0 to 40°C



ThermoAir6/64 Probes Directional Air Probe
 Omni-Directional Air Probe
Flow Range 0.01 – 1 m/s or 0.15 – 5m/s
Compensated Temperature Range
 0 to +40°C
Sensing Head
 8mm 8mm (110mm protective basket)
Shaft Diameter 15mm 15mm
Probe length 300mm 310mm

The integrated temperature compensation and individual calibration in our accredited SCS wind tunnel are a guarantee of high precision.

Product

Ref

Price

Product Description

420.0100

£2,084.21

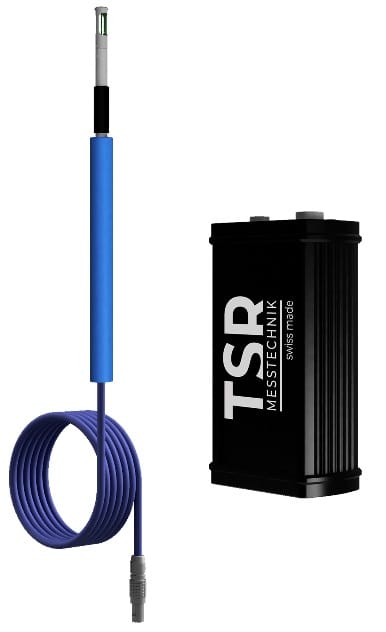

ThermoAir Pro Directional (V) Thermal-Electric Directional Anemometer. Air Velocity Range: 0.015-1m/s with a 0-1V Output. Accuracy ±1.0% of full scale. Sensing head 8mm diameter, handle 15mm diameter, probe length 300mm. The required diameter of the retraction opening for the probe is 9mm. The sensor can be used at temperatures from 0 to +60°C with automatic temperature compensation at 0 to 60°C. The associated cable for connection to the remote transmitter has a total length of 2m and is fitted with 2 lemo connectors. Power supply 9-26vDC. The sensor can be plugged into the measuring transducer housing or used separately from it. Aluminium transmitter housing measures 100 x 60 x 35mm. Thermo-electric anemometer suitable for dry instrument air or inert gas air flows.
MORE INFO
Add to basket

420.0101

£2,084.21

ThermoAir Pro Directional (V) Thermal-Electric Directional Anemometer. Air Velocity Range: 0.015-5m/s with a 0-1V Output. Accuracy ±1.0% of full scale. Sensing head 8mm diameter, handle 15mm diameter, probe length 300mm. The required diameter of the retraction opening for the probe is 9mm. The sensor can be used at temperatures from 0 to +60°C with automatic temperature compensation at 0 to 60°C. The associated cable for connection to the remote transmitter has a total length of 2m and is fitted with 2 lemo connectors. Power supply 9-26vDC. The sensor can be plugged into the measuring transducer housing or used separately from it. Aluminium transmitter housing measures 100 x 60 x 35mm. Thermo-electric anemometer suitable for dry instrument air or inert gas air flows.
MORE INFO
Add to basket

420.0110

£2,518.98

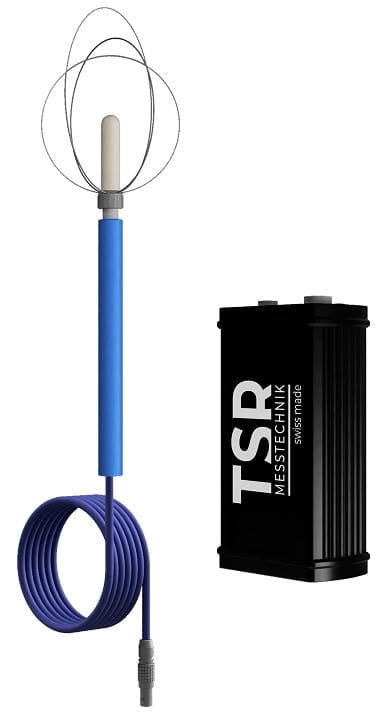

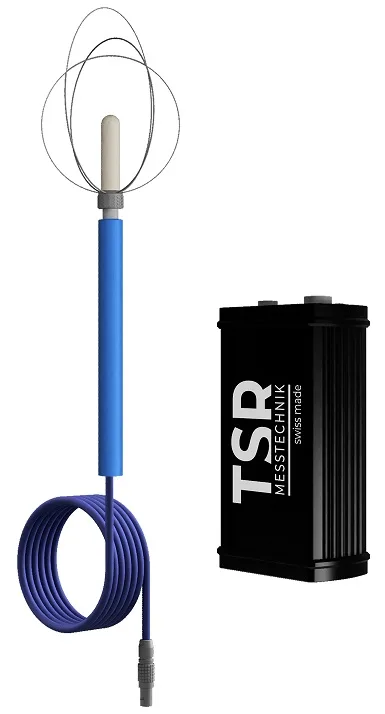

ThermoAir Pro Omnidirectional (V) Thermal-Electric Omnidirectional Anemometer. Air Velocity Range: 0.015-1m/s with a 0-1V Output. Accuracy ±1.0% of full scale. Sensing head surrounded by a removable 110mm diameter protective cage, handle 15mm diameter, probe length 270mm. The probe measures the flow velocity from all directions in the measuring plane perpendicular to the probe axis. The sensor can be used at temperatures from 0 to +60°C with automatic temperature compensation at 0 to 60°C. The associated cable for connection to the remote transmitter has a total length of 2m and is fitted with 2 lemo connectors. Power supply 9-26vDC. The sensor can be plugged into the measuring transducer housing or used separately from it. Aluminium transmitter housing measures 100 x 60 x 35mm. Thermo-electric anemometer suitable for dry instrument air or inert gas air flows.
MORE INFO
Add to basket

420.0111

£2,518.98

ThermoAir Pro Omnidirectional (V) Thermal-Electric Omnidirectional Anemometer. Air Velocity Range: 0.015-5m/s with a 0-1V Output. Accuracy ±1.0% of full scale. Sensing head surrounded by a removable 110mm diameter protective cage, handle 15mm diameter, probe length 270mm. The probe measures the flow velocity from all directions in the measuring plane perpendicular to the probe axis. The sensor can be used at temperatures from 0 to +60°C with automatic temperature compensation at 0 to 60°C. The associated cable for connection to the remote transmitter has a total length of 2m and is fitted with 2 lemo connectors. Power supply 9-26vDC. The sensor can be plugged into the measuring transducer housing or used separately from it. Aluminium transmitter housing measures 100 x 60 x 35mm. Thermo-electric anemometer suitable for dry instrument air or inert gas air flows.
MORE INFO
Add to basket

420.0200

£2,084.21

ThermoAir Pro Directional (mA) Thermal-Electric Directional Anemometer. Air Velocity Range: 0.015-1m/s with a 4-20mA Output. Accuracy ±1.0% of full scale. Sensing head 8mm diameter, handle 15mm diameter, probe length 300mm. The required diameter of the retraction opening for the probe is 9mm. The sensor can be used at temperatures from 0 to +60°C with automatic temperature compensation at 0 to 60°C. The associated cable for connection to the remote transmitter has a total length of 2m and is fitted with 2 lemo connectors. Power supply 9-26vDC. The sensor can be plugged into the measuring transducer housing or used separately from it. Aluminium transmitter housing measures 100 x 60 x 35mm. Thermo-electric anemometer suitable for dry instrument air or inert gas air flows.
MORE INFO
Add to basket
