Description

Features

• Four-channel type K thermocouple inputs
• Range -99.9 to +1372°C
• Biomaster ABS Case
• Programmable High & Low Alarms
• Easy-to-read LCD display

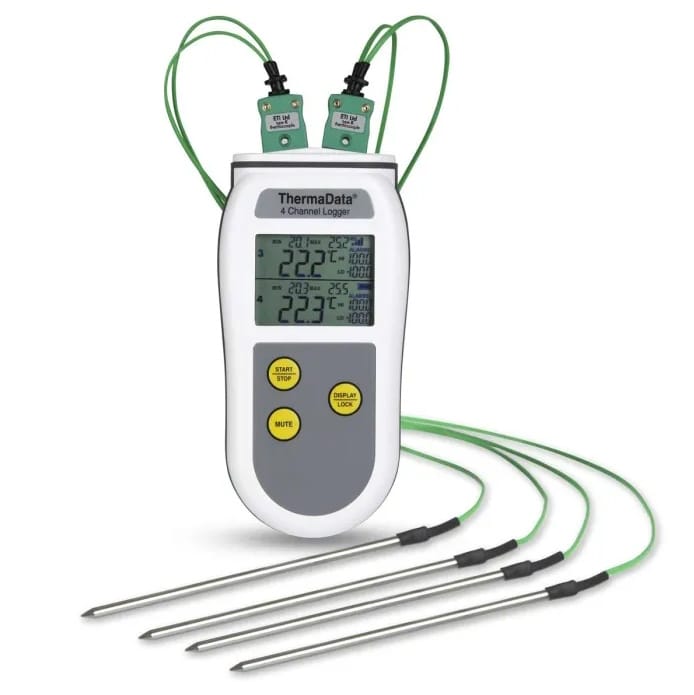

The ThermaData 4 Channel Logger is housed in an ergonomic, ABS case that includes Biomaster Antimicrobial Technology to reduce bacterial growth. An integrated rubber seal ensures complete water resistance and helps reduce the possibility of damage in harsh environments. The 4 Channel Logger can measure temperature over the range of -99.9 to 1372 °C with a suitable K-Type Thermocouple probe. Resolution is 0.1°C up to 300°C, auto-ranging to 1°C between 300 to 1372 °C.

Featuring an easy-to-read LCD, the ThermaData 4 Channel Logger displays temperature, high and low limits, max/min recorded temperatures and volume level. The LCD can either be toggled from T1 & T2 to T3 & T4, or locked, using the DISPLAY / LOCK button. A multi logging feature also allows this instrument to be started and stopped in order to map multiple processes, without downloading the data each time. Each channel can record up to 16,000 readings at programmable intervals. Programmable audible alarms allows the user to preset high and low temperature limits for any logging process. The alarm can be silenced by pressing MUTE on the front of the instrument.

Each instruments comes with a traceable certificate of calibration.

ThermaData Studio Software

Each ThermaData 4 Channel Logger is connected to a PC via the free USB C lead and downloadable software supplied with each instrument. By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary. The information can then be analysed by zooming in, saving as a Studio File or exporting to other software packages.

We can offer an extensive range of interchangeable type K thermocouple probes for a variety of different applications. A selection can be found in the ThermaData 4 Datasheet.
