Description

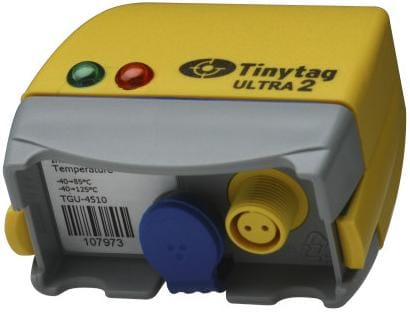

The TGU-4510 Tinytag Ultra 2 data loggers include an internal and connection for an external probe. These loggers are ideally suited to monitor environmental temperature and the temperatures of materials or surfaces in the same environment. The loggers provide accurate temperature monitoring with an internally mounted 10K NTC thermistor and a connector for external Tinytag Thermistor probes. The logger will retain up to total of 32,000 readings. The TGU-4510’s are ideal for comparing ambient and process condition readings. They are also widely used to help assess conditions during pharmaceutical production, dry goods storage and ambient to surface temperature differences. Multiple loggers may also be used together to allow the comparison of temperatures in different areas of the production, storage or locations.

Features

• Internal Temperature Range: -40 to +85°C
• External Temperature Range: -40 to +125°C
• Internal memory for up to 32,000 readings
• Logging rates from 1 sec up to 10 days.
• 2 user programmable alarms
• Delayed start option (up to 45 days)
• Triggered start option
• IP54 splashproof casing with mounting hole
• User replaceable battery

Popular Applications

• Office and housing environment monitoring
• Pharmaceutical manufacture
• Dry food storage
• Museum display and repository
• Building condition monitoring
• Indoor temperature & humidity profiling.

Logger Specifications
Total Reading Capacity:	32,000 Readings	Memory Type:	Non-Volatile
Reading Types:	Actual, Min, Max	Logging Interval:	1 sec to 10 days
Delayed Start:	Relative Absolute (up to 45 days)	Stop Options:	When full After n Readings Never (overwrite oldest data)
Battery:	½AA 3.6V Lithium	IP Rating:	IP54 Splashproof
Battery Life:	Annual Replacement	Alarms:	2 fully programmable; latchable
Internal Temperature Sensor Specifications		External Temperature Sensor Specifications
Reading Range:	-40 to +85°C (-40 to +185°F)	Reading Range:	-40 to +125°C (-40 to +257°F)
Sensor Type:	Internal 10K NTC Thermistor Sensor	Sensor Type:	External 10K NTC Thermistor Sensor
Response Time:	20 mins to 90% FSD in moving air	Response Time:	Depends on probe used.
Resolution:	0.01°C or better	Resolution:	0.02°C of better

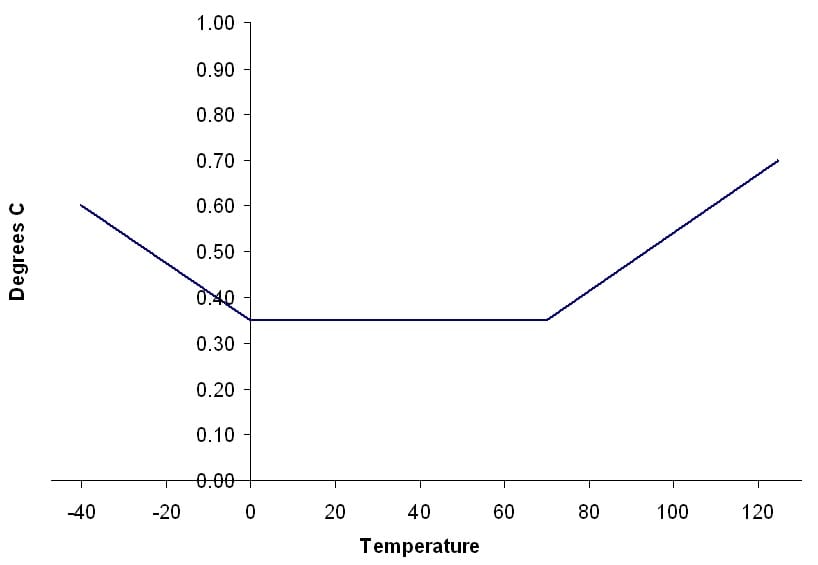

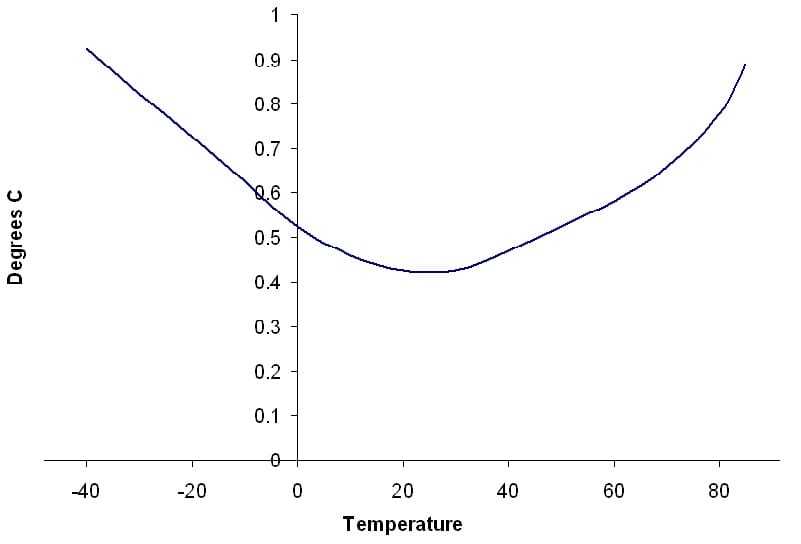

Accuracy:		Accuracy:

The TGU-4510 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
