Description

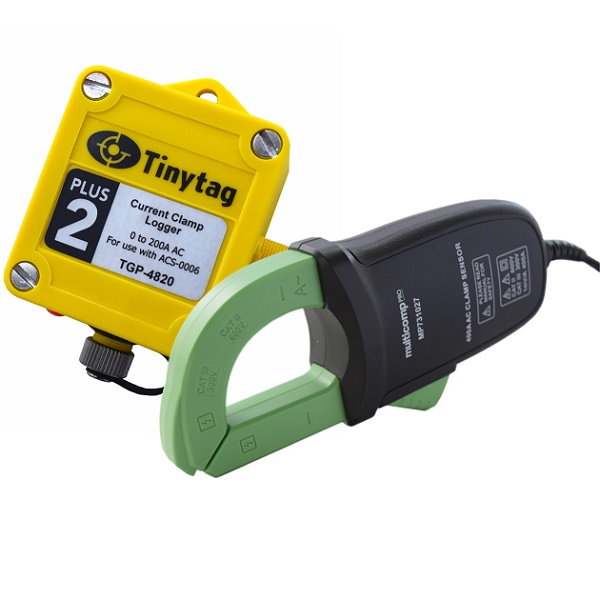

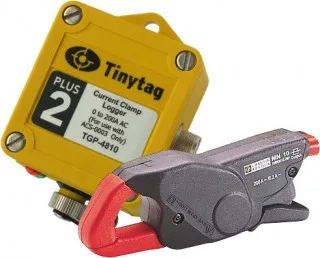

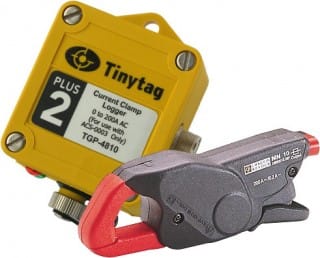

The TGP-4820 is an AC Current Data Logger with a clip-on current clamp. It is ideal for monitoring mains current consumption and for determining when equipment has a higher current drain. This accurate and reliable unit measures current from 0 to 200A AC and is suitable for conductor sizes up to 28mm.
Features
- Logger with clip-on current clamp
- Range 0 to 200A AC Current
- Robust case
- 2 user programmable alarms
- 208,320 reading memory
- High reading resolution of 10mA
- Fast data offload
- User-replaceable battery
Specifications
| Physical Specifications | Sensor Specifications | ||
| Total Reading Capacity: | 208,320 Readings | Sensor Type: | Current Clamp (ACS-0006) |
| Memory Type: | Non-Volatile | Measuring Range: | 0-200A AC Current |
| Trigger Start: | Magnetic Switch | Frequency Range: | 50 to 400Hz |
| Delayed Start: | Relative/Absolute (up to 45 days) | Reading Resolution: | 10mA |
| Stop Options: | When full After n Readings Never (overwrite oldest data) |
Accuracy*: | ±2.5% ±0.5A @ 50Hz to 60Hz ±2.8% ±0.5A @ 60Hz to 400Hz |
| Reading Types: | Actual, Min, Max | Cable Length: | 1.1m |
| Logging Interval: | 1 sec to 10 days | Conductor Size: | 28mm |
| Alarms: | 2 fully programmable; latchable | Current Clamp Output: | 1mV/A |
| Operating Temperature: | -25 to +85°C (-13 to +185°F) | Operating Temperature: | 0 to 40°C |
| Case Dimension (HxWxD): | 34 x 59 x 80mm | Clamp Dimension (HxWxD): | 33 x 65 x 158mm |
| Weight: | 100g | Weight: | 215g |
* If the logger is used in an RF field with a strength of 1V/m, the overall accuracy is the specified accuracy ±5% of range. The logger is not specified for use in RF fields with a strength greater than 1V/m.
You will also require Tinytag Explorer software and a CAB-0007-USB data download cable to use these loggers. These are available separately or as a pack (SWPK-7-USB).
