Description

The TGP-4505 Tinytag Plus 2 data loggers have been specifically designed for monitoring the temperature and relative humidity conditions in outdoor or industrial applications. The data logger is housed in a waterproof (IP68) housing with a replaceable temperature and humidity probe. This probe features a coated RH sensor that has good resistance to moisture and condensation, ensuring measurement reliability. It also has a much faster response rate than the ones fitted to the logger casing. The Tinytag Plus 2 loggers are ideal for monitoring environmental conditions in greenhouses, poly tunnel agriculture, food processing or storage, pharmaceutical manufacture, conservation projects and most harsh environmental monitoring applications.

Features

• Temperature Range: -25 to +85°C
• Relative Humidity Range: 0 to 100%
• Separate Temp & RH Probe with faster response
• Internal memory for up to 32,000 readings
• Logging rates from 1 sec up to 10 days.
• Highly visible bright yellow casing
• 2 user programmable alarms
• Delayed and trigger start options
• IP68 waterproof casing
• User replaceable battery
• USB download cable option

Popular Applications

• Environmental monitoring
• Glass house and poly tunnel farming
• Food processing and storage
• Pharmaceutical manufacture
• Warehouse monitoring
• Forestry environmental monitoring
• Conservation projects

Logger Specifications
Total Reading Capacity:	32,000 Readings	Memory Type:	Non-Volatile
Reading Types:	Actual, Min, Max	Logging Interval:	1 sec to 10 days
Delayed Start:	Relative Absolute (up to 45 days)	Stop Options:	When full After n Readings Never (overwrite oldest data)
Battery:	½AA 3.6V Lithium	IP Rating:	IP68 Waterproof
Battery Life:	Annual Replacement	Alarms:	2 fully programmable; latchable
Temperature Sensor Specifications		Humidity Sensor Specifications
Reading Range:	-25 to +85°C (-13 to +185°F)	Reading Range:	0-100% RH
Sensor Type:	Internal 10K NTC Thermistor Sensor	Sensor Type:	Integral Capacitive Sensor
Response Time:	3 mins to 90% FSD in moving air	Response Time:	40 seconds to 90% FSD
Resolution:	0.01°C or better	Resolution:	0.3%RH  or better

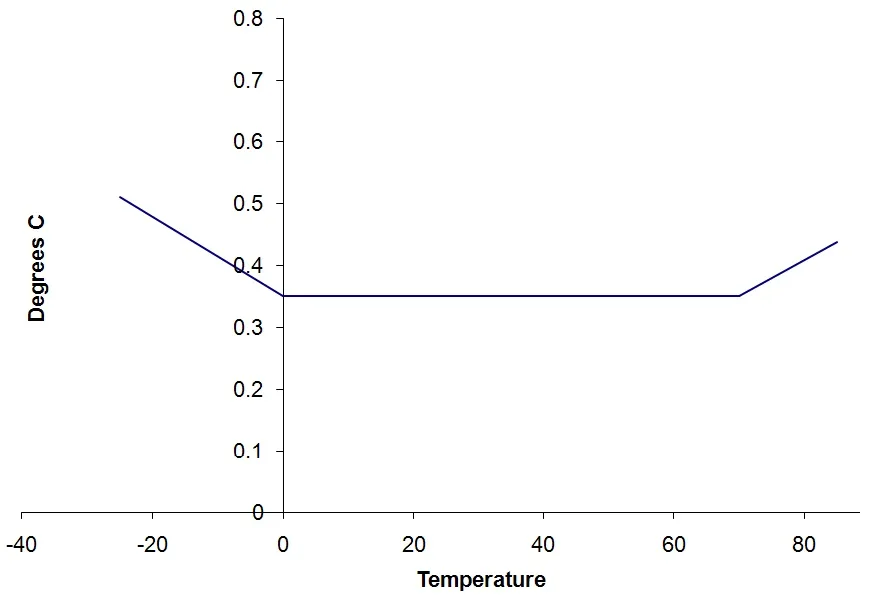

Accuracy:		Accuracy:	±3%RH at 25°C

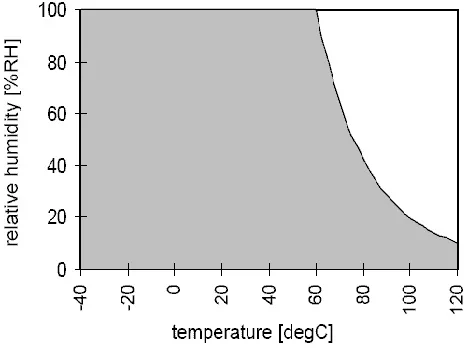

		RH Sensor Working Range:

The TGP-4500 can be downloaded using the USB cable, Ref CAB-0007-USB. The download cable connects to the base of the logger and allows for configuration and downloading data.
