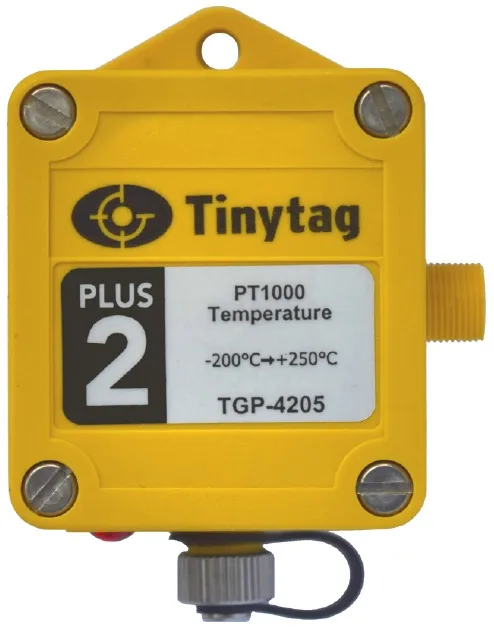

TGP-4205 Tinytag Plus 2 External PT1000 Temperature Logger with an IP68 rated housing. Temperature range -200 to +250°C. Memory 32,000 readings with delayed and magnetic switch trigger start options, plus 2 programmable alarms. Logging intervals 1 sec to 10 days with min, max & actual readings. Operating temperature range -40 to +85°C. Data can be downloaded via the CAB-0007-USB cable. Replaces the TGP-4504 Logger. (External PT1000 Probes available separately).
£140.00
The TGP-4205 is in the Tinytag Plus 2 range of Tinytag loggers and works with an external PT1000 Temperature sensors. The robust and waterproof (IP68 rated) housing, specifically designed for challenging indoor and outdoor environments.
Laboratory monitoring, including:
| Logger Specifications | Sensor Specifications | ||
| Total Reading Capacity: | 32,000 Readings | Sensor Type: | External PT1000 Temperature Probe |
| Memory Type: | Non-Volatile | Measuring Range: | -200 to +250°C (-328 to +482°F) |
| Trigger Start: | Magnetic Switch | Reading Resolution: | 0.01°C or better |
| Delayed Start: | Relative/Absolute (up to 45 days) | Sensor Accuracy: (Graph below is based on Class A or B PT1000 probes) | |
| Stop Options: | When full After n Readings Never (overwrite oldest data) |
 |
|
| Reading Types: | Actual, Min, Max | ||
| Logging Interval: | 1 sec to 10 days | ||
| Alarms: | 2 fully programmable; latchable | ||
| Operational Temperature Rating: | -40 to +85°C (-40 to +185°F) | ||
| IP Rating: | IP68 (Waterproof) | ||
| Case Dimension (HxWxD): | 34 x 59 x 80mm | ||
| Weight: | 95g | ||

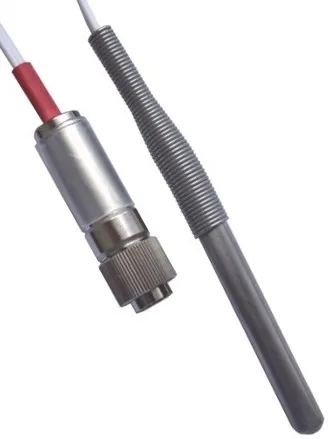

This Logger can be used with the PT1000 from the Tinytag PT1000 probes.
PB-7005-1M5
£160.00
PB-7005-3M
£185.00
PB-7006-1M5
£105.00
PB-7006-3M
£115.00
