Description

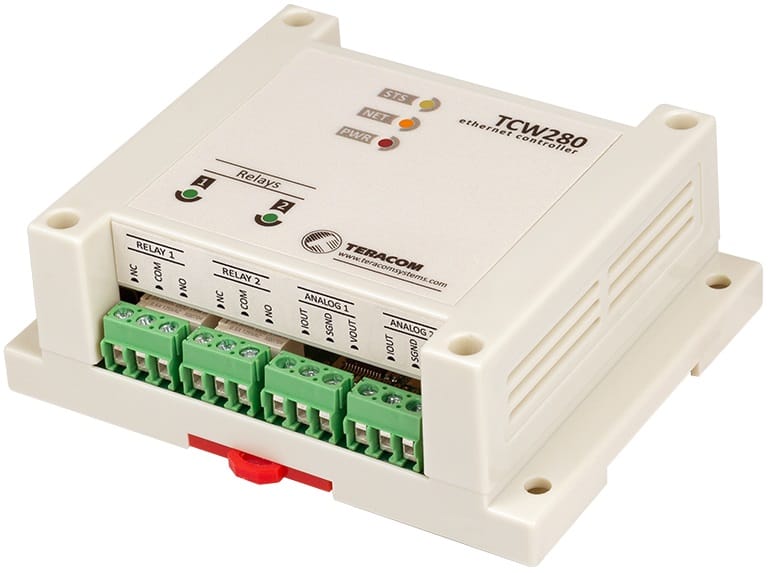

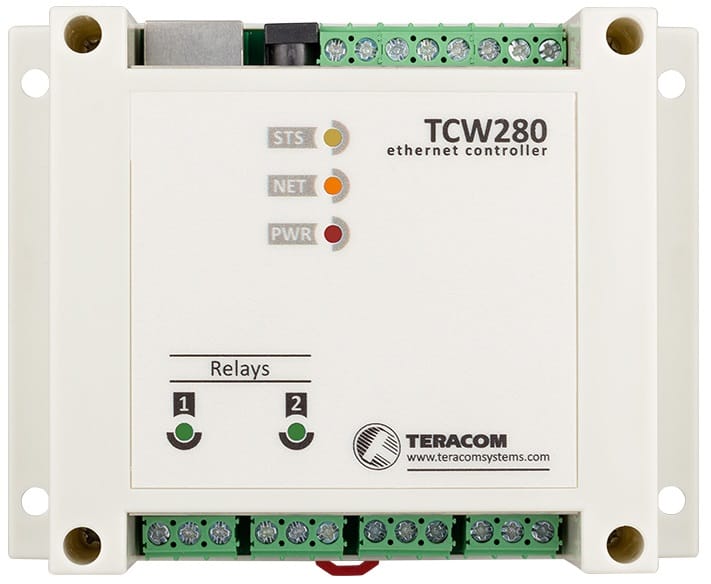

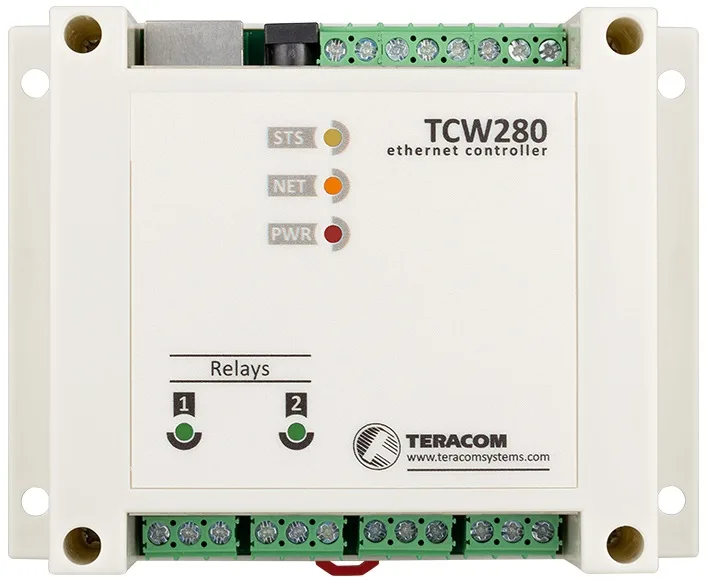

The TCW280 is an analogue output module offering dual channels capable of generating voltage or current loop signals, with the output mode selectable through a web-based interface. Available output ranges include 0-20mA, 4-20mA, 0-24mA, 0-5V, and 0-10V, each with a 12-bit digital-to-analogue conversion resolution. Four digital outputs are available, offering dual functionality as standard digital control signals (On/Off) or as PWM outputs with a frequency range up to 2000Hz and 10-bit duty cycle resolution.

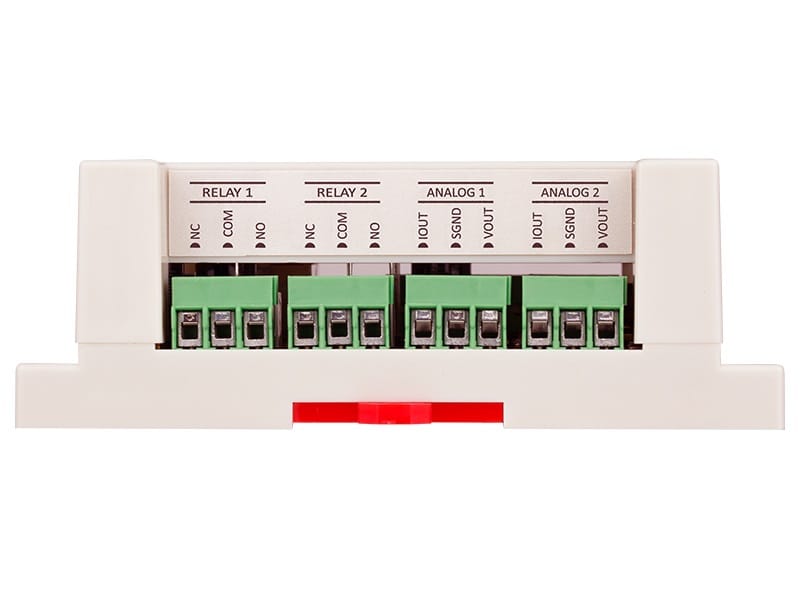

For control and automation, the TCW280 module integrates two relays with Normally Open and Normally Closed contacts, which can be remotely controlled via the web interface or through M2M protocols like SNMP, HTTP API, and Modbus TCP/IP. A sophisticated scheduling system allows for the definition of four distinct schedules for one-time or recurring weekly events, with a timing resolution of 100 milliseconds. The onboard RTC, synchronized with network time servers, ensures accurate timing for the automatic activation of both the relays and digital outputs according to the configured schedules.

Features

• 2 analogue voltage or current loop outputs with 12-bit resolution

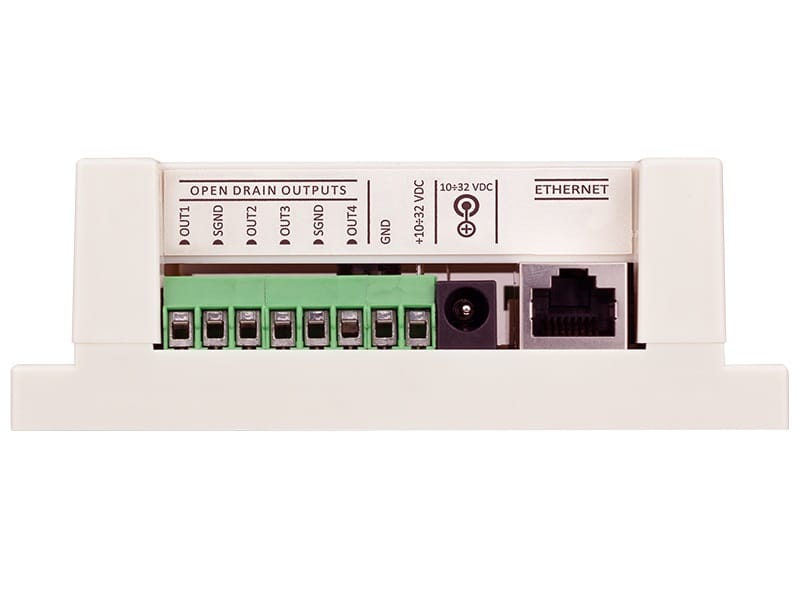

• 4 open drain outputs with PWM and ON/OFF modes
• 2 relays with normally open and normally closed contacts
• Modbus TCP/IP support
• SNMP v.2 support
• SNMP traps to up to 5 recipients like alarm alert
• Password protected WEB based configuration and control
• Periodical HTTP Post for client-server systems
• XML/JSON status files
• HTTP API commands
• NTP support
• Dynamic DNS support
• Back/restore for easy device settings multiplications
• Remote firmware update over the WEB interface

Applications

• Аnalogue output module for industrial automation
• Remote valves/actuators control
• Scheduled control for industrial processes

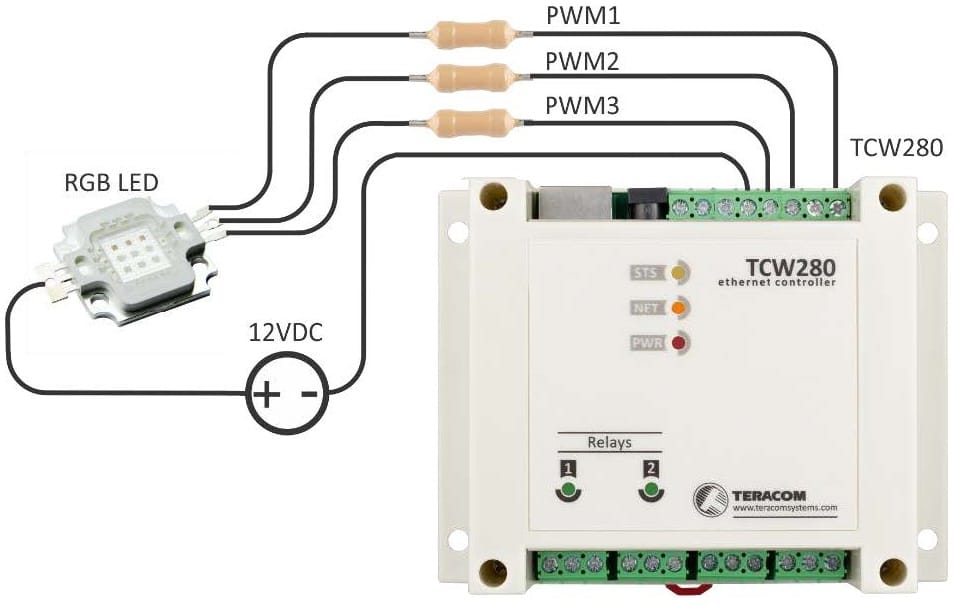

• Dimming LED (Light-emitting diode) lights
• Supervisory control
• An integral part of small to large SCADA systems
