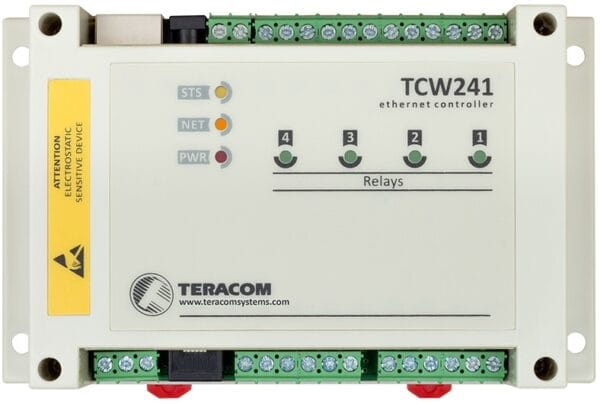

The TCW241 Ethernet IO module with RJ45 Ethernet Port. Four digital, four analogue inputs and 4 relay outputs with Normally Open and Normally Closed contacts. 1-Wire sensor Interface for Eight sensors. Relays can be operated using Web interface, M2M protocol or by schedule with an embedded real-time clock. Power Supply 10-28vDC.
£150.56
The TCW241 is an Ethernet IO module designed for remote monitoring and control, featuring Modbus TCP/IP support. This device is equipped with four digital inputs, four analogue inputs, and four relays. The TCW241 also include 1-Wire interface, supporting up to eight 1-Wire sensors, enabling the monitoring of parameters such as temperature, humidity, Carbon Dioxide, and AC/DC current. The module’s relays can be activated both remotely via a user-friendly web interface or M2M protocols, and locally based on a schedule, the status of a single parameter, or through custom functions involving up to four parameters.
Furthermore, the TCW241 supports industry-standard protocols including Modbus TCP/IP, SNMP, and HTTP API, ensuring seamless integration with various systems. A built-in real-time clock with time server synchronisation facilitates advanced relay scheduling for one-time or recurring weekly tasks. The module can also proactively communicate with remote servers by initiating HTTP Post requests, sending data in XML or JSON format containing current monitoring values, either periodically or upon predefined alarm conditions.
| Analogue Input | 0-60vDC |
| Digital Input | Non-Isolated Dry contact, Max 5.5vDC. |
| Digital Outputs | ON/OFF or PWM (Web Interface Selectable) |
| Relay Outputs | NO or NC contacts |
| Rating | 3A @ 24VDC or 30VAC |
| 1-Wire Interface | Up to 8 temperature or temperature/humidity sensors |
| Internal Battery | CR1220 Back-up Lithium Battery |
| Power Supply | 10-28vDC |
| Power Consumption | 350mA @ 12vDC |
| Dimensions: | 145 x 90 x 40mm |
| Weight | 230g |
| Operating Temperature | -20 to -55°C (5-85%RH) |
| Warranty | 3 Years |

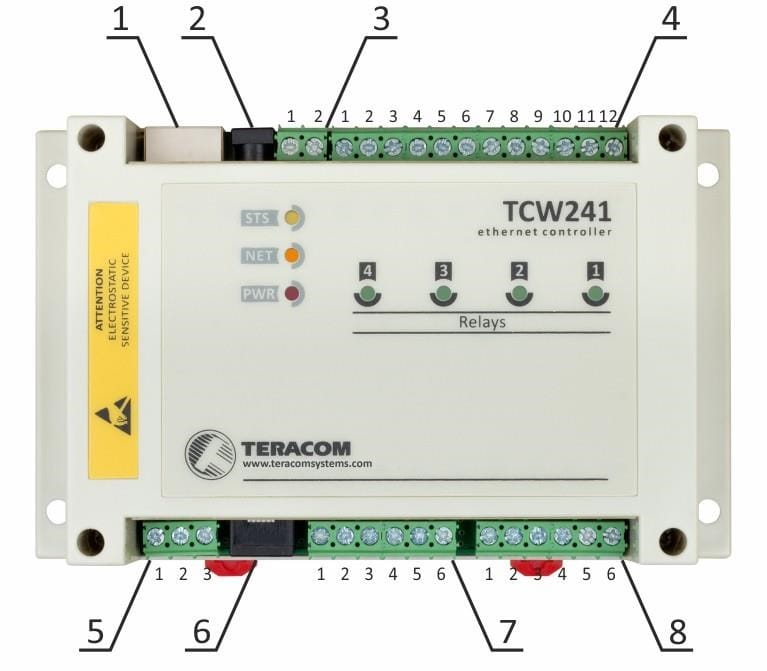

| Connector | Description | Connector | Description |
| Connector 1 | Ethernet – RJ45 | Connector 6, Pin 1 | Ground (Most Left) |
| Connector 2 | Power – 2.1×5.5mm connector, central positive | Connector 6, Pin 2 | Ground |
| Connector 3, Pin 1 | Power +ve | Connector 6, Pin 3 | 1-Wire Data |
| Connector 3, Pin 2 | Power -ve | Connector 6, Pin 4 | 1-Wire Ground |
| Connector 4, Pin 1 | Normally Closed Relay 4 | Connector 6, Pin 5 | 1-Wire +VDD |
| Connector 4, Pin 2 | Common Relay 4 | Connector 6, Pin 6 | 1-Wire +VDD (Most Right) |
| Connector 4, Pin 3 | Normally Open Relay 4 | Connector 7, Pin 1 |
Digital In 1 |
| Connector 4, Pin 4 | Normally Closed Relay 3 | Connector 7, Pin 2 | Ground |
| Connector 4, Pin 5 | Common Relay 3 | Connector 7, Pin 3 | Digital In 2 |
| Connector 4, Pin 6 | Normally Open Relay 3 | Connector 7, Pin 4 | Digital In 3 |
| Connector 4, Pin 7 | Normally Closed Relay 2 | Connector 7, Pin 5 | Ground |
| Connector 4, Pin 8 | Common Relay 2 | Connector 7, Pin 6 | Digital In 4 |
| Connector 4, Pin 9 | Normally Open Relay 2 | Connector 8, Pin 1 | Analogue In 1 |
| Connector 4, Pin 10 | Normally Closed Relay 1 | Connector 8, Pin 2 | Ground |
| Connector 4, Pin 11 | Common Relay 1 | Connector 8, Pin 3 | Analogue In 2 |
| Connector 4, Pin 12 | Normally Open Relay 1 | Connector 8, Pin 4 | Analogue In 3 |
| Connector 5, Pin 1 | 1-Wire Ground | Connector 8, Pin 5 | Ground |
| Connector 5, Pin 2 | 1-Wire Data | Connector 8, Pin 6 | Analogue In 4 |
| Connector 5, Pin 3 | 1-Wire +VDD |
