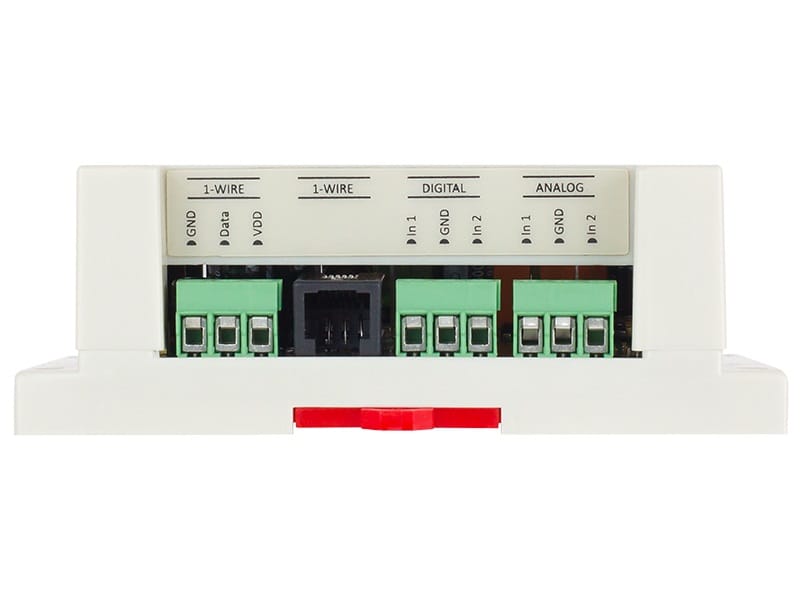

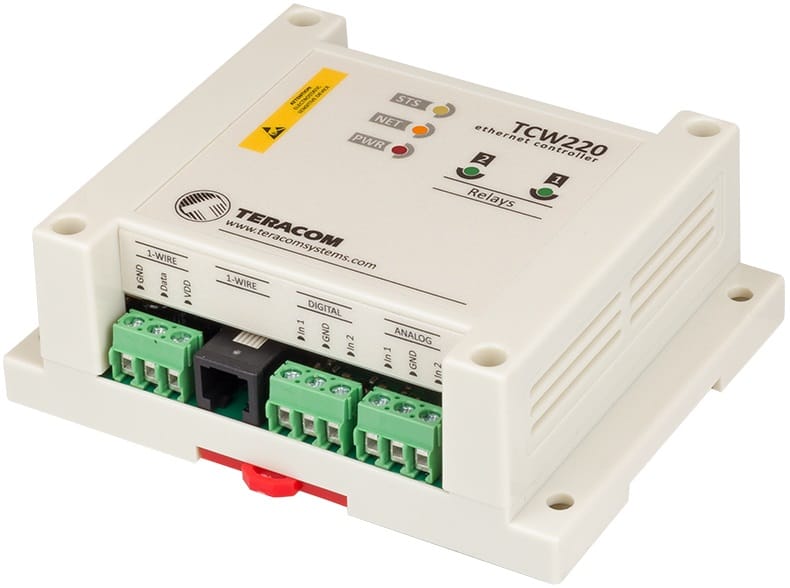

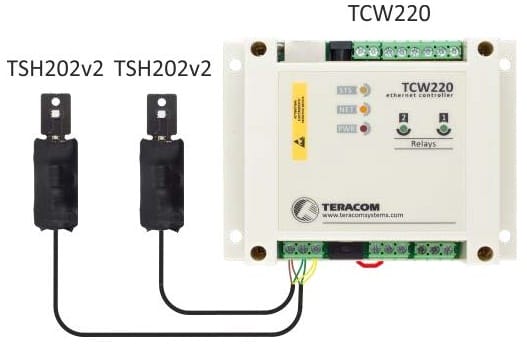

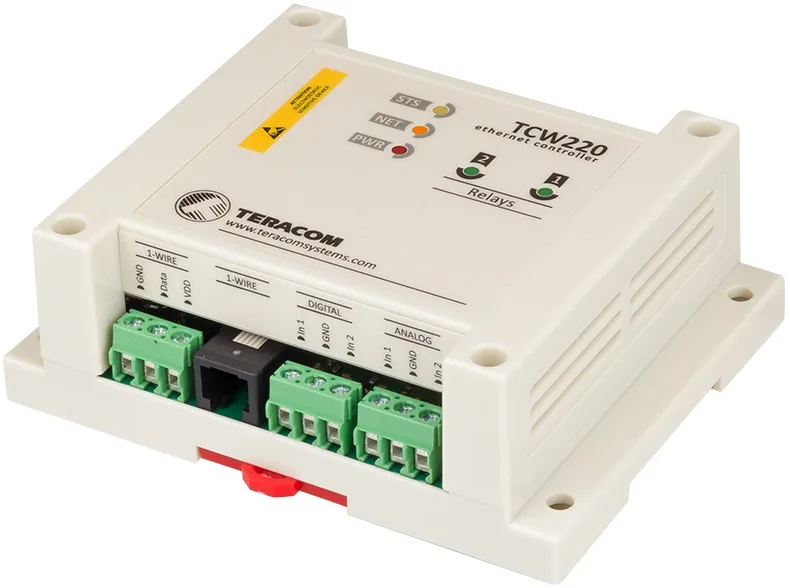

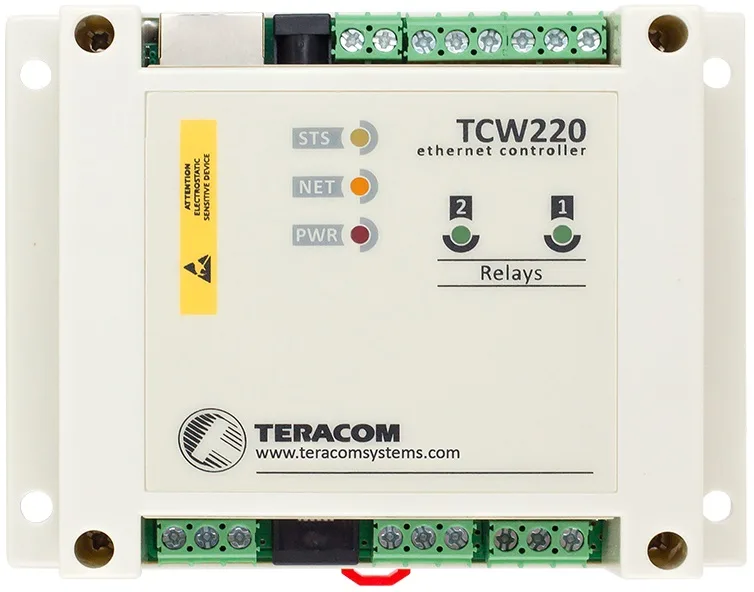

The TCW220 is an Ethernet data logger with two 0-10V analogue and 2 digital inputs channels. The unit also includes 2 relay outputs that can be activated remotely, or locally based on input channels. The TCW220 featuring an integrated web server, providing real-time monitoring and intuitive chart visualisation of all channels directly within a standard web browser. The TCW220 includes SNMP, Modbus TCP/IP, and HTTP/API, ensuring seamless integration into a wide array of industrial automation, building management, and environmental monitoring systems. The logger accommodates up to eight 1-wire sensors, offering flexible connectivity through both the user friendly 1-Wire interface, commonly utilised in home automation setups.
The TCW220 is an Ethernet data logger for general data acquisition, featuring two 10-bit analogue inputs, two digital inputs, and a 1-Wire interface for up to eight sensors (CO2, current, temperature, humidity, etc.). It also includes two Normally Open/Closed relays. All monitored parameters can be logged based on time or alarms, with a 36 day (minimum, 1-minute intervals) memory capacity. Logged data and real-time parameter values (in XML/JSON) can be periodically uploaded via HTTP POST.
The device supports remote relay control (WEB, SNMP, HTTP, Modbus TCP/IP) and local relay activation based on monitored parameters. It facilitates SCADA system development through HTTP POST command reception. Alarm notifications (email, SNMP trap) for up to five recipients and alarm status reports (HTTP POST with XML/JSON) are supported for all monitored parameters.
| Analogue Inputs | 0-10V Voltage |
| Digital Inputs | Dry Contact |

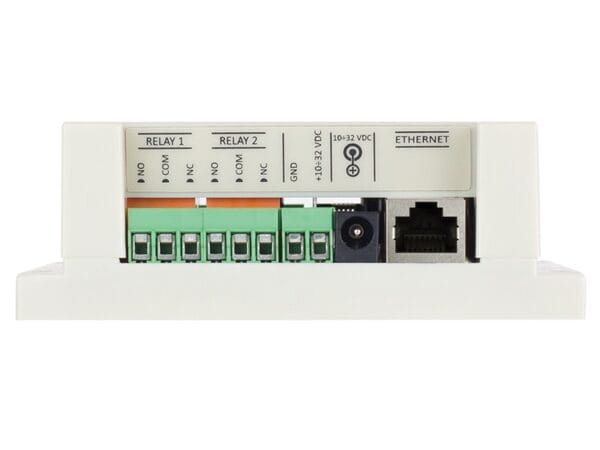

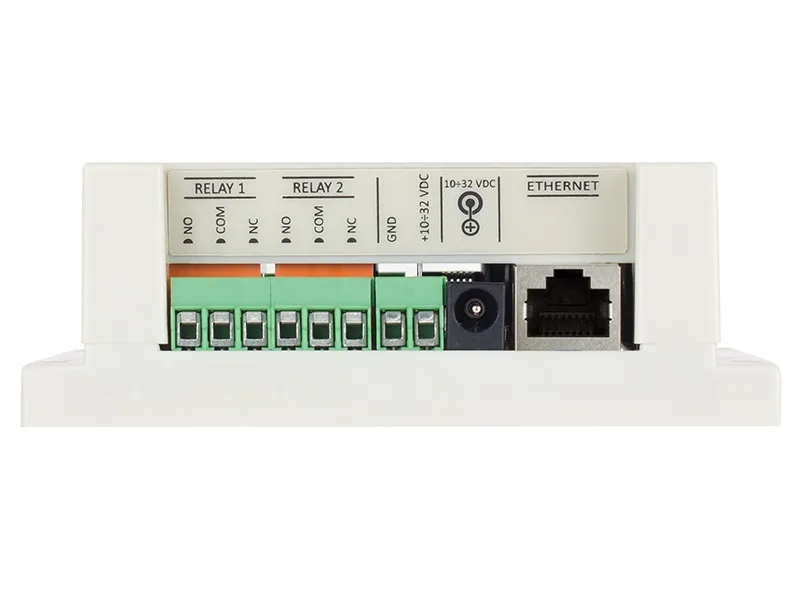

| Relay Outputs | NO or NC contacts |
| Rating | 3A @ 24VDC or 30VAC |
| Internal Battery | CR1220 Back-up Lithium Battery |
| Power Supply | 10-28vDC |
| Power Consumption | 240mA @ 12vDC |
| Dimensions: | 115 x 90 x 40mm |
| Weight | 170g |
| Operating Temperature | -20 to -55°C (5-85%RH) |
| Warranty | 3 Years |
TCW220
£135.47
