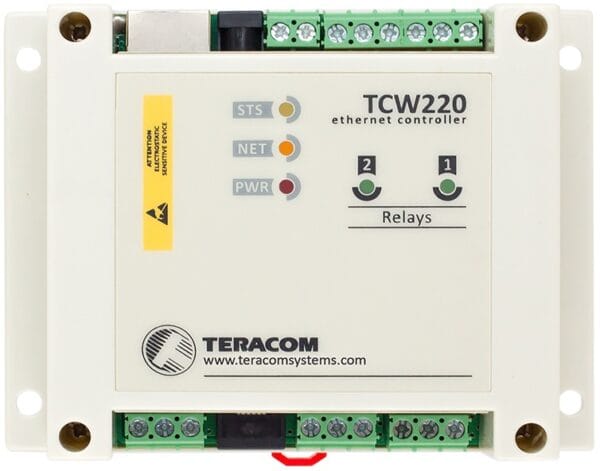

TCW220 Ethernet Data Logger with RJ45 Ethernet Port. Two (0-10V) Analogue and 2 Digital Inputs, plus up to 8 1-Wire sensors can be monitored. Two relay outputs (NC/NO) for local alarming or remote control. Internal memory for up to 52,000 records. Power supply 10-28vDC.
£135.47
The TCW220 is an Ethernet data logger for general data acquisition, featuring two 10-bit analogue inputs, two digital inputs, and a 1-Wire interface for up to eight sensors (CO2, current, temperature, humidity, etc.). It also includes two Normally Open/Closed relays. All monitored parameters can be logged based on time or alarms, with a 36 day (minimum, 1-minute intervals) memory capacity. Logged data and real-time parameter values (in XML/JSON) can be periodically uploaded via HTTP POST.
The device supports remote relay control (WEB, SNMP, HTTP, Modbus TCP/IP) and local relay activation based on monitored parameters. It facilitates SCADA system development through HTTP POST command reception. Alarm notifications (email, SNMP trap) for up to five recipients and alarm status reports (HTTP POST with XML/JSON) are supported for all monitored parameters.
| Analogue Inputs | 0-10V Voltage |
| Digital Inputs | Dry Contact |
| Relay Outputs | NO or NC contacts |
| Rating | 3A @ 24VDC or 30VAC |
| Internal Battery | CR1220 Back-up Lithium Battery |
| Power Supply | 10-28vDC |
| Power Consumption | 240mA @ 12vDC |
| Dimensions: | 115 x 90 x 40mm |
| Weight | 170g |
| Operating Temperature | -20 to -55°C (5-85%RH) |
| Warranty | 3 Years |

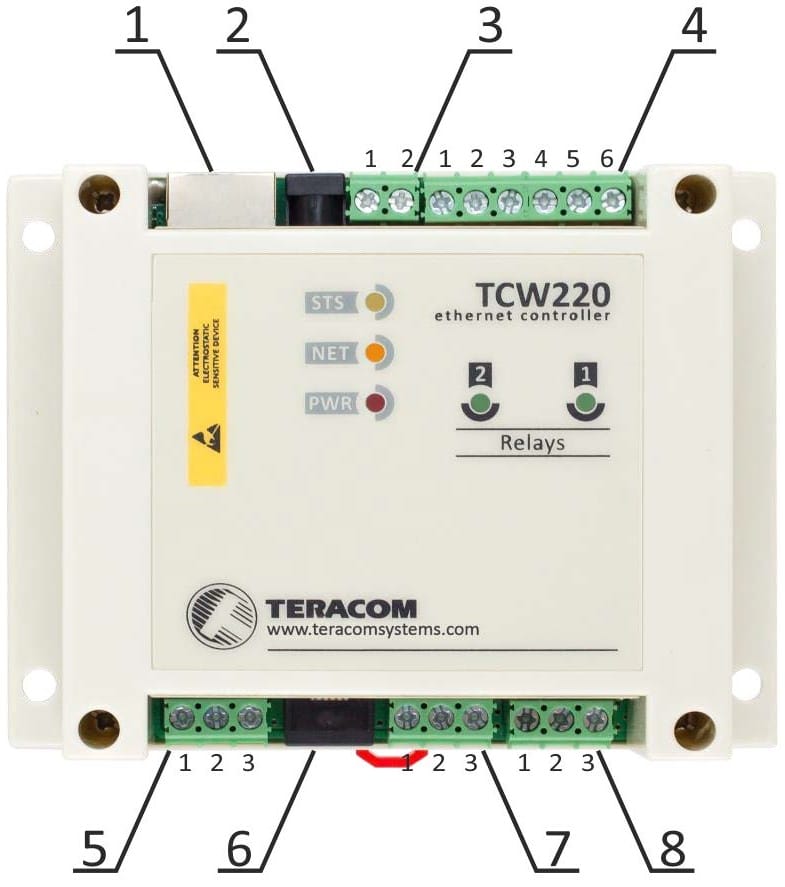

| Connector | Description | Connector | Description |
| Connector 1 | Ethernet – RJ45 | Connector 6, Pin 1 | Ground (Most Left) |
| Connector 2 | Power – 2.1×5.5mm connector, central positive | Connector 6, Pin 2 | Ground |
| Connector 3, Pin 1 | Power +ve | Connector 6, Pin 3 | 1-Wire Data |
| Connector 3, Pin 2 | Power -ve | Connector 6, Pin 4 | 1-Wire Ground |
| Connector 4, Pin 1 | Normally Closed Relay 2 | Connector 6, Pin 5 | 1-Wire +VDD |
| Connector 4, Pin 2 | Common Relay 2 | Connector 6, Pin 6 | 1-Wire +VDD (Most Right) |
| Connector 4, Pin 3 | Normally Open Relay 2 | Connector 7, Pin 1 |
Digital In 1 |
| Connector 4, Pin 4 | Normally Closed Relay 1 | Connector 7, Pin 2 | Ground |
| Connector 4, Pin 5 | Common Relay 1 | Connector 7, Pin 3 | Digital In 2 |
| Connector 4, Pin 6 | Normally Open Relay 1 | Connector 8, Pin 1 | Analogue In 1 |
| Connector 5, Pin 1 | 1-Wire Ground | Connector 8, Pin 2 | Ground |
| Connector 5, Pin 2 | 1-Wire Data | Connector 8, Pin 3 | Analogue In 2 |
| Connector 5, Pin 3 | 1-Wire +VDD |
