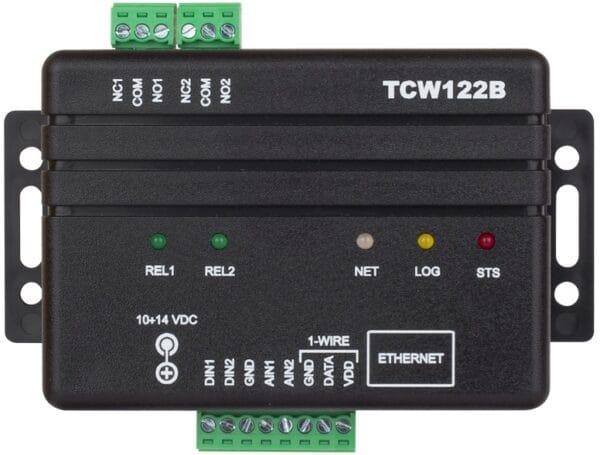

TCW122B-RR Remote Relay Control Module with RJ45 Ethernet Port. Two Digital Inputs and Two Relay Outputs (NO/NC contacts). Power supply 10-14vDC.
£74.41
The TCW122B-RR is a network-enabled relay controller with a web server interface for easy configuration. It provides two digital inputs for monitoring external on/off states and two relays for remotely switching devices (offering both normally open and normally closed wiring options). Using its “Client” or “Server” modes, it can send the status of its inputs to another device and react to the input status of that device. This allows you to remotely activate relays based on input changes, effectively extending a digital signal to a different location on the local network, or the Internet, without constant browser interaction.
| Digital Input | Non-Isolated Dry contact, Max 5.5vDC. |
| Relay Output | NO or NC contacts |
| Rating | 3A @ 24VDC or 30VAC |
| Mechanical Endurance | 10 million operations |
| Power Supply | 10-14vDC |
| Power Consumption | 200mA :@ 12vDC |
| Dimensions: | 109 x 82 x 32mm |
| Weight | 110g |
| Operating Temperature | -20 to -55°C (5-85%RH) |
| Warranty | 3 Years |
| Connector | Description |  |
| Connector 1 | Power – 2.1×5.5mm connector, central positive | |
| Connector 2, Pin 1 | Digital input 1 (Din1)* | |
| Connector 2, Pin 2 | Digital input 2 (Din2)* | |
| Connector 2, Pin 3 | Ground | |
| Connector 2, Pin6 | Ground | |
| Connector 2, Pin 4, 5, 7 & 8 | Not used | |
| Connector 3 | Ethernet – RJ45 | |
| Connector 4, Pin 1 | NC Relay1 | |
| Connector 4, Pin 2 | COM Relay1 | |
| Connector 4, Pin 3 | NO Relay1 | |
| Connector 5, Pin 1 | NC Relay2 | |
| Connector 5, Pin 2 | COM Relay2 | |
| Connector 5, Pin 3 | NO Relay2 |
