Description

The TCM-3010 is compatible with the RTR505B, RTR505BL and TR-55i-TC loggers. The TCM-3010 is supplied with a 52mm cable, but can be extended up to 3m using the TR-3C30 extension cable.

Specifications

Compatible Sensors: Thermocouples: Type K, J, T or S.
Sensor Connection: Miniature Thermocouple Connector: Type K, J, T or S.
Measurement Range: Type K: -199 to 1370 °C
Type J: -199 to 1200 °C
Type T: -199 to 400 °C
Type S: -50 to 1760 °C
Within the sensor heat-durability range only
Measurement Accuracy: (*1) Thermocouple Measurement (t = absolute value of measurement in °C)
Type K, J, T: ±(0.3 + 0.003 × t) °C
Type S: ±(1.0 + 0.003 × t) °C
Cold Junction Compensation: ±0.3 °C at 10 to 40 °C, ±0.5 °C at -40 to 10 °C, 40 to 80 °C
Measurement Resolution: Type K, J, T: 0.1 °C
Type S: 0.2 °C
Operating Environment: Temperature -40 to 80°C, Humidity 90%RH or less (no condensation)
Sensor Connection: Make sure to use a thermocouple sensor with a miniature thermocouple plug attached.

*1: For TCM-3010, sensor inaccuracies are not included.

The specifications listed above are subject to change without notice.

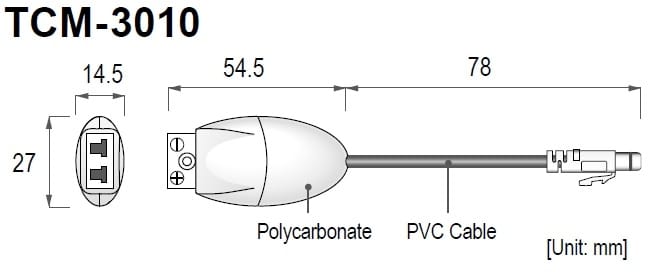

Technical Drawing

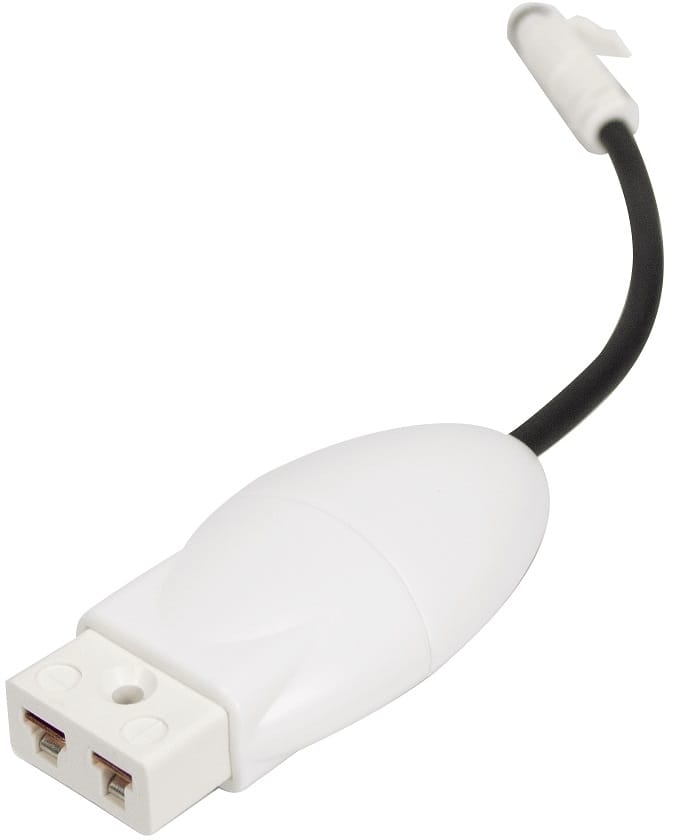

TCM-3010 Thermocouple Input Module
