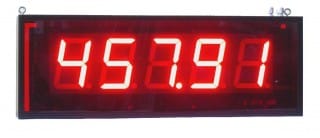

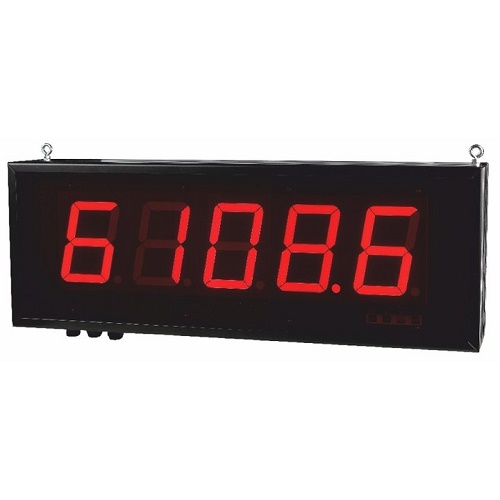

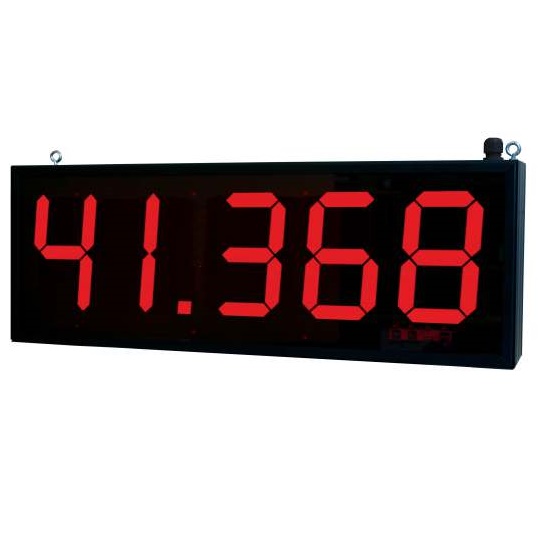

SWS-W510 Large Digit Panel Indicator

Large-size (100mm high digits) simple digital panel indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link

Need help finding the right product?

Downloads

SWS-W510 Large DIgit Display

Description

The SWS-W510 is a simple digital panel indicator. It was designed to work with the SRP range of displays, but will work with any RS485 Modbus RTU Protocol device to display any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link.

The device has 4 buttons being used for main presets programming, which are mounted under a transparent cover to improve the overall protection level. The presets can be changed via the SIR-15 IR programmer, available separately, allowing the user to change presets without opening the cover. The SIR-15 Remote controller keyboard is equivalent to the device keyboard. Modbus RTU protocol is used to communication with device. The transmission speed is user defined in 1200 – 115200 baud range, as is the display brightness which can be adjusted in 8 steps.

Specifications

Power supply: 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
External fuse (required): T – type, max. 2 A
Power consumption:



85 – 260V AC/DC and 16 – 35V AC power supply: max. 11 VA;
19 – 50V DC power supply: max. 8 W
Display: LED, red, 5 x 100 mm, with 8-step adjustment of brighness
Displayed values range:



5 digits (-9999 ÷ 99999 plus decimal point) or any of
character indication in range of 7-segments display
Sensor supply output: 24V DC +5%, -10% / max. 100 mA
Communication interface: RS-485, 8N1 and 8N2, Modbus RTU, not galvanically isolated
Transmission speed: adjustable in range from 1200 to 115200 bit/sec
Data memory: non-volatile memory, EEPROM type
Operating temperature: 0°C to +50°C
Storage temperature: -10°C ÷ +70°C
Protection class: IP 30
Case: Wall-mounted
Case material: Aluminium + Methyl Polimethacrylate
Case dimensions: 578 x 208 x 102 mm



Product

Ref

Price

Product Description

SWS-W510-0000-1-3-001

£400.66

Large-size (100mm high digits) simple digital panel indicator. Red LED Display shows up to 5 digits with 8 step adjustment of brightness. 24V AC/DC power supply with RS485 Modbus RTU communication. Programmable via front panel buttons or SIR-15 IR Programmer (available separately).

SWS-W510-0000-1-4-001

£409.20

Large-size (100mm high digits) simple digital panel indicator. Red LED Display shows up to 5 digits with 8 step adjustment of brightness. 85 – 260V AC/DC power supply with RS485 Modbus RTU communication. Programmable via front panel buttons or SIR-15 IR Programmer (available separately).

SIR-25

£41.84

IR remote controller for the Simex displays with IR Receivers and remote programming functions. Allows changes to settings without opening the protective case.
