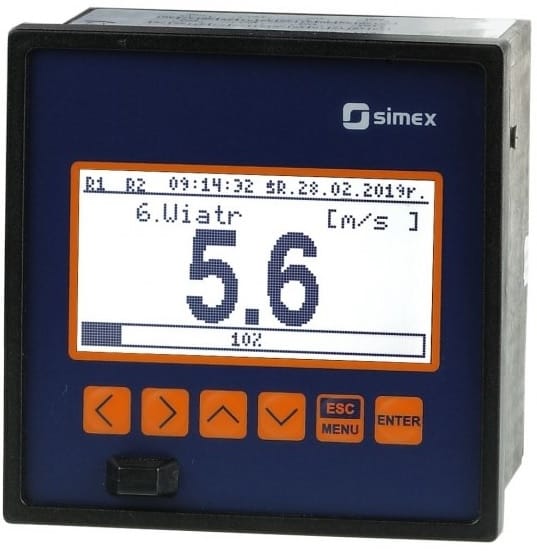

The SWP-99X Multi-channel Process indicator is designed to measure and display up to 8 channels of 0-20mA or 0-10V inputs. The LCD allows up to 8 channels to be displayed at any one time and also the trend of any channel for the preceeding 12 seconds up to 8 hours. The device is equipped with 2, 4 or 8 current inputs and 2 electronic relay outputs.
The SWP-99X display is designed for the presentation and measurement of current, or voltage, values from up to 8 input channels. Each channel can be individually identified with any measuring unit. The backlit LCD graphical display allows for visualization of the values from all 8 channels simultaneously. A significant advantage is the possibility of viewing the trends in each measuring channel as the graphs for a period of the last 12 seconds to 8 hours. Each device is equipped with electronic relay outputs that can be used to control external devices. There are icons on the screen signalling the status of the outputs. The meter can be configured using a local keyboard or free S-Toolkit software via the RS485 or USB PC communications port.
| Inputs: | 0/4-20mA (input resistance 100 Ω), 0/1-5V, 0/2-10V (input resistance 60 kΩ), common earthing |
| No. Inputs: | 2, 4 or 8 Input Channels |
| Sampling Rate: | 8sps |
| Accuracy: | 0.1% @25°C ± one digit (for 0-20 mA and 0-10 V range) |
| Outputs: | 2 electronic relays, NO type (ER1, ER2) with max. load 24V AC (35V DC) / 200 mA, overload protection |
| Display: | Graphic LCD, 128 x 64 points, with backlight (amber or white) |
| Display Range: | ± 9999 + decimal point |
| Power Supply: | 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC. Consumption: 7 VA Typical; 12 VA Max |
| Sensor Supply: | 24V DC +5%, -10% / max. 100 mA, stabilized |
| Comms Interface: | RS485, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (isolated from measuring inputs) |
| Operating Temp: | 0 to +50°C, optional -20 to + 50°C |
| Storage Temp: | -10 to +70°C |
| Case Material: | NORYL- GFN2S E1 |
| Case Dimensions: | 96 x 96 x 100 mm |
| Panel Cut-out Dims: | 90,5 x 90,5 mm |
| Installation Depth: | min 102 mm |
| Protection Class: | IP 65 (front), available options: additional IP 65 frame for panel cut-out sealing; IP 20 (case and connection clips) |
