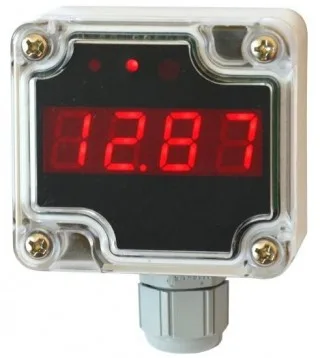

The Simex SWE-N55L is a compact, ultra-efficient loop-powered digital indicator designed for local process visualisation without the need for an external power supply. By drawing its operating power directly from the 4-20 mA current loop, it simplifies field installations in remote or hard-to-reach locations. Housed in a durable IP65 wall-mount case, it features a clear 4-digit (13mm) red LED display capable of displaying values from -999 to 9999. The device is highly adaptable, supporting linear, square root, and user-defined characteristic curves (up to 20 points), making it ideal for flow, level, and pressure monitoring. With an optional bi-stable relay for basic signalling and full programmability via an infrared remote, the SWE-N55L offers a professional-grade monitoring solution in a small, 64 x 58 mm footprint.
Features
- Loop Powered Digital Display (Max voltage drop 7V)
- 4-digit Red LED Display
- Optional Alarm Output Relay.
- Peak Value Detection
- Programmable via Optional SIR-25 IR Remote Controller
Specifications
| Power Supply | from input, max voltage drop 7V |
| Input | 4-20mA, overload protected up to 50mA |
| Display | Red LED, 4 x 13mm high |
| Display Values | -999 to 9999 plus decimal point |
| Output | 1 x Bistable Relay, switching delay about 4 secs. |
| Accuracy | 0.1% @ 25°C |
| Enclosure | ABS, Polycarbonate Wall-mounted enclosure. |
| Case Dimension | 64 x 82 x 36mm with gland, 64 x 73 x 36mm with M12 connector. |
| Connection Options | M16 x 1.5 (Std); M12 socket, 5-pin + straight cable plug (option) |
| Operating Temp | 0 to 50°C (-20 to +70°C Optional) |
