Description

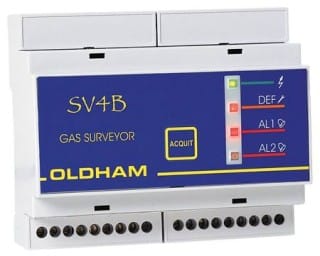

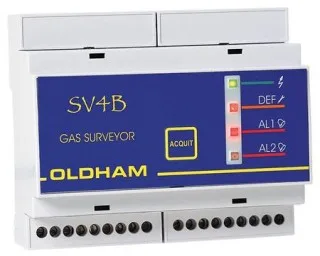

The SURVEYOR 4B has been designed as a monitoring apparatus for ensuring the safety of boiler plants, battery charging rooms or small units where your operations are at risk due to possible escape of flammable gas leaks.

Developed for the purpose of quick safe detection, the SURVIVOR 4B control module combines highly reliable monitoring, simple implementation and low costs.

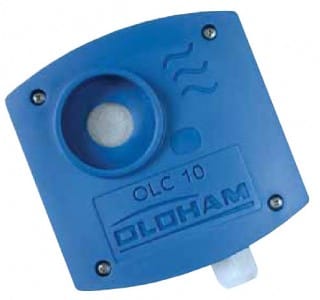

The SURVEYOR 4B is designed to allow easy integration simply by clicking it into place on an existing equipment cabinet near your control devices. The SURVEYOR 4B is linked to detectors set up in the area to be monitored

Simple ergonomics, greater safety

• EASY TO INSTALL
• MAXIMUM SAFETY
  • The measuring line and the detector are monitored in continuous mode by a special circuit which gives warning of any failure.
  • The siren, revolving light or modem, etc., are actuated by dry contacts.
  • The relay can only be reset by acknowledgement in manual mode after the gas alarm has been cleared (automatic acknowledgement on option).
• GREATER SAFETY
  • Faliure: yellow
  • Gas: 1st threshold : red
  • Gas: 2nd threshold: red
  • Integrated audio alarm.
• COMPLIANCE WITH STANDARDS
  • CE and Low – Voltage Directive

Technical Characteristics
Manufacturer	Oldham SA	Miscellaneous	Technology: SMC (surface Mounted Components).
Type	Surveyor 4B		Main power indicator light: green LED
Function	Flammable gas detector		Housing: NORYL
Capacity	1 channel, 1 or 2 detectors		Warranty: 1 year
Measurement	Continuous	Dimensions	105 x 90 x 60mm
Visual Alarms	Failure: yellow	Weight	0.360kg
	Gas, 1st threshold: red	Complience	CE and Low-voltage directive
	Gas, 2nd threshold: red		AFAQ ISO 9001
Audio alarm	Integrated
Acknowledgement	Manual or automatic
Power Supply	AC 230v (207 to 242v)
	DC 12v (11.5 to 14v)
Consumption	5vA or 4W (detector connected)
Protection	By fuse
Relays	Relay 1: common, gas and failure
	Relay 2: gas
Contact	RCT, relay 1
	RCT, relay 2
Max resistive breaking capacity	2A / 230v AC / 30v DC
Measuring Line	Shielded cable, 3 active conductors
	Max line length: 40m (with 1.5 mm2) conductor
	Max. loop resistance: 1.4ohm
Mechanical Features	Mounting on symmetrical DIN rail
