Description

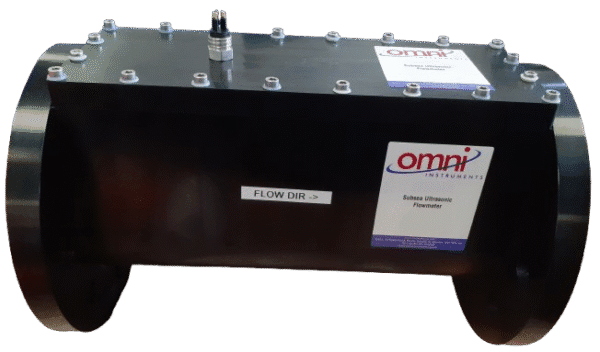

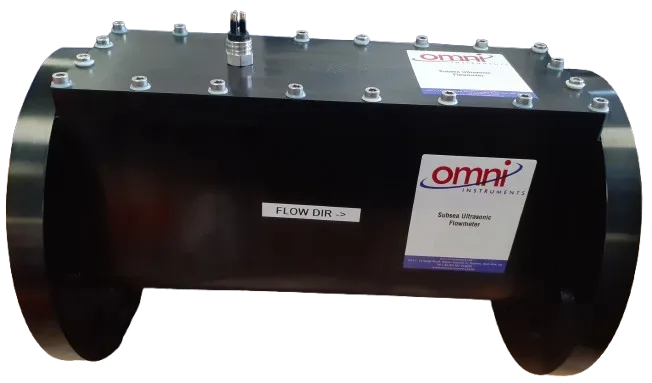

The Omni Instruments Subsea Ultrasonic Flow Meter is a fully bespoke, made-to-order measurement solution engineered for the precision monitoring of clean fluids in extreme deep-sea environments up to 3000 metres. Specifically designed for subsea manifolds and ROV-led operations, this transit-time meter is built to unique client specifications with an optimised bore range of 1″ to 5″ to ensure stable laminar flow and high-integrity sensor performance. Customers can define every critical parameter—from base materials (316 Stainless Steel or Anodised Aluminium) and custom process threads to specialised internal coatings and hydrostatic pressure testing protocols—ensuring a seamless fit into existing subsea infrastructure without the maintenance requirements of mechanical flow meters.
Features
- Ideal for clean liquid flow measurements
- Wide pipe size range (from 1″ to 5”)
- Non-invasive. No moving parts. No pressure drop
- Operating depth to 3000 metres seawater
- Pre-configured and set up. No programming required
- Measures velocity, volumetric and total flow
- RS485 MODBUS, 4-20mA and pulse (flow total) outputs
- Supplied with pressure test certificate
- Calibration certificate available for improved accuracy
| Repeatability | Better than 1% |
| Accuracy | Better than +/- 1% for velocity above 0.6ft/sec |
| Response Time | 0.5 sec |
| Signal Outputs | 4-20mA for flow rate, accuracy 0.1% |
| OCT output: pulse signal for accumulated flow rate (positive, negative and net rates); frequency signal for instantaneous f low rate (0~9,999Hz selectable) | |
| RS485 Output with MODBUS slave support | |
| Housing Material | 316 stainless steel or anodised aluminium |
| Media Types | Virtually all commonly used liquids (full pipe) |
| Liquid Temperature | -40 to +140 deg C |
| Suspension Concentration | < 1%, particle size smaller than 75um |
| Power Supply | 9-36v DC |
