Description

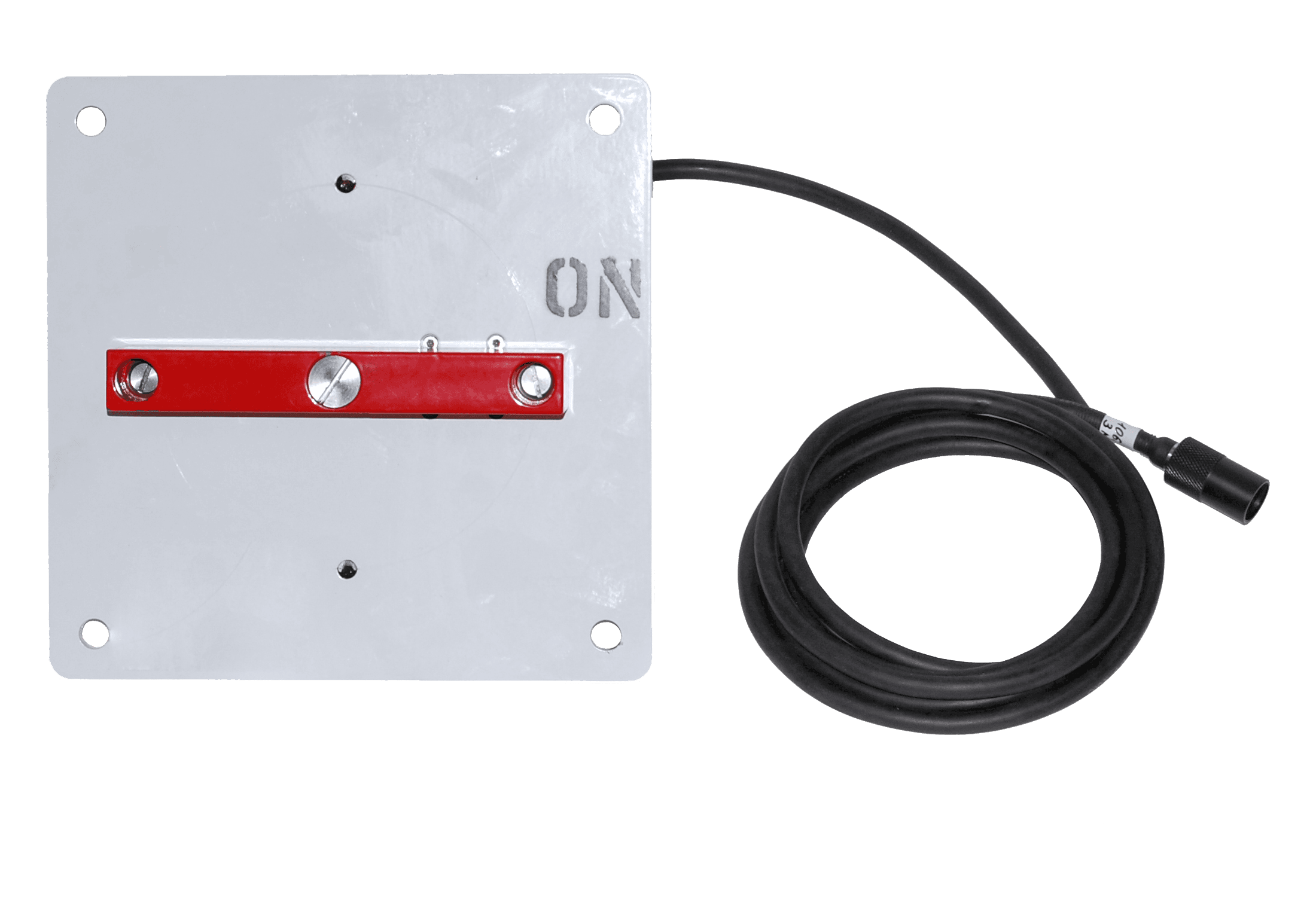

The SUBSEA-SW4-CRE is a subsea power switch is ideal for controlling an OceanDISP-2 subsea display. This allows the display to be powered only when visible to an ROV but ‘OFF’ otherwise. The square mounting plate is made of 316 stainless steel, with a rotating switch bar containing two permanent magnets. Upon rotation to the horizontal “ON” position, one of the two magnets align with a reed switch sensor housed in a stainless steel enclosure behind the mounting plate. Housing is wired to allow power and data to the OceanDISP-2 subsea display.

The stainless steel housing incorporates two Subsea bulkhead connectors, that connects the power supply to the main system. The SUBSEA-SW2 is provided with two 5m cable, one equipped with MCBH4M-SS for the power supply and the second with a MCBH5F-SS connectors to the main system. The entire switch assembly and connectors are rated for operation in seawater depths up to 4000 meters.

Features

• Subsea switch, designed for ROV operation
• Depth rating to 4000 metres seawater
• Large rotary arm makes switch contact in either horizontal position
• Positive action with indentations for on and off position
• Switch up to 24V at 500mA DC
• Non contact switching mechanism
• Designed specifically to control power and data to OceanDISP-2
• Wiring can connect data through housing
• Higher voltage/current ranges on request
• Custom switches can be designed to fit your requirements.

Specifications

If you require different specifications to the table above, please contact us to discuss your requirements. Subsea switches are made to order and customisation for your specific requirements would be available.
