Subsea logger schedule switch assembly comprising of square mounting plate 200 x 200 x 8mm, 316 stainless steel, with rotating switch bar (190 x 50 x 25mm), fitted with 2 permanent magnets. Subsea housing with proximity switch mounted behind the square switch assembly fitted with 1 x CRE BRA03F090018 3 pin F bulkhead connector . Includes 5m cable harness with 2 x CRE 3M pin male inline connectors to mate with switch and schedule change logger input.
£1,870.14

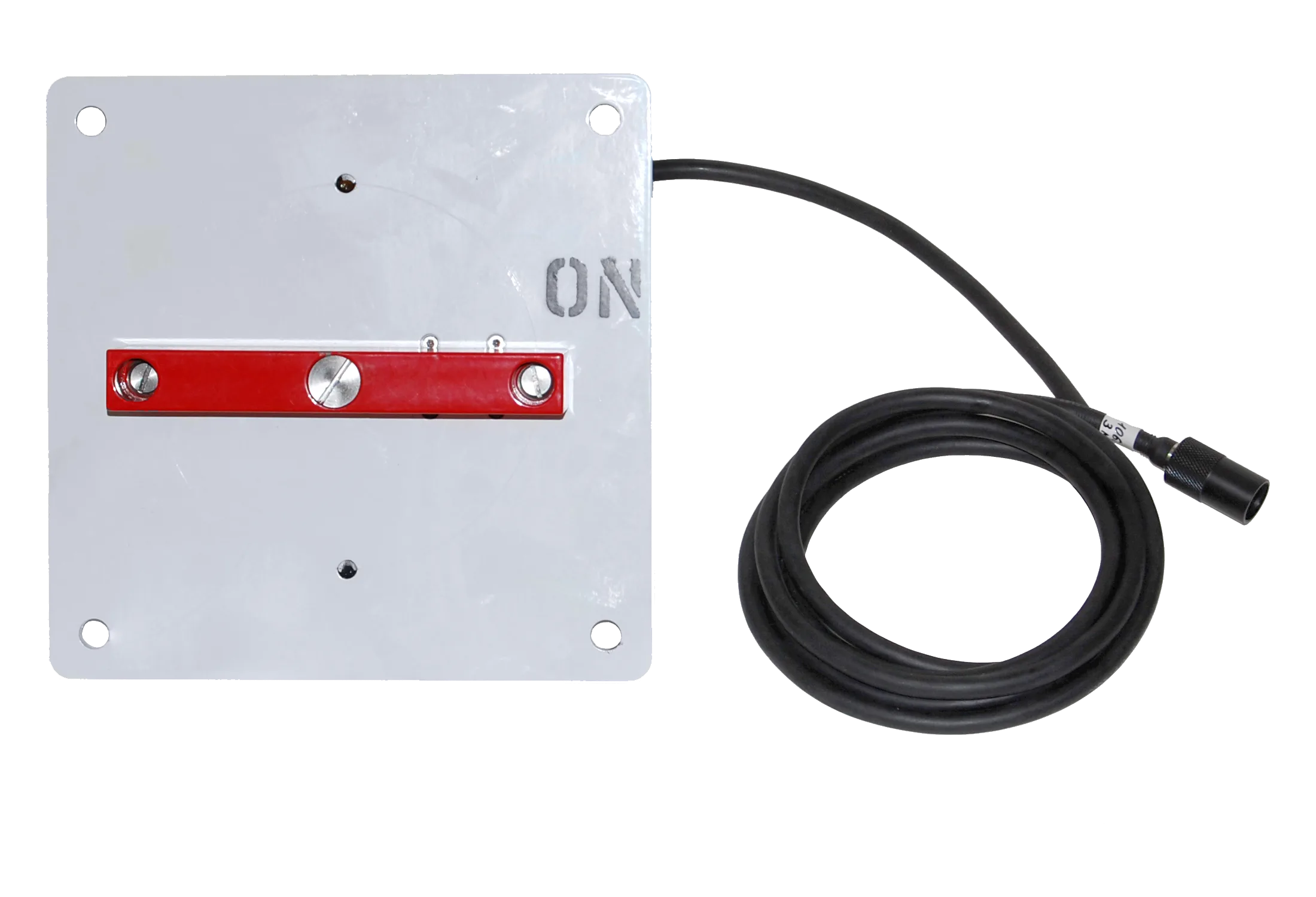

The SUBSEA-SW3-CRE subsea power switch is ideal for controlling power on a subsea sled, or small-scale subsea operating system. The square mounting plate is made of 316 stainless steel, with a rotating switch bar containing two permanent magnets. Upon rotation to the horizontal “ON” position, one of the two magnets align with a reed switch sensor housed in a stainless steel enclosure behind the mounting plate, activating a solid state relay. The relay is suitable for switching 24vDC up to 500mA. This can feed the power through the switch on low powered systems, or it can be used to active a larger relay in the main system that controls the power for higher voltage and current.
The stainless steel housing incorporates one Subsea bulkhead connectors. The SUBSEA-SW3-CRE is provided with a 5m cable, equipped with CRE 3-pin Subsea connectors. The entire switch assembly and connectors are rated for operation in seawater depths up to 4000 meters.
This switch is primarily designed as being used as an external power supply switch with one cable connection to the main subsea system that can be operated by an ROV.
| Version | SUBSEA-SW3-CRE |
| Power Rating | 24vDC @ 500mA |
| Mounting Plate | 200 x 200 x 8mm |
| Switch Bar | 150 x 50 x 25mm |
| Connectors | 3-Pin CRE Subsea Bulkhead |
| Cable | 5M with Mating Bulkheads |
| Switch mechanism | Magnet operated reed switch with solid state relay |
| Depth Rating | 4000 metres |
If you require different specifications to the table above, please contact us to discuss your requirements. Subsea switches are made to order and customisation for your specific requirements would be available.
